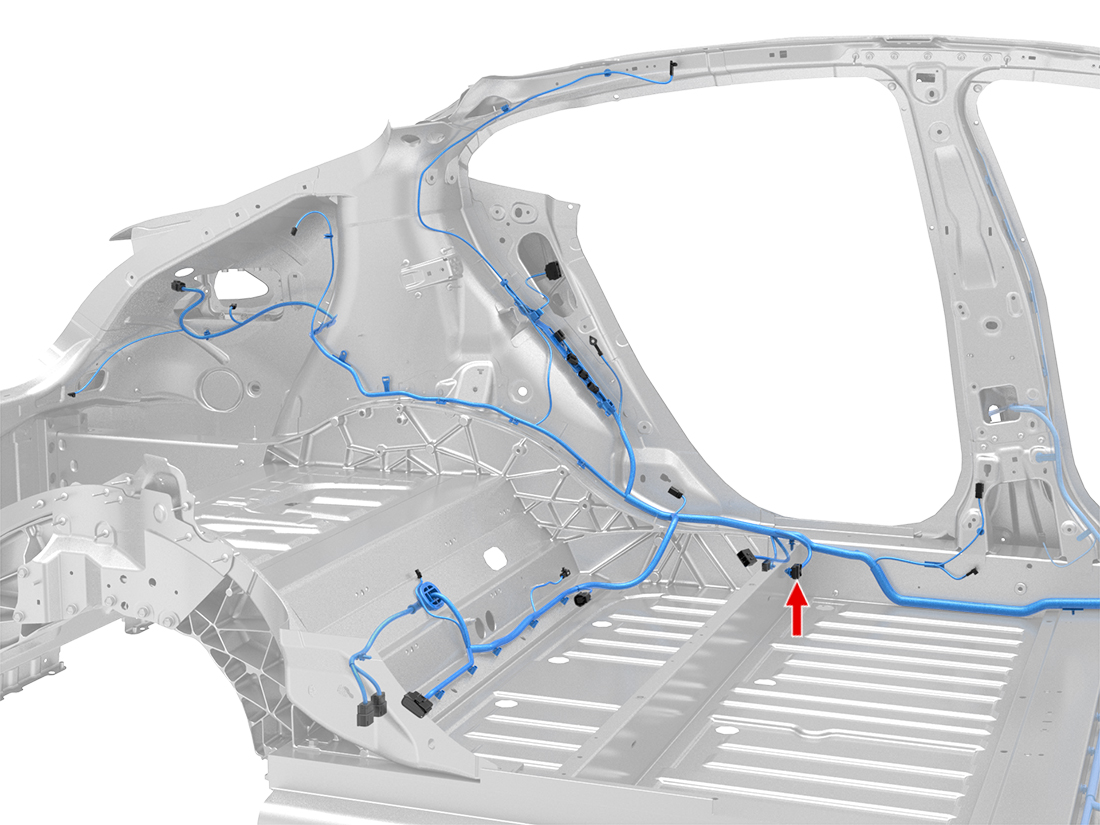

Location:
Connector Detail: Sumitomo 6098-3927
Color: BU
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 0.35 | SN | X036-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 2 | RD/WH | 0.35 | SN | X976F-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | RD/WH | 0.35 | SN | X044-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | RD/WH | 0.35 | SN | X049-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | GN/WH | 0.35 | SN | X915M-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | GN/WH | 0.35 | SN | X775-19 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | GN/WH | 0.35 | SN | X976F-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | VT/WH | 0.35 | SN | X911M-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | VT/WH | 0.35 | SN | X776-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | VT/WH | 0.35 | SN | X916M-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 12 | RD | 0.35 | SN | X036-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | RD | 0.35 | SN | X976F-14 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | RD | 0.35 | SN | X044-6 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | RD | 0.35 | SN | X049-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X915M-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | GN | 0.35 | SN | X775-8 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | GN | 0.35 | SN | X976F-15 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | VT | 0.35 | SN | X911M-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | VT | 0.35 | SN | X776-14 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | VT | 0.35 | SN | X916M-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 0.35 | SN | X036-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 2 | RD/WH | 0.35 | SN | X976F-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | RD/WH | 0.35 | SN | X044-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | GN/WH | 0.35 | SN | X910M-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | GN/WH | 0.35 | SN | X775-19 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | GN/WH | 0.35 | SN | X976F-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | VT/WH | 0.35 | SN | X911M-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | VT/WH | 0.35 | SN | X776-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | VT/WH | 0.35 | SN | X916M-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 12 | RD | 0.35 | SN | X036-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 13 | RD | 0.35 | SN | X976F-14 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | RD | 0.35 | SN | X044-6 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X910M-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | GN | 0.35 | SN | X775-8 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | GN | 0.35 | SN | X976F-15 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | VT | 0.35 | SN | X911M-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | VT | 0.35 | SN | X776-14 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 22 | VT | 0.35 | SN | X916M-10 | Sumitomo 8100-3625 | | 1099530-00-A | |
