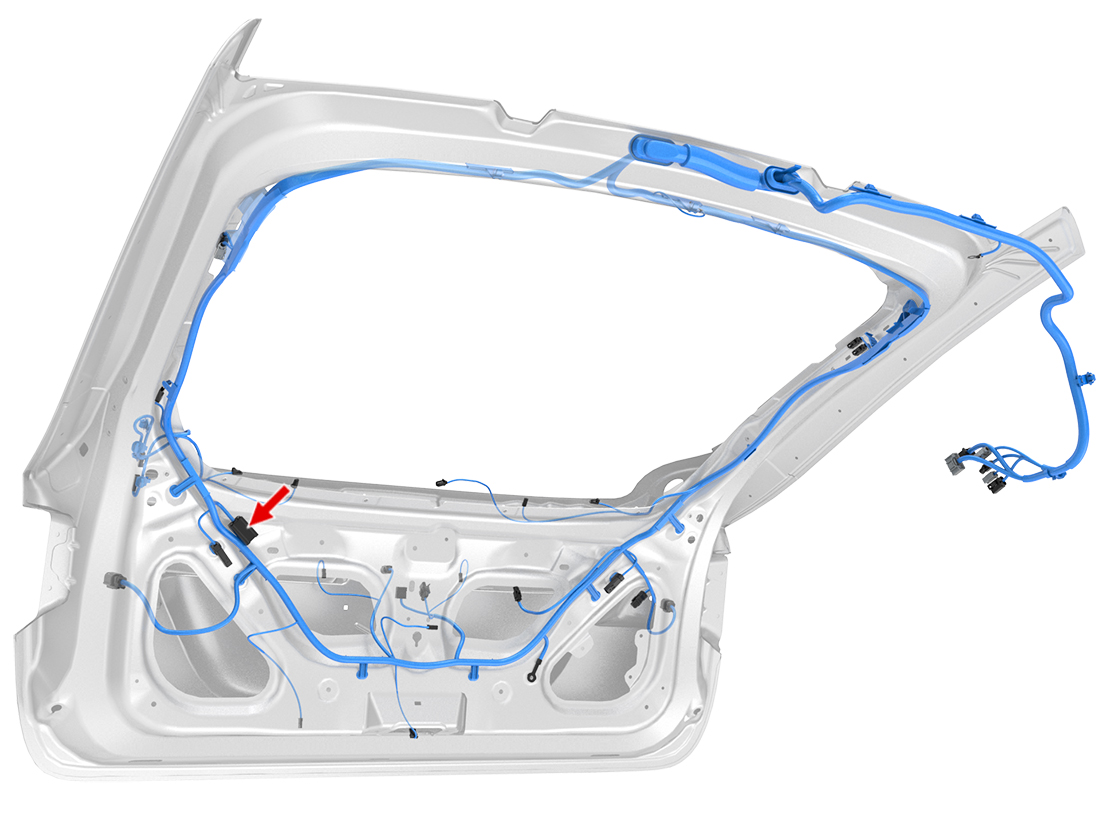

Location:
Connector Detail: Sumitomo 6098-5718
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 0.75 | SN | X587-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 2 | BU | 0.75 | SN | X588-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 3 | BU | 0.75 | SN | X954F-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 4 | GN | 0.75 | SN | X592-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 5 | GN | 0.75 | SN | X593-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 6 | GN | 0.75 | SN | X954F-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 7 | VT | 0.75 | SN | X587-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 8 | VT | 0.75 | SN | X588-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 9 | VT | 0.75 | SN | X954F-11 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 10 | BK | 0.75 | SN | X592-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 11 | BK | 0.75 | SN | X593-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 12 | BK | 0.75 | SN | X954F-12 | Sumitomo 8240-0213 | | 1099539-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 0.75 | SN | X587-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 2 | BU | 0.75 | SN | X588-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 3 | BU | 0.75 | SN | X954F-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 4 | GN | 0.75 | SN | X592-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 5 | GN | 0.75 | SN | X593-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 6 | GN | 0.75 | SN | X954F-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 7 | VT | 0.75 | SN | X587-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 8 | VT | 0.75 | SN | X588-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 9 | VT | 0.75 | SN | X954F-11 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 10 | BK | 0.75 | SN | X592-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 11 | BK | 0.75 | SN | X593-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 12 | BK | 0.75 | SN | X954F-12 | Sumitomo 8240-0213 | | 1099539-00-A | |
