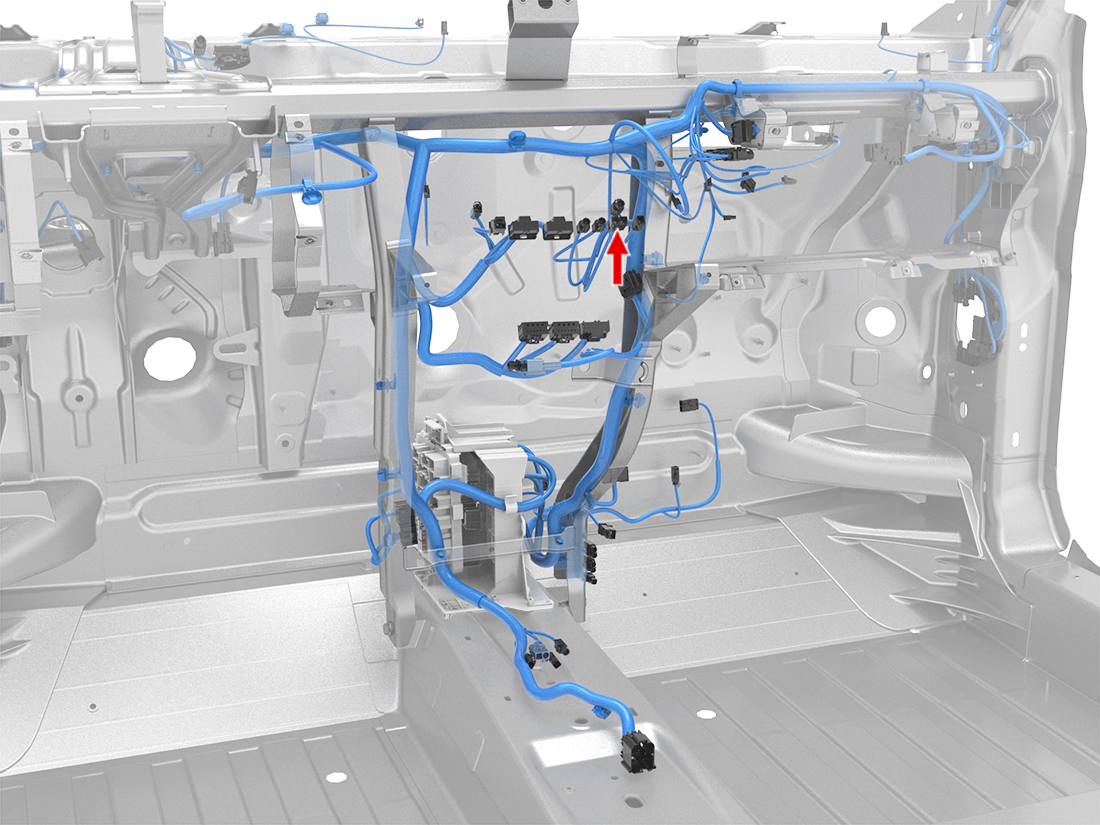

Location:
Location:
Connector Detail: Rosenberger 59Z115-000-D
Color: Bordeaux
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK | D302 | AU | X809M-1 | - | - | - | |
| 2 | BK | D302 | AU | X811F-2 | - | - | - | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK | D302 | AU | X810M-1 | - | - | - | |
| 2 | BK | D302 | AU | X811M-2 | - | - | - | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK | D302 | AU | X810M-1 | - | - | - | |
| 2 | BK | D302 | AU | X811M-2 | - | - | - | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BK | D302 | AU | X809M-1 | - | - | - | |
| 2 | BK | D302 | AU | X811F-2 | - | - | - | |
