X809M - s-rhd-sop10

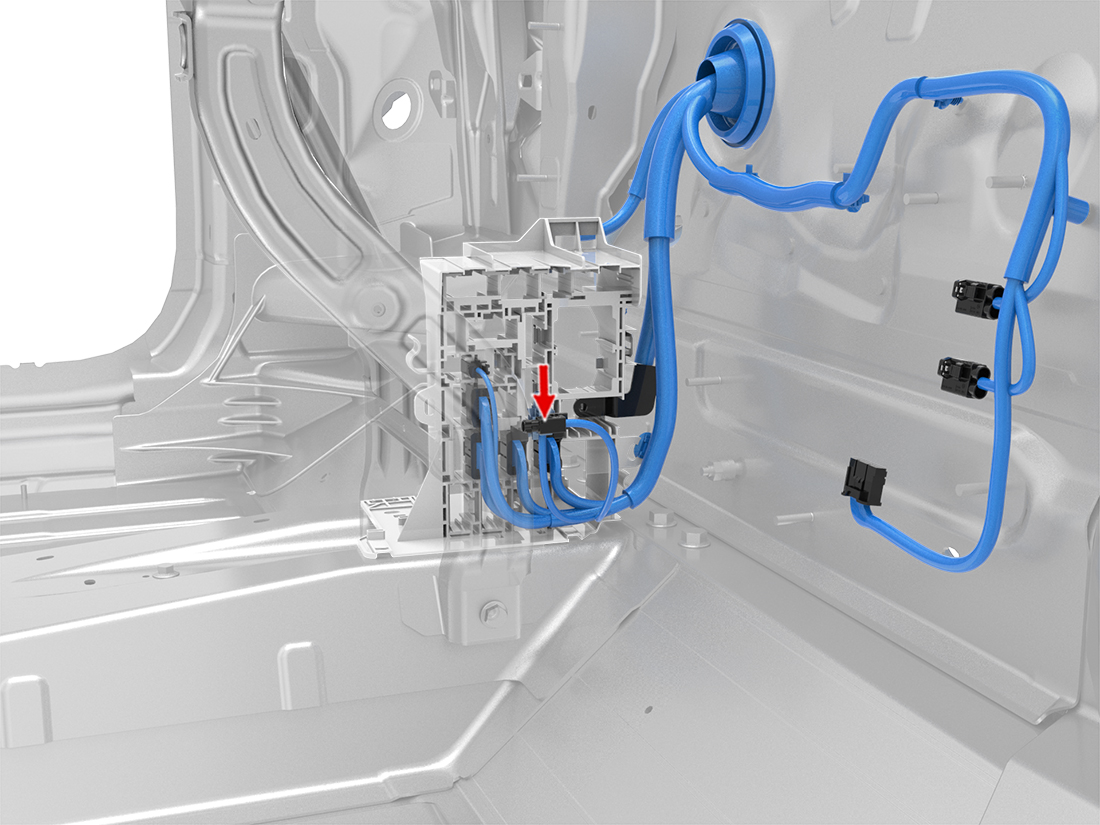

Location:
Location:
Connector Detail: Rosenberger 59Z118-C00-C
Color: BU
Serviceability: Cable Subassembly
Connector Detail: Rosenberger 59Z118-C00-D
Color: Bordeaux
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X802-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | X856-2 | - | - | - | ||
| 1 | BK | D302 | X856A-2 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | X856-2 | - | - | - | ||
| 1 | BK | D302 | X856A-2 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X802-1 | - | - | - |
