X811M - s-rhd-sop10

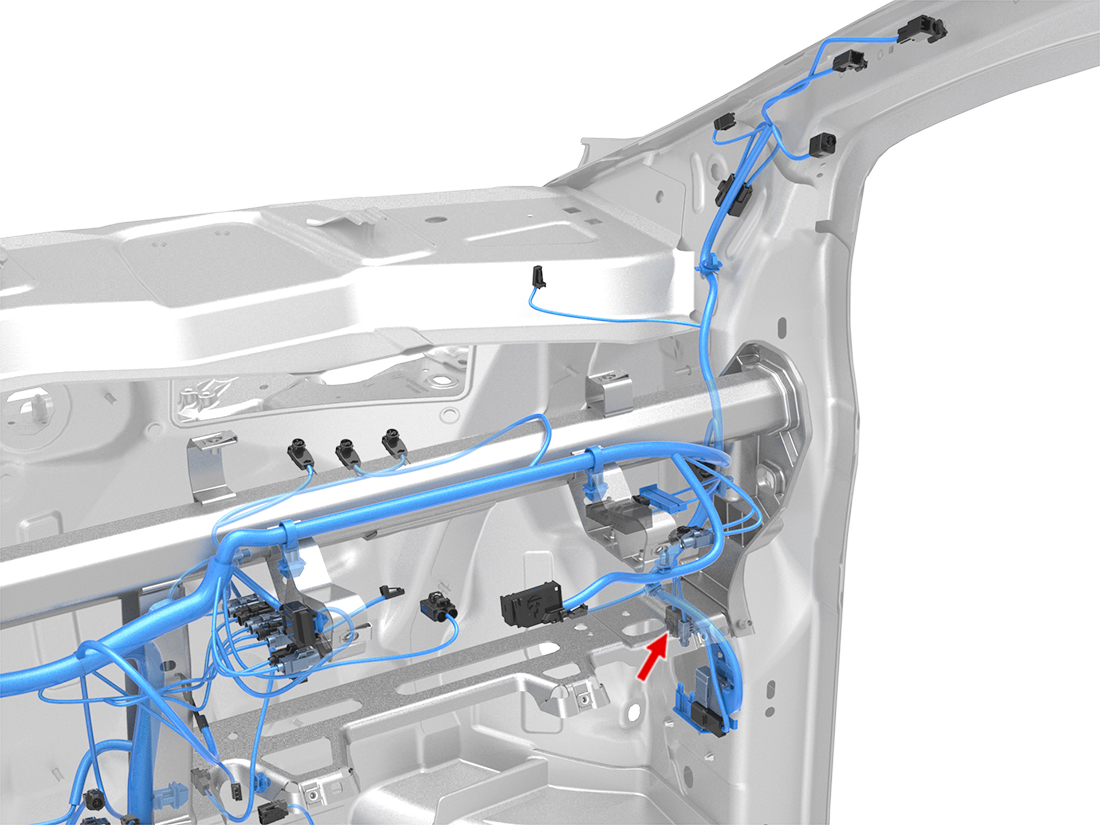

Location:

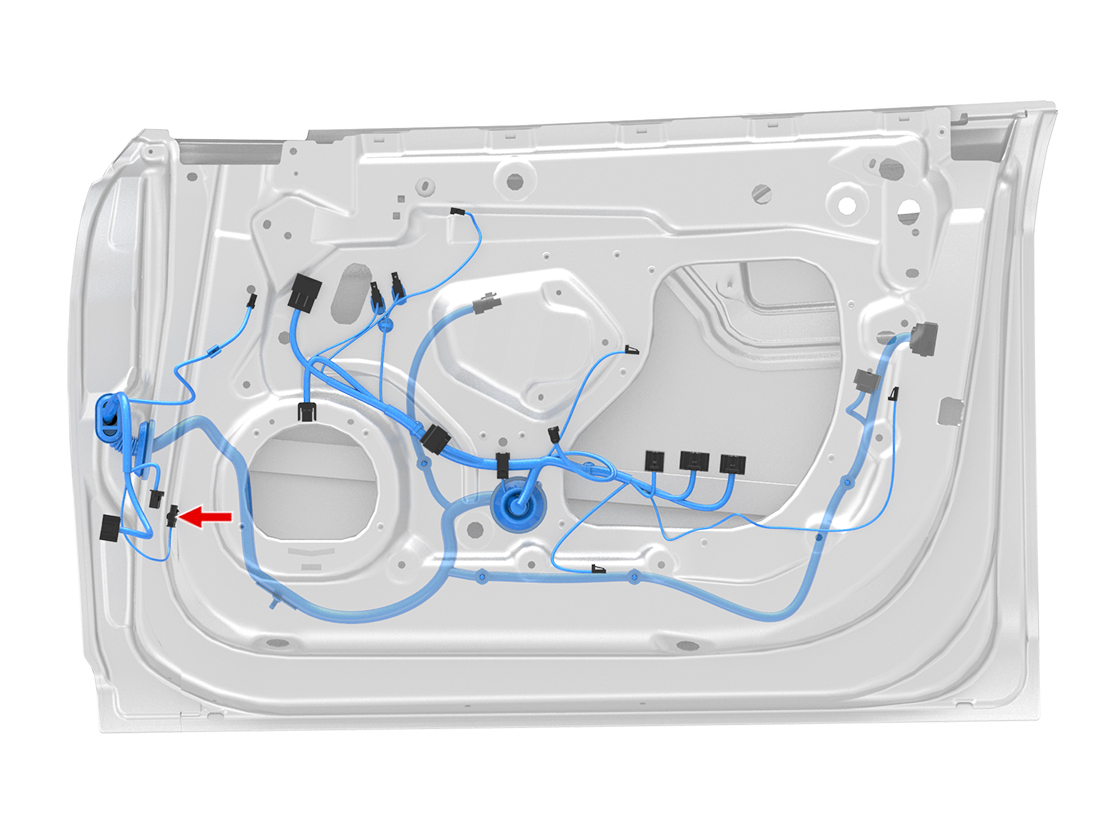

Location:
Connector Detail: Rosenberger 59Z115-000-C
Color: BU
Serviceability: Cable Subassembly
Connector Detail: Rosenberger 59Z116-000-D
Color: Bordeaux
Serviceability: Cable Subassembly
Connector Detail: Rosenberger 59Z120-C00-C
Color: BU
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | RG316 | AU | X818-1 | - | - | - | |
| 2 | BK | RG316 | AU | X817-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X804-1 | - | - | - | |
| 1 | BK | D302 | AU | X832-1 | - | - | - | |
| 2 | BK | D302 | AU | X802-2 | - | - | - | |
| 2 | BK | D302 | AU | X812-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X804-1 | - | - | - | |
| 1 | BK | D302 | AU | X832-1 | - | - | - | |
| 2 | BK | D302 | AU | X802-2 | - | - | - | |
| 2 | BK | D302 | AU | X812-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | RG316 | AU | X818-1 | - | - | - | |
| 2 | BK | RG316 | AU | X817-1 | - | - | - |
