X814M - s-rhd-sop10

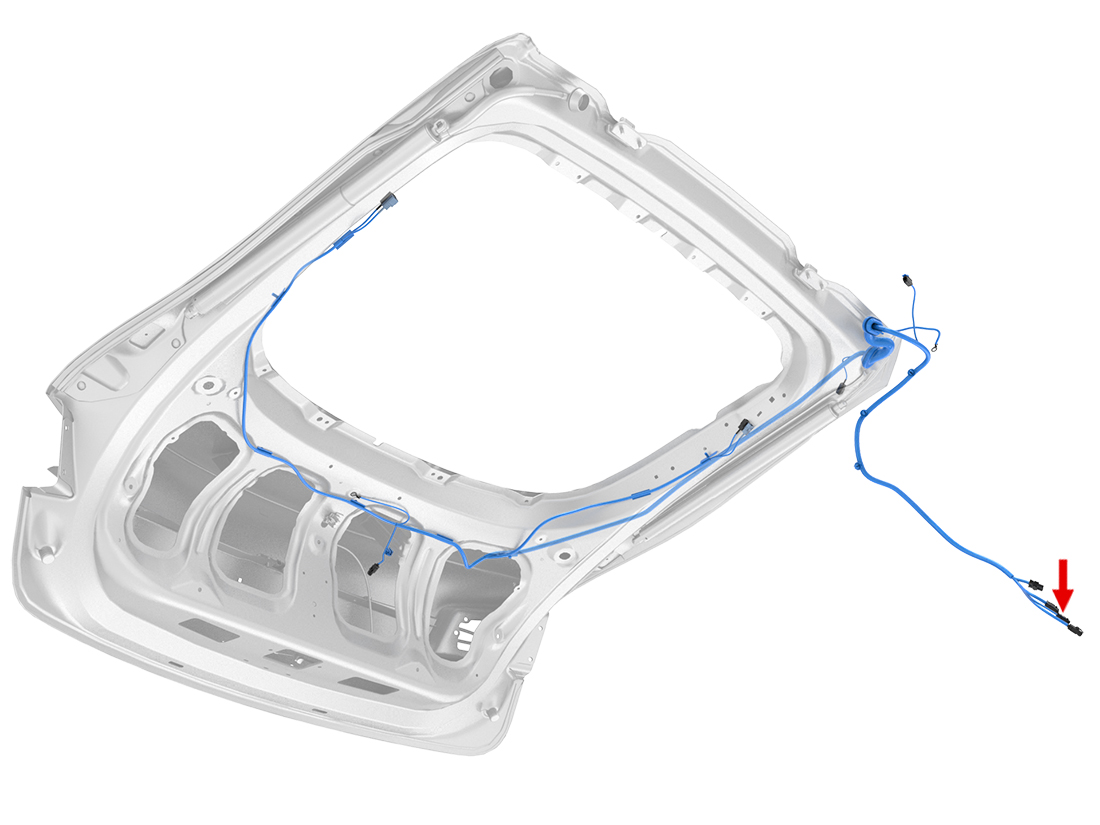

Location:

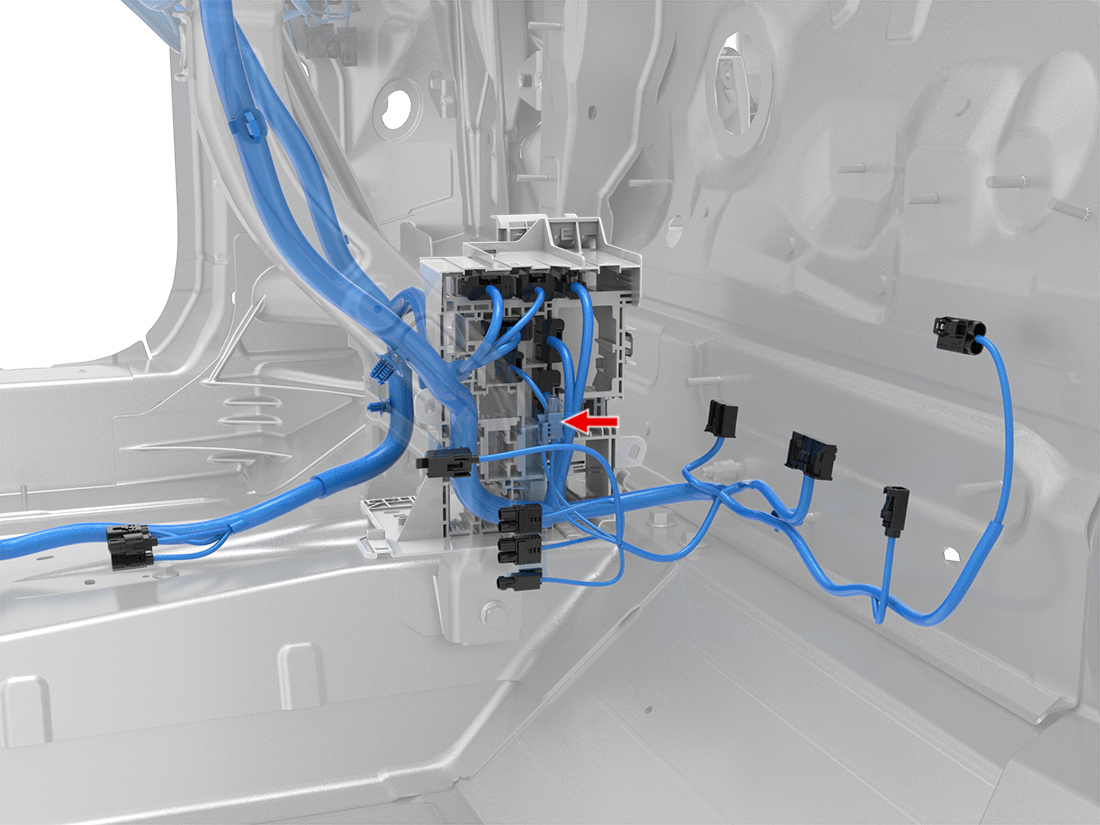

Location:
Connector Detail: Rosenberger 59Z114-000-K
Color: Curry
Serviceability: Cable Subassembly
Connector Detail: Rosenberger 59Z118-C00-K
Color: Curry
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | X821A-1 | - | - | - | ||
| 1 | BK | D302 | X821B-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X815-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | X821A-1 | - | - | - | ||
| 1 | BK | D302 | X821B-1 | - | - | - |
