X815 - s-rhd-sop10

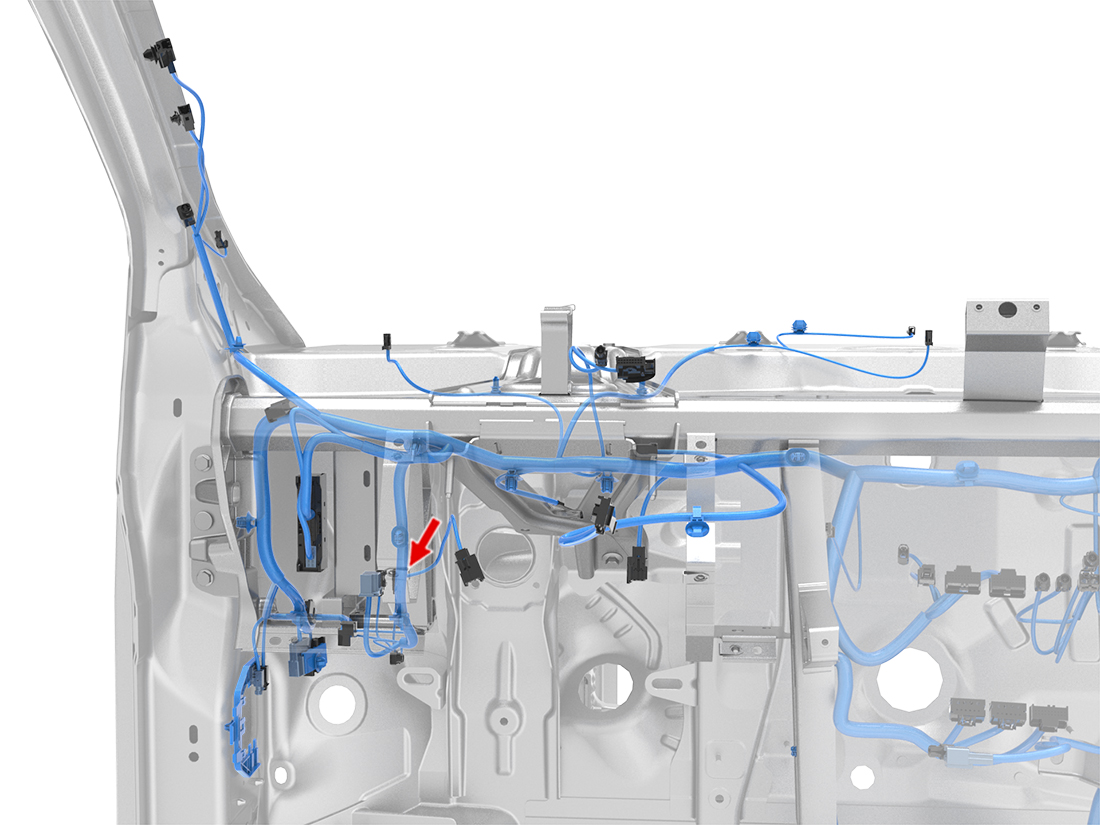

Location:

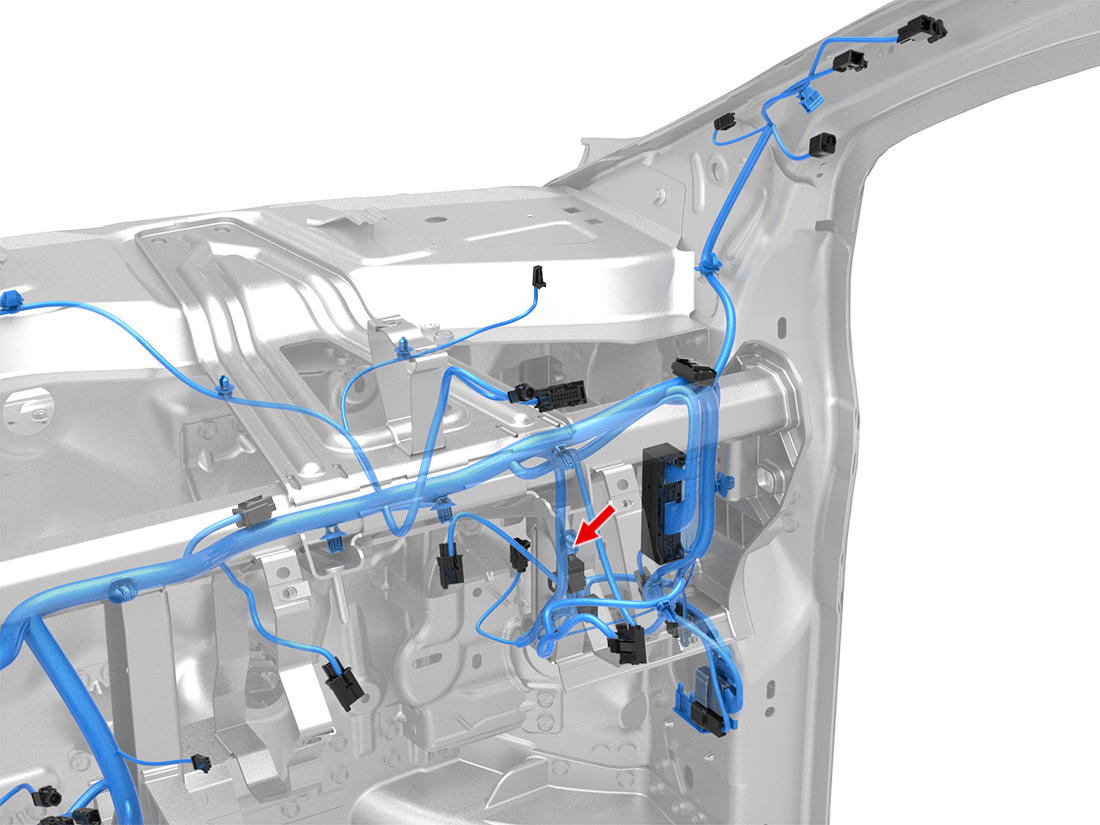

Location:
Connector Detail: Rosenberger 59Z113-000-K
Color: Curry
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X814M-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X813M-1 | - | - | - |
