X817 - s-rhd-sop10

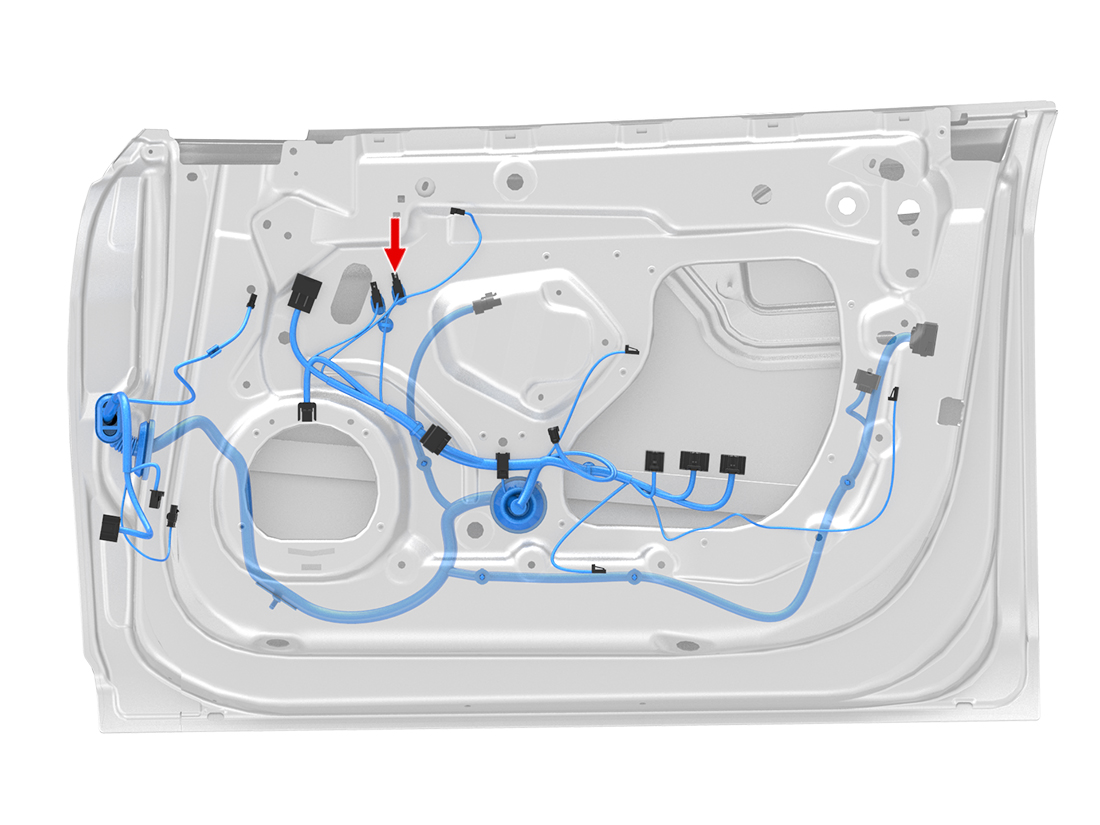

Location:
Location:
Connector Detail: ROSENBERGER 59Z006-T00-B
Color: WH
Serviceability: Cable Subassembly
Connector Detail: Rosenberger 59Z074-C00-H
Color: VT
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | RG316 | AU | X811M-2 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | RG316 | AU | X822F-2 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | RG316 | AU | X822F-2 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | RG316 | AU | X811M-2 | - | - | - |
