X819 - s-rhd-sop10

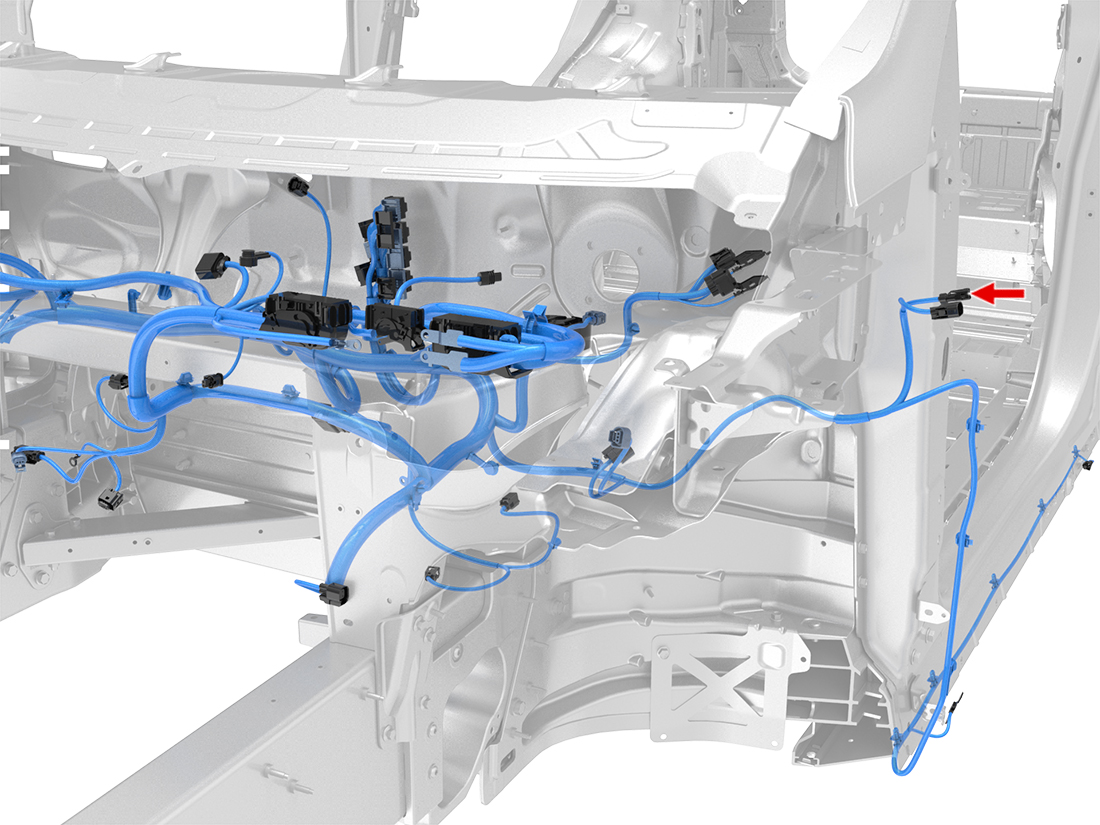

Location:

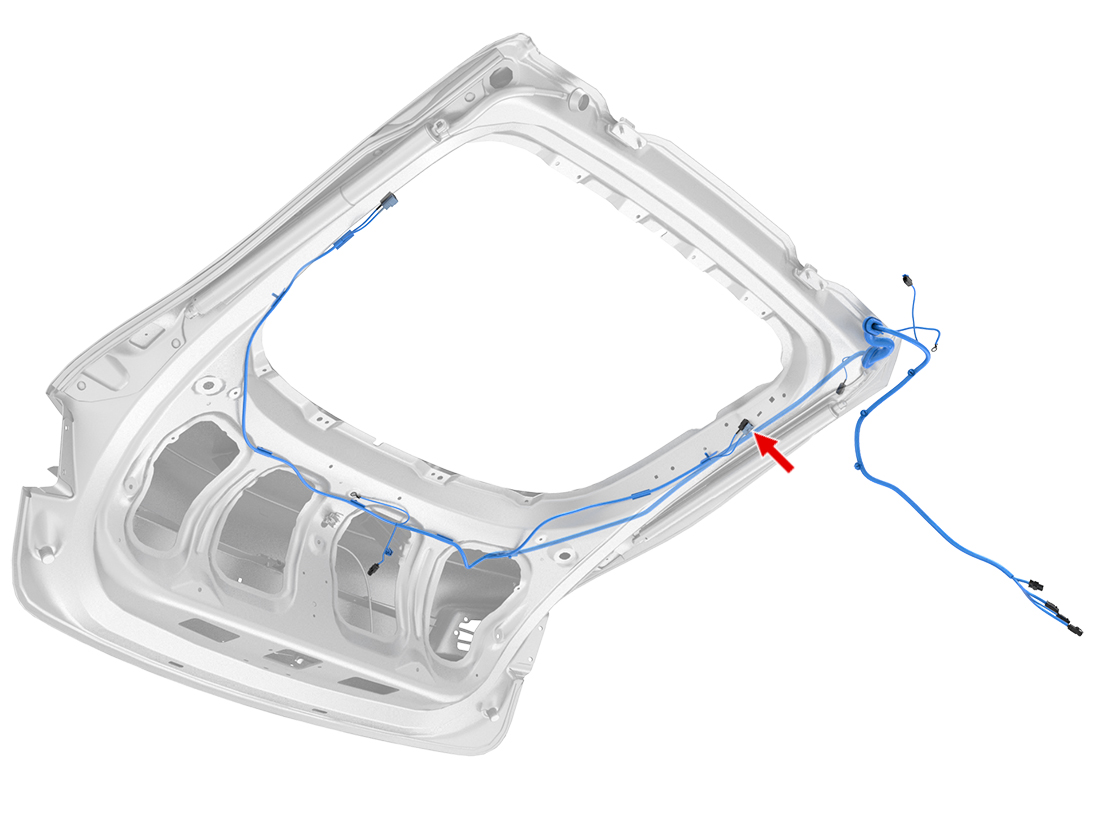

Location:
Connector Detail: Rosenberger 59Z113-000-B
Color: WH
Serviceability: Cable Subassembly
Connector Detail: Rosenberger 59Z163-000-F
Color: BN
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X812M-2 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X820M-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X820M-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X812M-2 | - | - | - |
