X832 - s-rhd-sop10

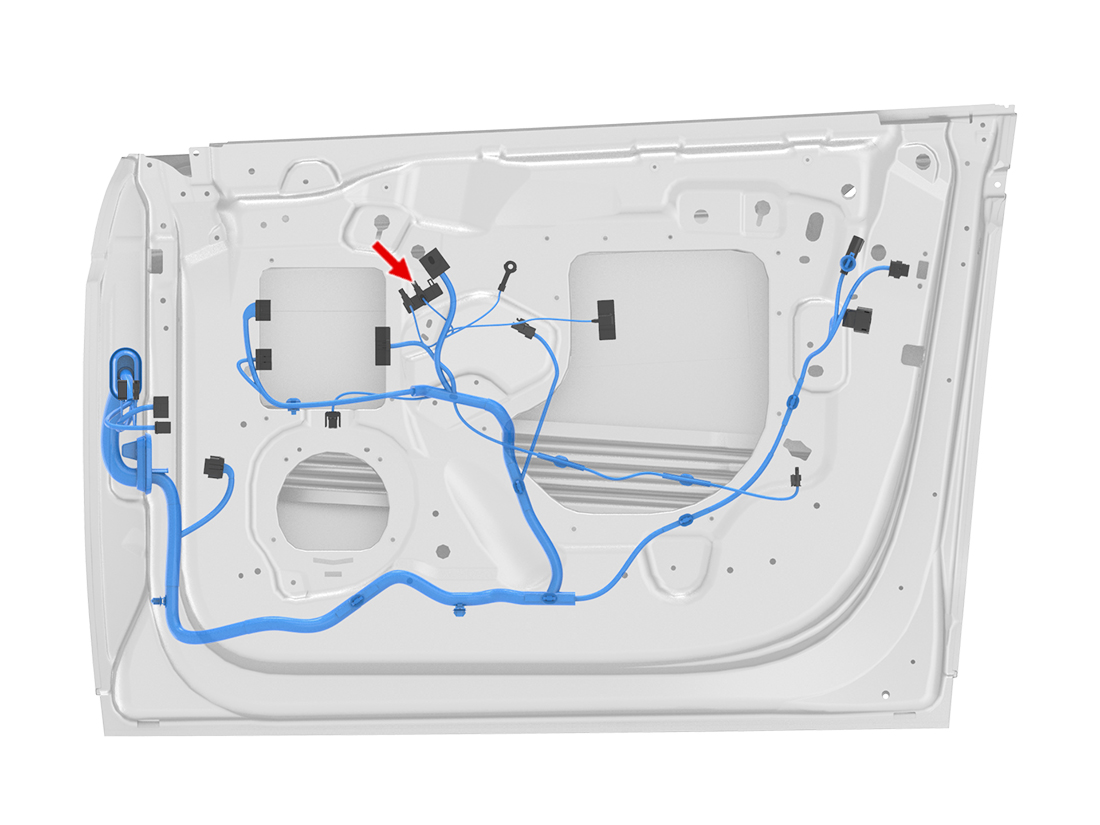

Location:
Location:
Location:
Connector Detail: Rosenberger 59K27D-1M4Z4-D
Color: Bordeaux
Serviceability: Cable Subassembly
Connector Detail: Rosenberger 59Z113-000-D
Color: Bordeaux
Serviceability: Cable Subassembly
Connector Detail: Rosenberger 59Z118-C00-I
Color: Beige
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X837-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X811M-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X811M-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X837-1 | - | - | - |
