X834 - s-rhd-sop10

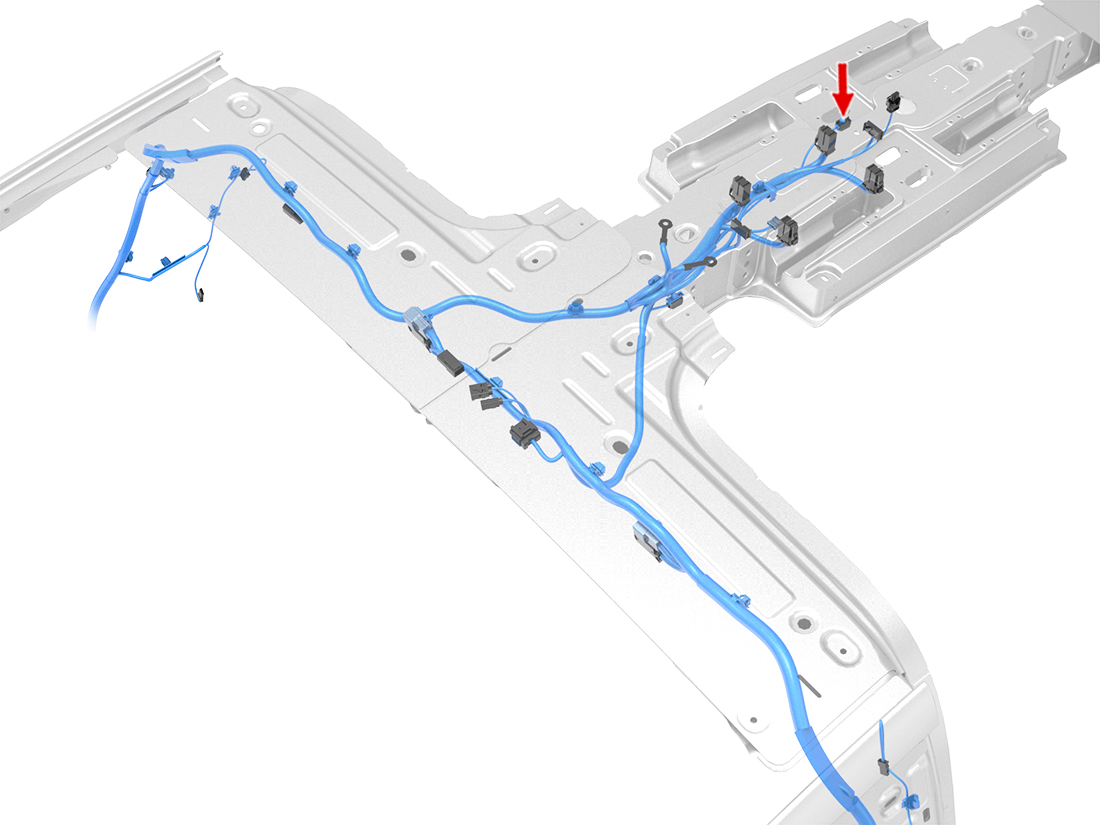

Location:
Location:
Location:
Connector Detail: ROSENBERGER 59Z073-C00-C
Color: BU
Serviceability: Cable Subassembly
Connector Detail: Rosenberger D4Z001-000-A
Color: BK
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| H | BK | HSD | AU | X829-H | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X808M-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X808M-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| H | BK | HSD | AU | X829-H | - | - | - |
