X841F - s-rhd-sop10

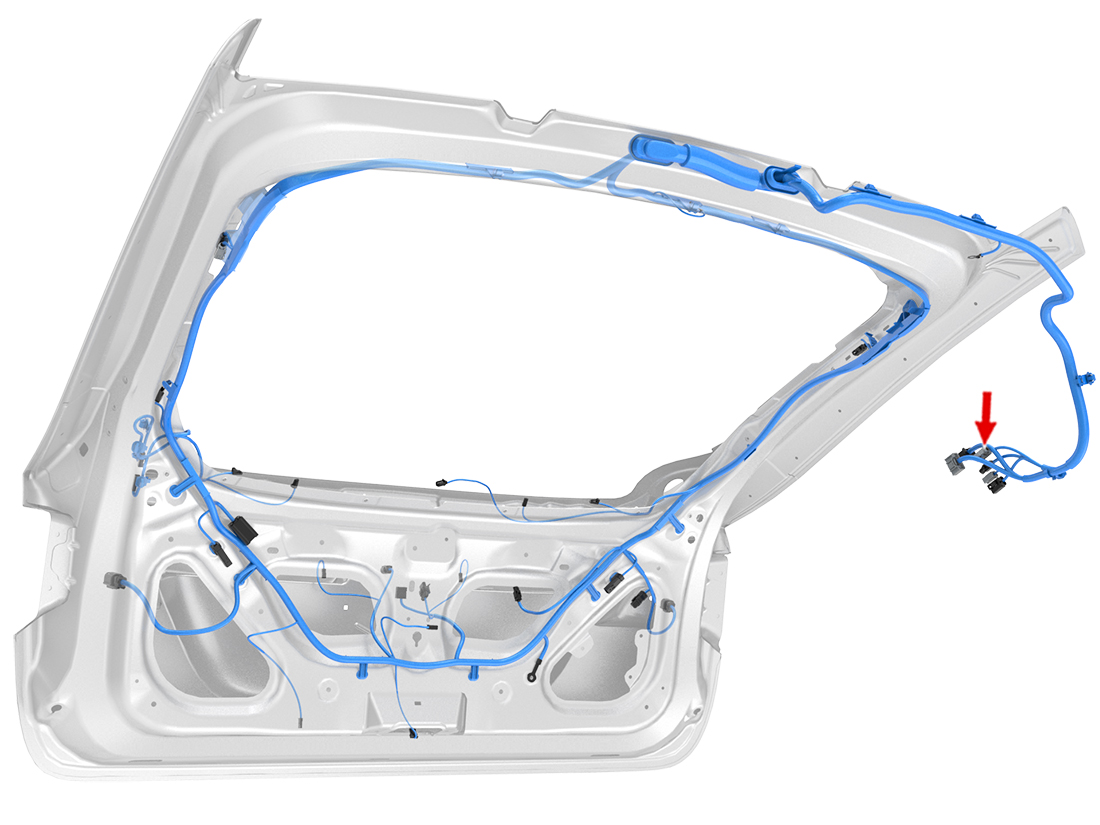

Location:
Location:
Connector Detail: Rosenberger 59Z113-000-B
Color: WH
Serviceability: Cable Subassembly
Connector Detail: Rosenberger 59Z115-000-K
Color: Curry
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X835-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X846-1 | - | - | - | |
| 2 | BK | D302 | AU | X844-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X846-1 | - | - | - | |
| 2 | BK | D302 | AU | X844-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | D302 | AU | X835-1 | - | - | - |
