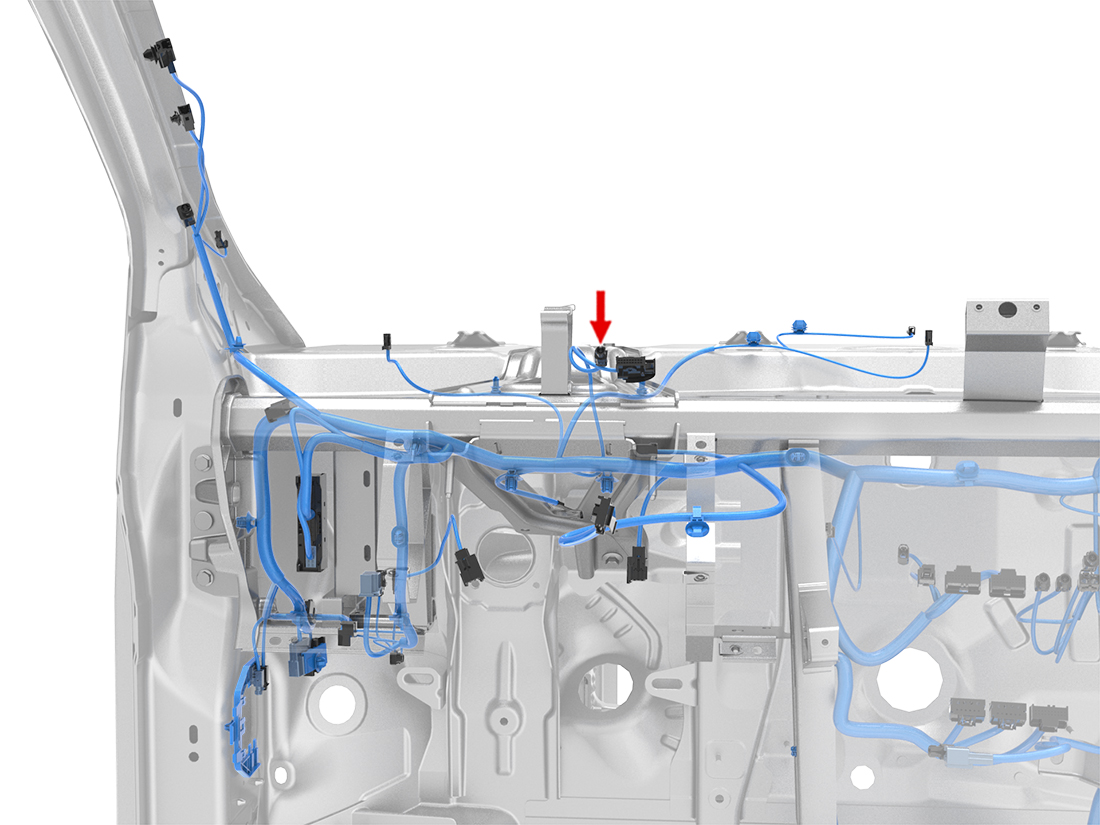

Location:

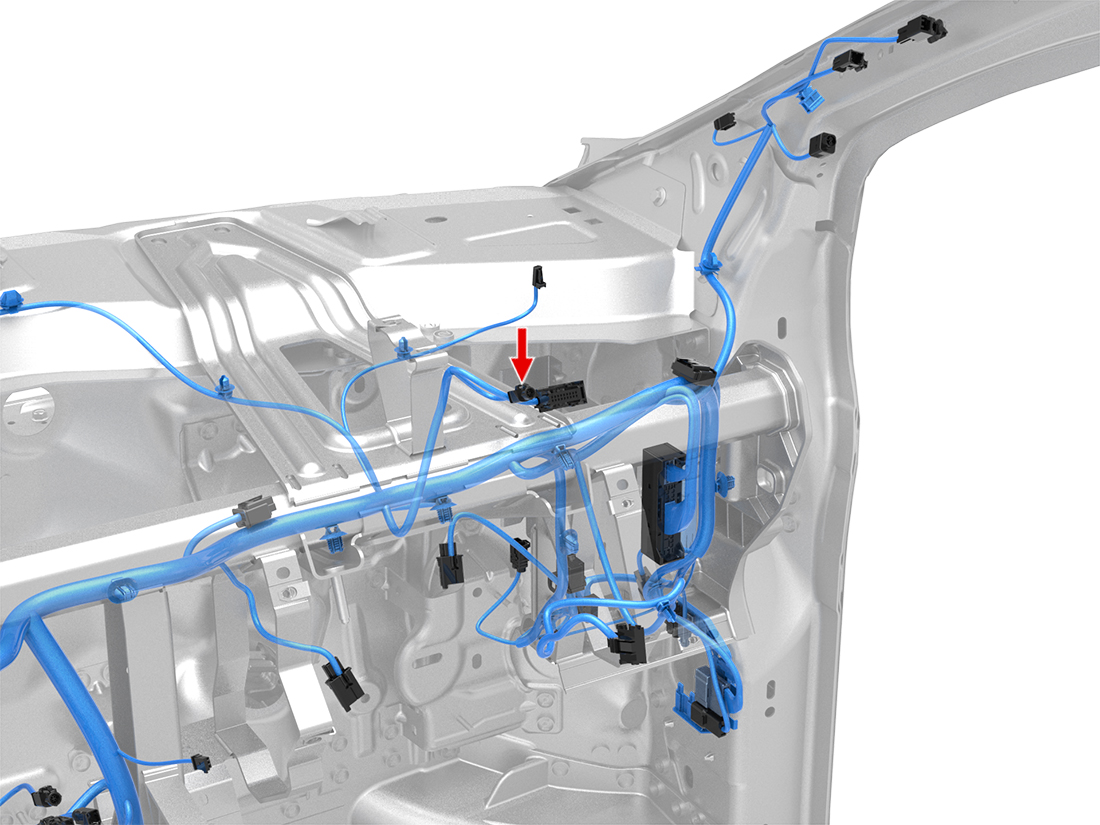

Location:
Location:
Connector Detail: Rosenberger D4Z001-000-A
Color: BK
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| H | BK | HSD | AU | X860-H | - | - | - | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| H | BK | D535 | AU | X860-H | - | - | - | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| H | BK | D535 | AU | X860-H | - | - | - | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| H | BK | HSD | AU | X860-H | - | - | - | |
