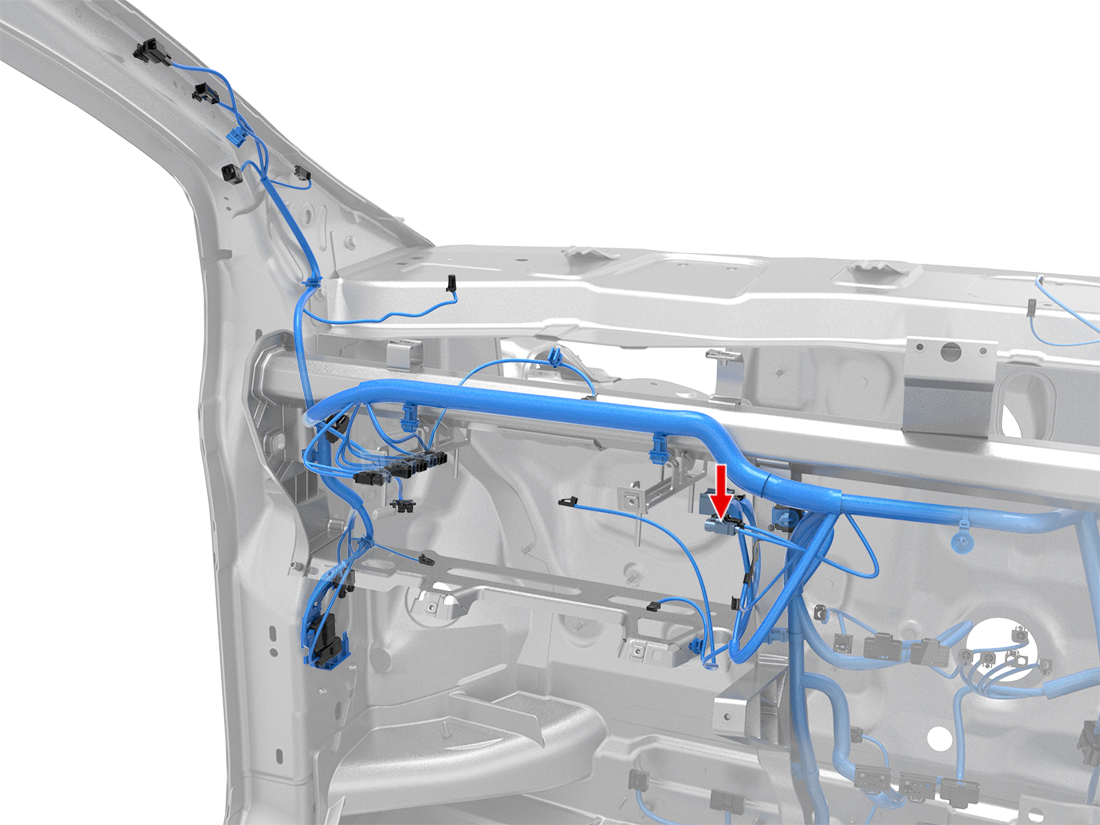

X863 - s-rhd-sop10
Location:
Location:
Location:
Connector Detail: Rosenberger D4K20A-1D5A5-B
Color: WH
Serviceability: Cable Subassembly
Connector Detail: Rosenberger D4Z001-000-B
Color: WH
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| H | BK | HSD | AU | X873-H | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| H | BK | D535 | AU | X862-H | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| H | BK | D535 | AU | X862-H | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| H | BK | HSD | AU | X873-H | - | - | - |
