X867 - s-rhd-sop10

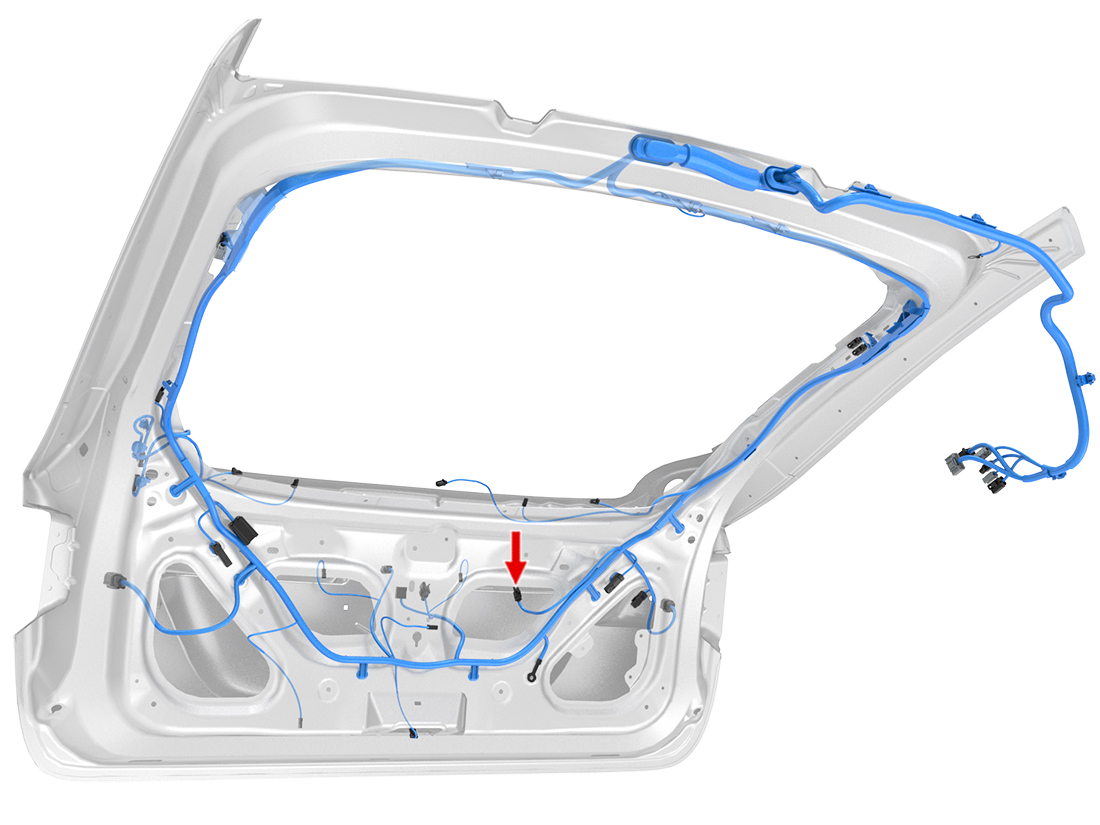

Location:

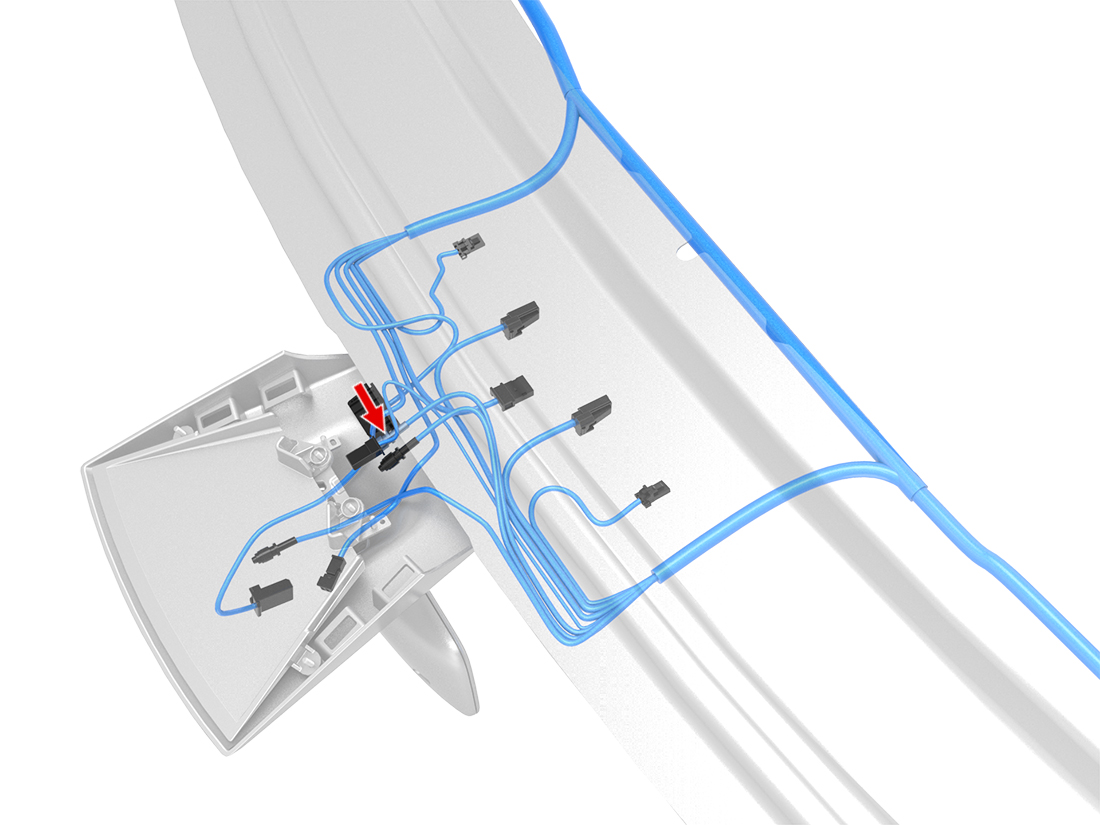

Location:
Connector Detail: Rosenberger 59K27D-102Z4-A
Color: BK
Serviceability: Cable Subassembly
Connector Detail: Rosenberger D4Z001-000-C
Color: BU
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | RG316 | AU | X871M-1 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| H | BK | D535 | AU | X866F-H | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| H | BK | D535 | AU | X866F-H | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | RG316 | AU | X871M-1 | - | - | - |
