X890A - s-rhd-sop10

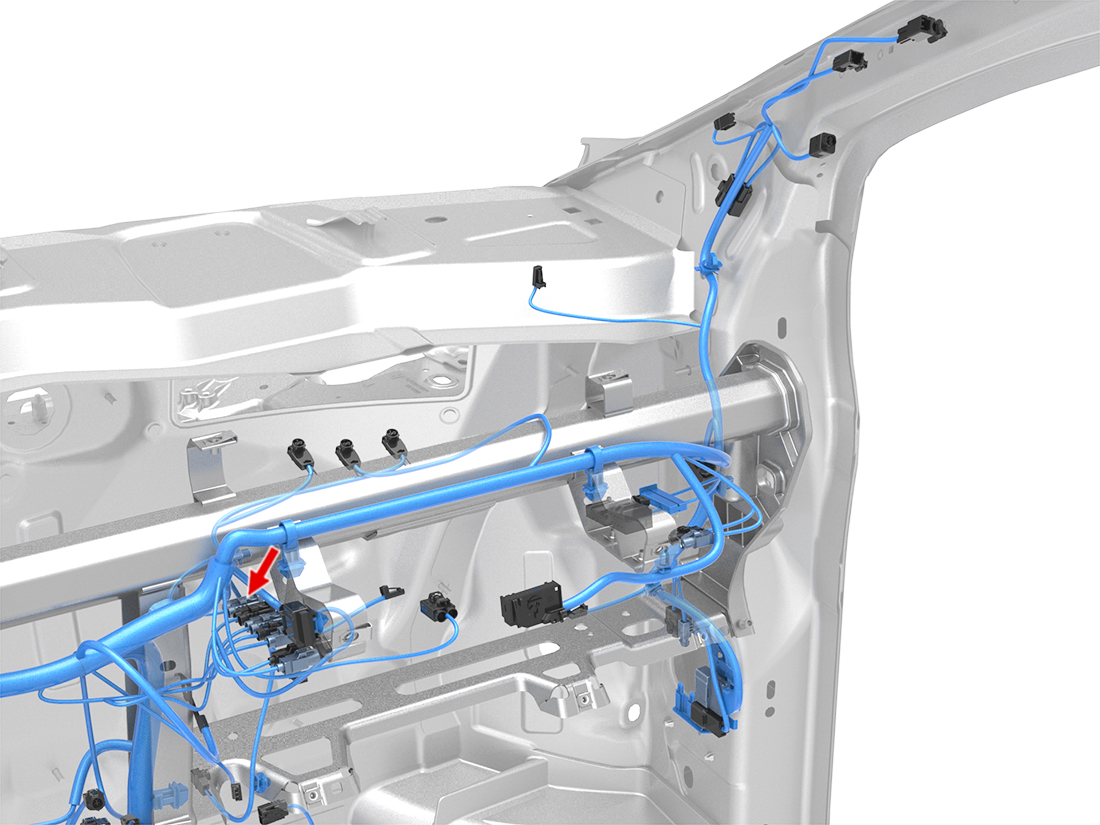

Location:
Connector Detail: Rosenberger 59Z115-000-A
Color: BK
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | RG316 | AU | X892M-A-1 | - | - | - | |
| 2 | BK | RG316 | AU | X892M-A-2 | - | - | - |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK | RG316 | AU | X892M-A-1 | - | - | - | |
| 2 | BK | RG316 | AU | X892M-A-2 | - | - | - |
