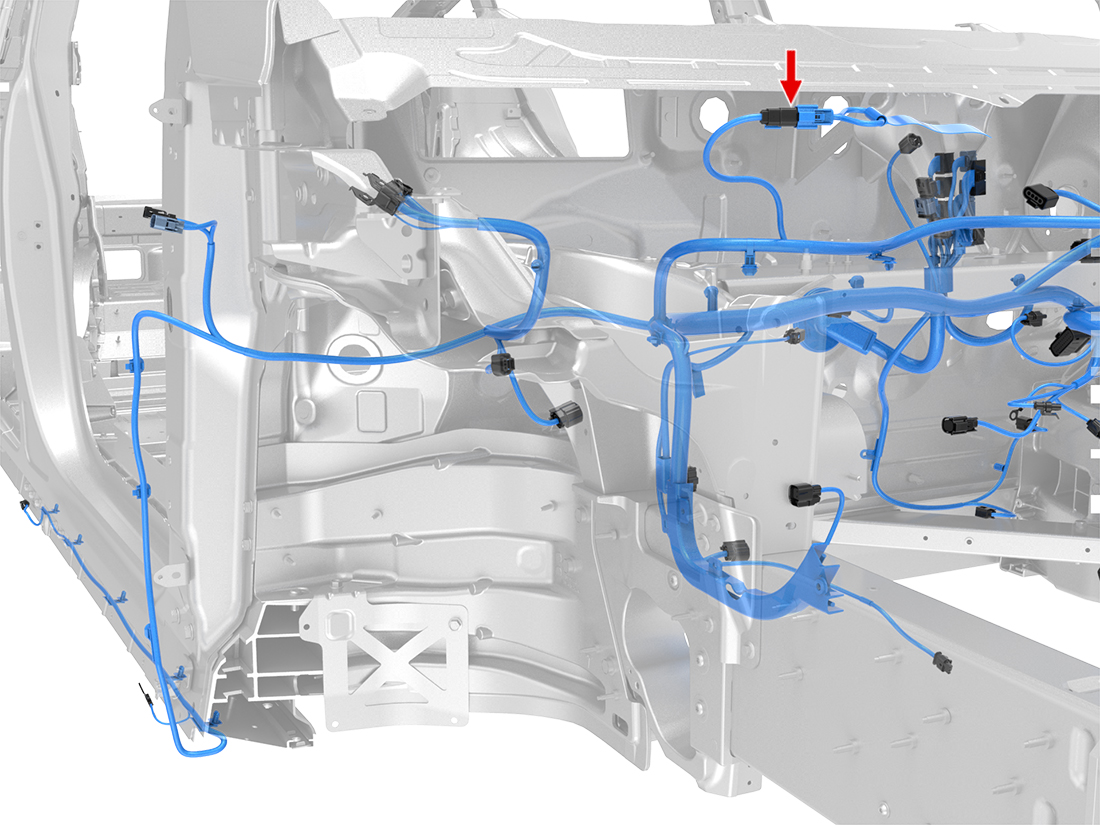

Location:
Connector Detail: Molex 33472-0601
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 1 | SN | X900F-3 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 2 | GN | 1 | SN | X900F-4 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 3 | RD/WH | 1 | SN | X900F-1 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 4 | GN | 1 | SN | X900F-2 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/WH | 1 | SN | X900F-3 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 2 | GN | 1 | SN | X900F-4 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 3 | RD/WH | 1 | SN | X900F-1 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
| 4 | GN | 1 | SN | X900F-2 | Molex 33012-3002 | Tesla MAT-120-240 | 1099517-00-A | 1116485-00-A |
