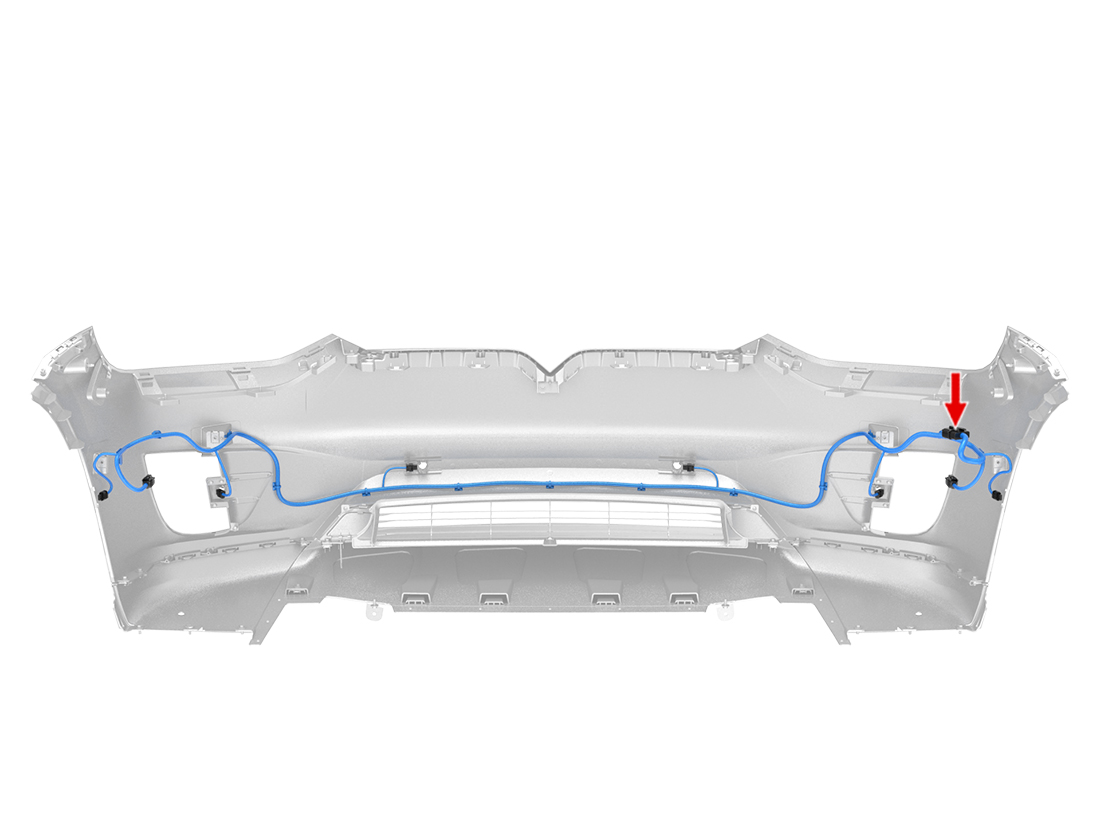

Location:
Connector Detail: Molex 33472-2001
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | RD | 0.5 | SN | Z12-WPA07-X | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 3 | BK | 0.5 | SN | Z13-WPA08-R | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 4 | BU/WH | 0.5 | SN | X140-2 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 5 | BU | 0.5 | SN | X141-2 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 6 | GN/WH | 0.5 | SN | X142-2 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 7 | GN | 0.5 | SN | X143-2 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 8 | RD/WH | 0.5 | SN | X133-2 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 9 | BN/WH | 0.5 | SN | X134-2 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 10 | GN | 0.5 | SN | X263-4 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 11 | BK | 0.5 | SN | Z6-GJRF210-L | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 13 | GN/WH | 0.5 | SN | X262-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 14 | BN | 0.5 | SN | X262-5 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 15 | GN | 0.5 | SN | X262-2 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 16 | BN | 0.5 | SN | X263-2 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 17 | BU/WH | 0.5 | SN | X263-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 18 | VT | 0.5 | SN | X263-5 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 20 | BU | 0.5 | SN | X262-4 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
