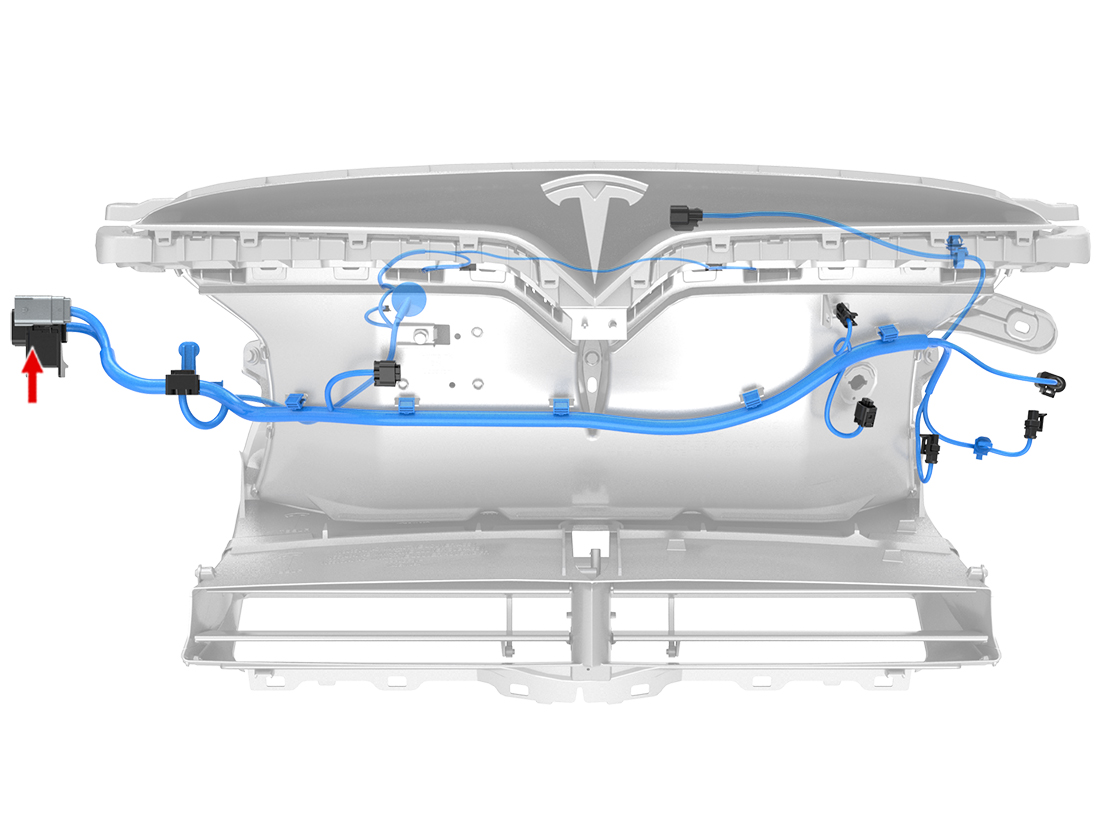

Location:
Connector Detail: Molex 33482-1601
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | RD/BU | 0.5 | SN | X487-3 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | RD | 0.5 | SN | X543-1 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 5 | GN/WH | 0.5 | SN | X543-3 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 6 | BU/WH | 0.5 | SN | X127-5 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 7 | BU | 0.5 | SN | X127-6 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 11 | BU | 0.5 | SN | X127-4 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 12 | GN | 0.5 | SN | X485-2 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 12 | GN | 0.5 | SN | X485A-3 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 13 | VT/WH | 0.5 | SN | X485-4 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 13 | VT/WH | 0.5 | SN | X485A-1 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 14 | BN | 0.5 | SN | X333-1 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 15 | BK | 0.75 | SN | Z3-+GJRF106-L | Molex 33000-0002 | Tesla MAT-120-240 | 1099509-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | RD/BU | 0.5 | SN | X487-3 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | RD | 0.5 | SN | X543-1 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 5 | GN/WH | 0.5 | SN | X543-3 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 6 | BU/WH | 0.5 | SN | X127-5 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 7 | BU | 0.5 | SN | X127-6 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 11 | BU | 0.5 | SN | X127-4 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 12 | GN | 0.5 | SN | X485-2 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 12 | GN | 0.5 | SN | X485A-3 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 13 | VT/WH | 0.5 | SN | X485-4 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 13 | VT/WH | 0.5 | SN | X485A-1 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 14 | BN | 0.5 | SN | X333-1 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 15 | BK | 0.75 | SN | Z3-+GJRF106-L | Molex 33000-0002 | Tesla MAT-120-240 | 1099509-00-A | 1116485-00-A |
