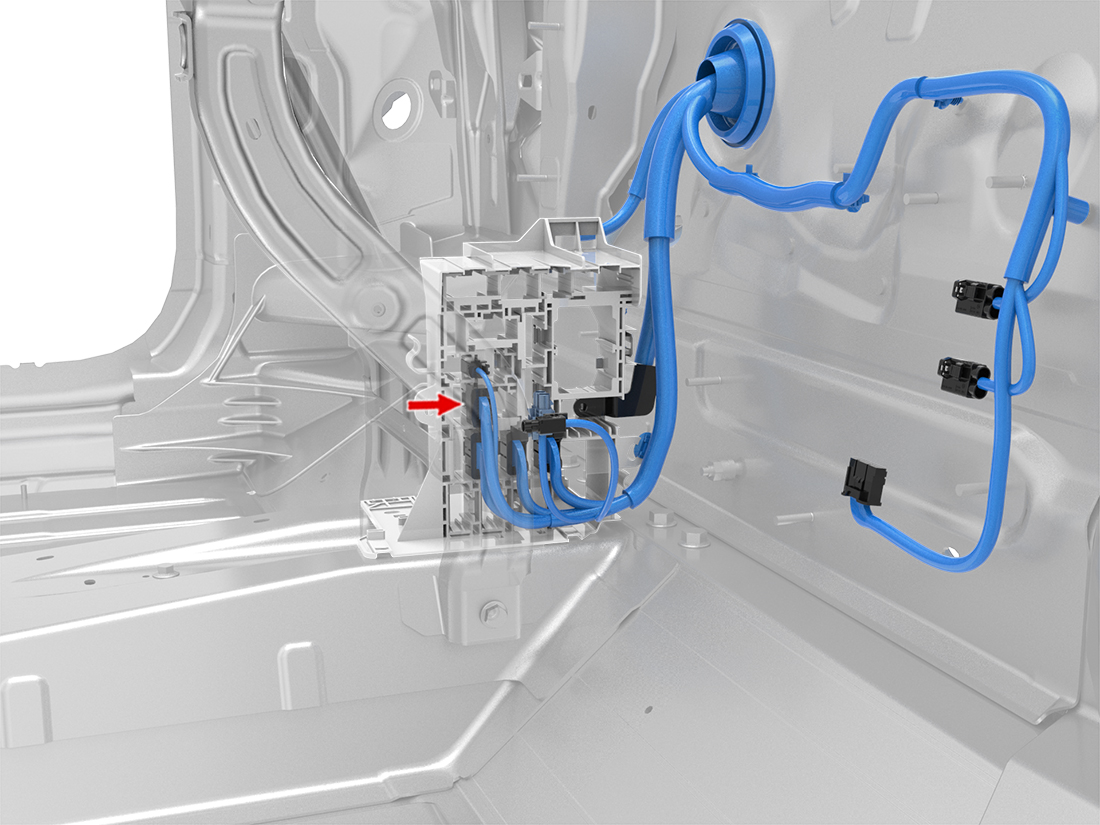

Location:
Connector Detail: Sumitomo 6098-3925
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | RD | 0.5 | SN | X901M-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | BU/WH | 0.5 | SN | X901M-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | BU | 0.5 | SN | X901M-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | GN/WH | 0.5 | SN | X901M-6 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | GN | 0.5 | SN | X003-34 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | RD | 0.5 | SN | X062-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | RD | 0.5 | SN | X062A-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | RD/BK | 0.5 | SN | X752-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | GN | 0.5 | SN | X901M-7 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | RD/WH | 0.5 | SN | X901M-8 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | BN/WH | 0.5 | SN | X901M-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | BK | 0.5 | SN | X901M-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | VT | 0.35 | SN | X031-12 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 19 | RD | 0.5 | SN | X003-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | BK | 0.5 | SN | X062-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | BK | 0.5 | SN | X062A-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 21 | GN | 0.35 | SN | X051-40 | Sumitomo 8100-3624 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 3 | RD | 0.5 | SN | X901M-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | BU/WH | 0.5 | SN | X901M-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | BU | 0.5 | SN | X901M-5 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | GN/WH | 0.5 | SN | X901M-6 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | GN | 0.5 | SN | X003-34 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | RD | 0.5 | SN | X062-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | RD | 0.5 | SN | X062A-13 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | RD/BK | 0.5 | SN | X752-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 14 | GN | 0.5 | SN | X901M-7 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | RD/WH | 0.5 | SN | X901M-8 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | BN/WH | 0.5 | SN | X901M-9 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | BK | 0.5 | SN | X901M-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | VT | 0.35 | SN | X031-12 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 19 | RD | 0.5 | SN | X003-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | BK | 0.5 | SN | X062-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | BK | 0.5 | SN | X062A-12 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 21 | GN | 0.35 | SN | X051-40 | Sumitomo 8100-3624 | | 1099530-00-A | |
