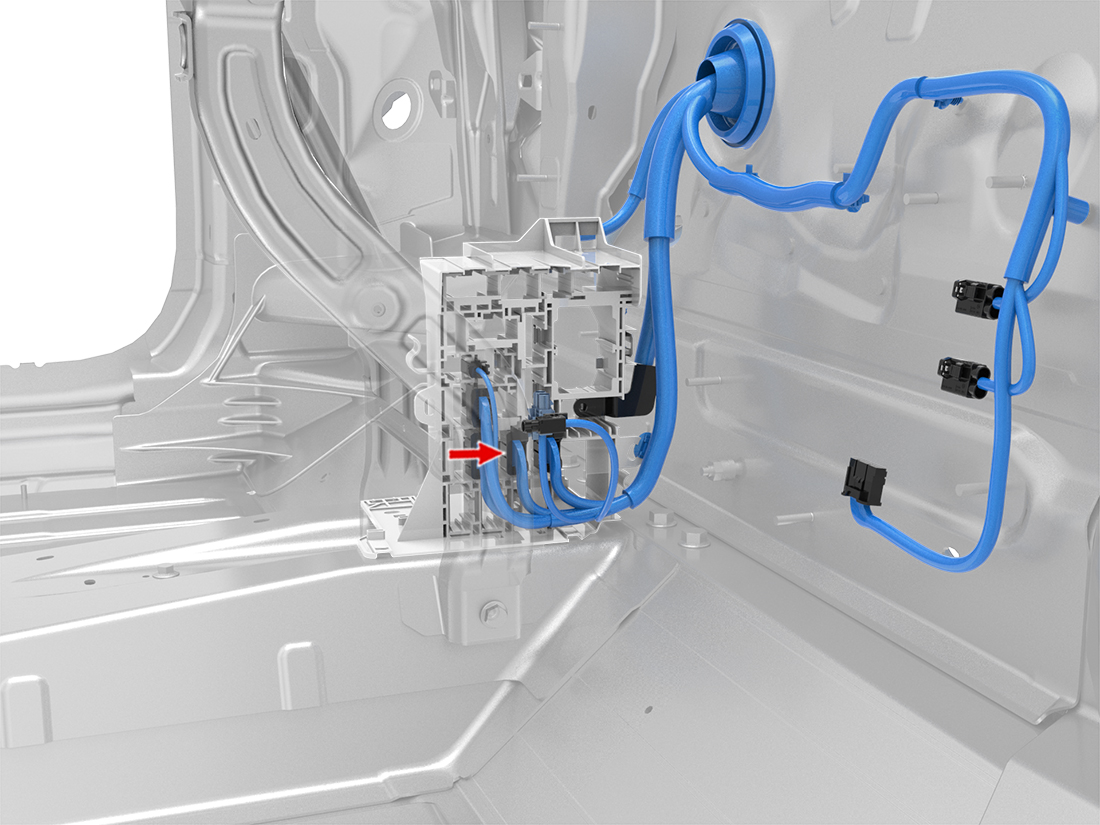

Location:
Connector Detail: Sumitomo 6098-5625
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT/WH | 0.5 | SN | X003-33 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 4 | BN | 0.5 | SN | X905F-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | WH | 0.13 | SN | X750-1 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 6 | WH | 0.13 | SN | X750-11 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 7 | WH | 0.13 | SN | X751-3 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 8 | BU | 0.5 | SN | X905F-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | GN/WH | 0.5 | SN | X151-31 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | GN | 0.5 | SN | X151-18 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | YE/WH | 0.35 | SN | X751-9 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 15 | GN | 0.13 | SN | X750-12 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 16 | RD | 0.13 | SN | X750-22 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 17 | BU | 0.13 | SN | X751-14 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 18 | BK/WH | 0.5 | SN | X151-17 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | WH | 0.5 | SN | X151-29 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | YE | 0.35 | SN | X751-20 | Sumitomo 8240-0215 | | 1099541-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | VT/WH | 0.5 | SN | X003-33 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 4 | BN | 0.5 | SN | X905F-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 5 | WH | 0.13 | SN | X750-1 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 6 | WH | 0.13 | SN | X750-11 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 7 | WH | 0.13 | SN | X751-3 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 8 | BU | 0.5 | SN | X905F-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | GN/WH | 0.5 | SN | X151-31 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | GN | 0.5 | SN | X151-18 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 11 | YE/WH | 0.35 | SN | X751-9 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 15 | GN | 0.13 | SN | X750-12 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 16 | RD | 0.13 | SN | X750-22 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 17 | BU | 0.13 | SN | X751-14 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 18 | BK/WH | 0.5 | SN | X151-17 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 19 | WH | 0.5 | SN | X151-29 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 20 | YE | 0.35 | SN | X751-20 | Sumitomo 8240-0215 | | 1099541-00-A | |
