X911M - s-rhd-sop10

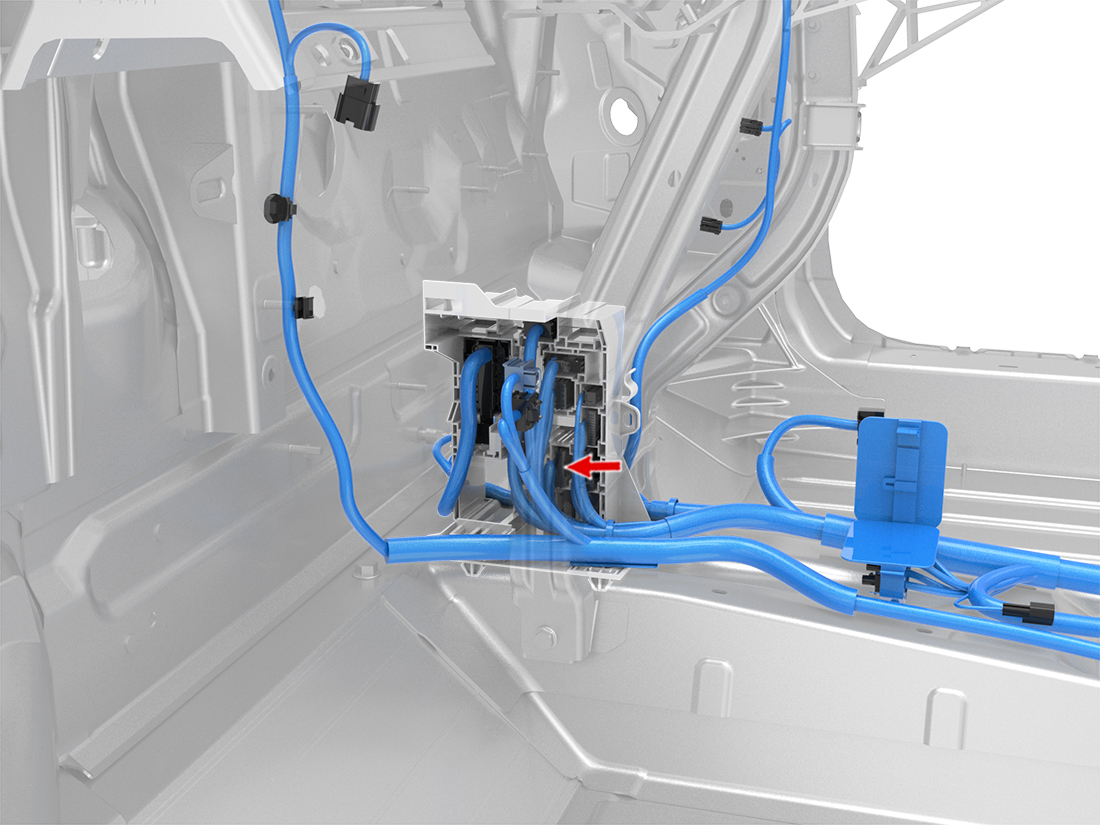

Location:
Location:
Connector Detail: Molex 33482-1202
Color: Gray
Serviceability: Terminal Pigtail
Connector Detail: SUMITOMO 6098-5616
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | RD/WH | 0.35 | SN | Z17-PRM21-L | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | BK | 0.35 | SN | G660-1 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 9 | VT/WH | 0.35 | SN | X778-8 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 10 | VT | 0.35 | SN | X778-19 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT/WH | 0.35 | SN | X061-38 | SUMITOMO 8230-4925 | 1099537-00-A | ||
| 4 | BN | 0.13 | SN | X061-25 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 5 | WH | 0.13 | SN | X703-6 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 6 | WH | 0.5 | SN | X952M-4 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 7 | WH | 0.13 | SN | X700-1 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 8 | BU | 0.13 | SN | X061-24 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 9 | GN/WH | 0.5 | SN | X953M-5 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 10 | GN | 0.5 | SN | X953M-6 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 11 | YE/WH | 0.35 | SN | X201-60 | SUMITOMO 8230-4925 | 1099537-00-A | ||
| 15 | GN | 0.13 | SN | X703-17 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 16 | RD | 0.5 | SN | X952M-12 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 17 | BU | 0.13 | SN | X700-7 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 18 | BK/WH | 0.5 | SN | X953M-11 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 19 | WH | 0.5 | SN | X953M-12 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 20 | YE | 0.35 | SN | X201-59 | SUMITOMO 8230-4925 | 1099537-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT/WH | 0.35 | SN | X061-38 | SUMITOMO 8230-4925 | 1099537-00-A | ||
| 4 | BN | 0.13 | SN | X061-25 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 5 | WH | 0.13 | SN | X703-6 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 6 | WH | 0.5 | SN | X952M-4 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 7 | WH | 0.13 | SN | X700-1 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 8 | BU | 0.13 | SN | X061-24 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 9 | GN/WH | 0.5 | SN | X953M-5 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 10 | GN | 0.5 | SN | X953M-6 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 11 | YE/WH | 0.35 | SN | X201-60 | SUMITOMO 8230-4925 | 1099537-00-A | ||
| 15 | GN | 0.13 | SN | X703-17 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 16 | RD | 0.5 | SN | X952M-12 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 17 | BU | 0.13 | SN | X700-7 | SUMITOMO 8230-4878 | 1099529-00-A | ||
| 18 | BK/WH | 0.5 | SN | X953M-11 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 19 | WH | 0.5 | SN | X953M-12 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 20 | YE | 0.35 | SN | X201-59 | SUMITOMO 8230-4925 | 1099537-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | RD/WH | 0.35 | SN | Z17-PRM21-R | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | BK | 0.35 | SN | G660-1 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 9 | VT/WH | 0.35 | SN | X778-8 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 10 | VT | 0.35 | SN | X778-19 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
