X912F - s-rhd-sop10

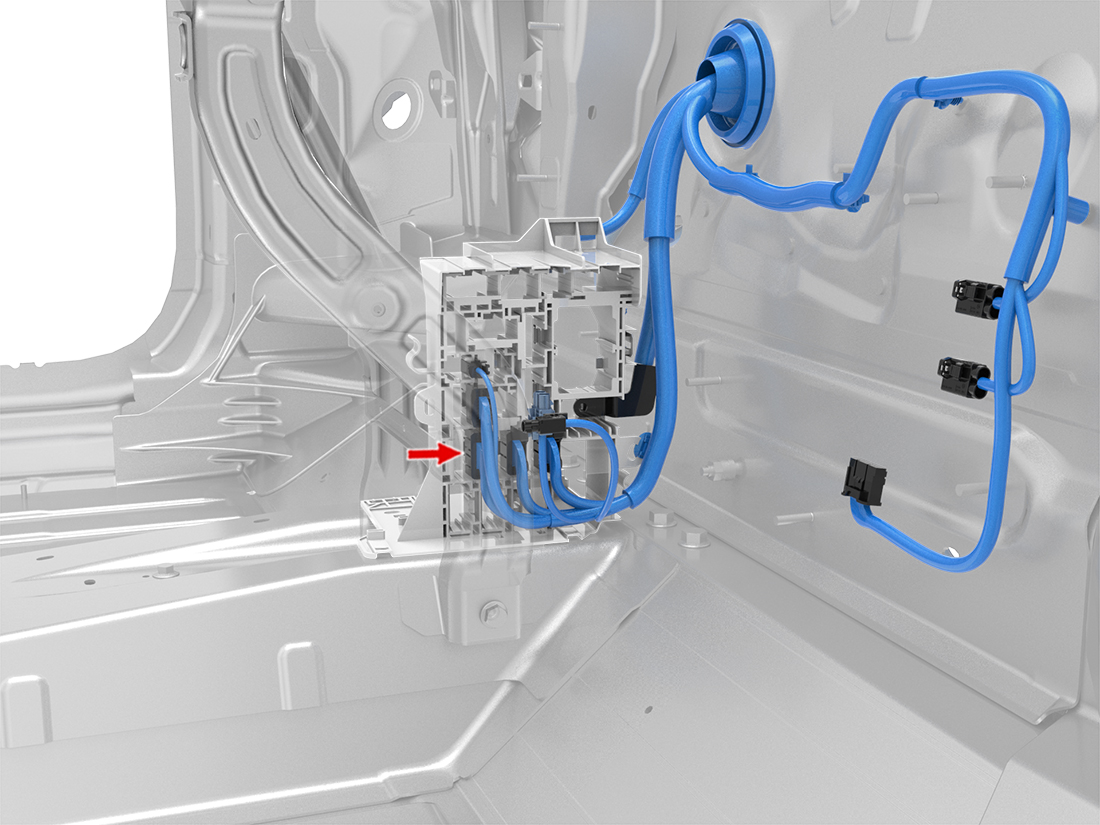

Location:
Location:
Connector Detail: Molex 33471-0492
Color: Yellow
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-5648
Color: BU
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | AU | X201-25 | Molex 33001-3005 | Tesla MAT-120-240 | 1099513-00-A | 1116485-00-A |
| 2 | GY/WH | 0.5 | AU | X201-26 | Molex 33001-3005 | Tesla MAT-120-240 | 1099513-00-A | 1116485-00-A |
| 3 | BK | 0.5 | AU | G660-1 | Molex 33001-3005 | Tesla MAT-120-240 | 1099513-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 2 | SN | X001-8 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 2 | GY | 0.35 | SN | X500-5 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 3 | GN | 0.35 | SN | X502-18 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 4 | RD | 0.35 | SN | X502-8 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 5 | WH | 0.35 | SN | X503-10 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 6 | GY | 0.35 | SN | X503-5 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 7 | BU | 0.35 | SN | X500-9 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 8 | GN | 0.35 | SN | X501-10 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 9 | BN | 0.35 | SN | X501-9 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 10 | RD/GN | 2 | SN | X003-26 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 13 | WH | 0.35 | SN | X501-20 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 14 | BN | 0.35 | SN | X503-15 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 17 | BK | 0.35 | SN | X503-20 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 18 | RD | 2 | SN | X001-18 | Sumitomo 8240-0214 | 1099540-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 2 | SN | X001-8 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 2 | GY | 0.35 | SN | X500-5 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 3 | GN | 0.35 | SN | X502-18 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 4 | RD | 0.35 | SN | X502-8 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 5 | WH | 0.35 | SN | X503-10 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 6 | GY | 0.35 | SN | X503-5 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 7 | BU | 0.35 | SN | X500-9 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 8 | GN | 0.35 | SN | X501-10 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 9 | BN | 0.35 | SN | X501-9 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 10 | RD/GN | 2 | SN | X003-26 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 13 | WH | 0.35 | SN | X501-20 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 14 | BN | 0.35 | SN | X503-15 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 17 | BK | 0.35 | SN | X503-20 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 18 | RD | 2 | SN | X001-18 | Sumitomo 8240-0214 | 1099540-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | AU | X201-35 | Molex 33001-3005 | Tesla MAT-120-240 | 1099513-00-A | 1116485-00-A |
| 2 | GY/WH | 0.5 | AU | X201-36 | Molex 33001-3005 | Tesla MAT-120-240 | 1099513-00-A | 1116485-00-A |
| 3 | BK | 0.5 | AU | G660-1 | Molex 33001-3005 | Tesla MAT-120-240 | 1099513-00-A | 1116485-00-A |
