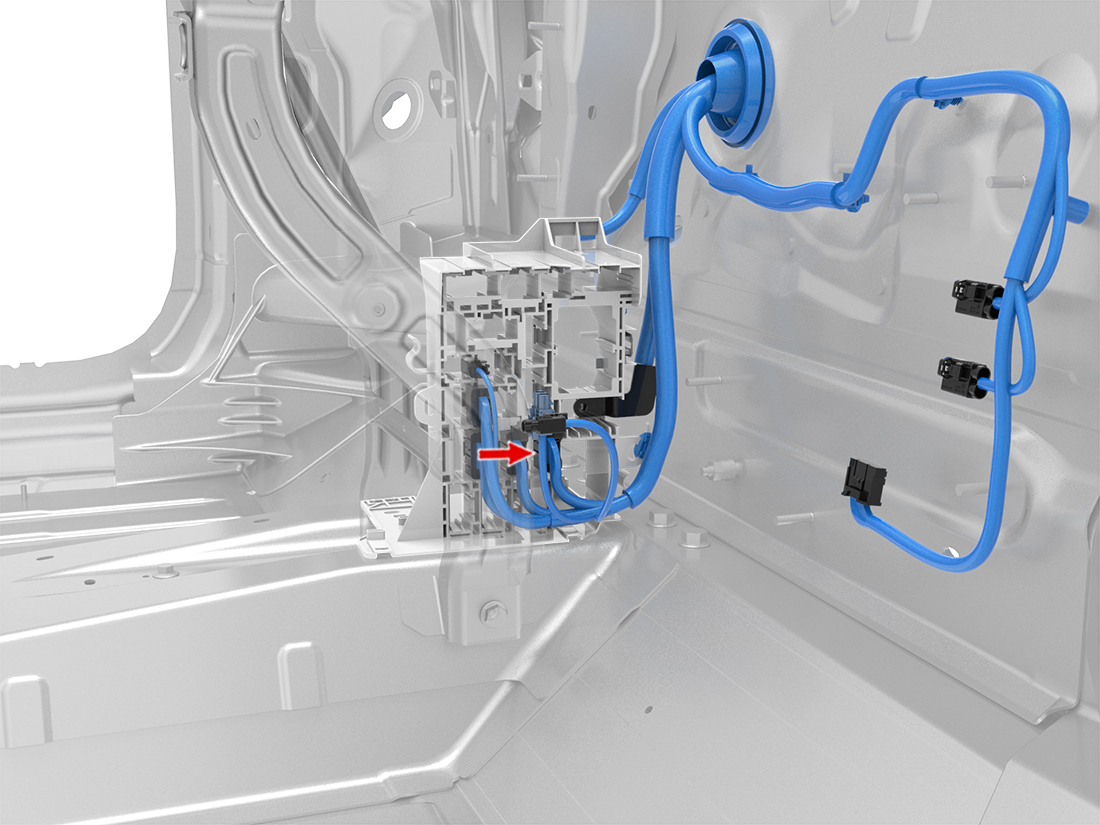

Location:
Connector Detail: Sumitomo 6098-5609
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 2 | SN | X002-11 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 3 | GN | 0.13 | SN | X080-15 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 4 | GN | 0.13 | SN | X080-36 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 5 | BK | 0.13 | SN | X080-35 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 6 | RD/VT | 0.5 | SN | X080-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | BN | 0.5 | SN | X080-19 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | BK/VT | 0.5 | SN | X080-18 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | RD | 1 | SN | X001-5 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 11 | RD | 0.5 | SN | X906F-4 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 12 | YE | 0.5 | SN | X101-9 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 15 | GN | 0.5 | SN | X100-11 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | VT/WH | 0.5 | SN | X300-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | VT/WH | 0.5 | SN | X300A-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | GN | 0.75 | SN | X900M-4 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 18 | RD/WH | 1 | SN | X001-3 | Sumitomo 8240-0213 | | 1099539-00-A | |
