X914F - s-rhd-sop10

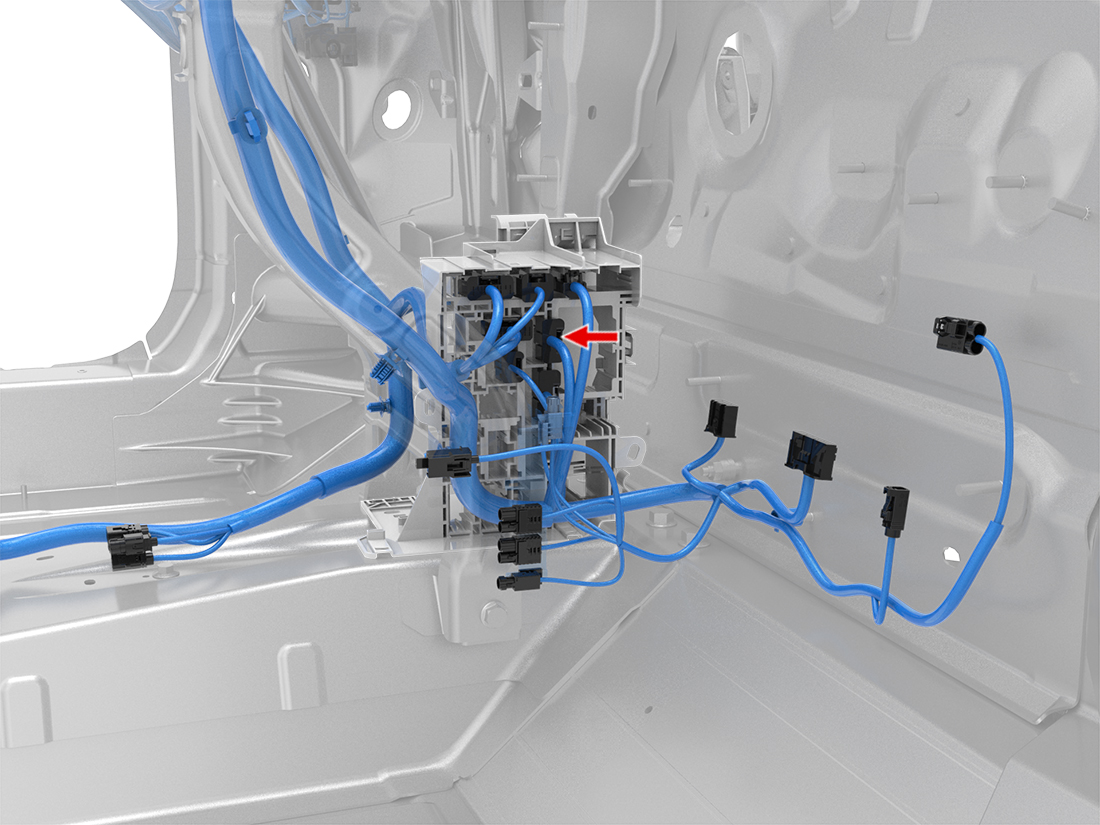

Location:
Connector Detail: Sumitomo 6098-5629
Color: BU
Serviceability: Terminal Pigtail
Connector Detail: Yazaki 7283-6446-40
Color: LightGray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 1 | SN | X063-1 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 2 | RD | 0.35 | SN | X060-8 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 3 | BU/WH | 0.35 | SN | X126-5 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 4 | WH | 0.35 | SN | X732-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 5 | WH | 0.13 | SN | X732-2 | Sumitomo 8240-0182 | 1099530-00-A | ||
| 6 | WH | 0.13 | SN | X732-11 | Sumitomo 8240-0182 | 1099530-00-A | ||
| 7 | YE/WH | 0.35 | SN | X120A-5 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 9 | GY/WH | 0.35 | SN | X126-7 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 13 | GN | 0.5 | SN | X060-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 14 | BN | 0.35 | SN | X732-14 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 15 | BN | 0.13 | SN | X732-13 | Sumitomo 8240-0182 | 1099530-00-A | ||
| 16 | RD | 0.13 | SN | X732-22 | Sumitomo 8240-0182 | 1099530-00-A | ||
| 17 | YE | 0.35 | SN | X120A-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 18 | GY | 0.35 | SN | X126-6 | Sumitomo 8100-3624 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 1 | SN | X063-1 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 2 | RD | 0.35 | SN | X060-8 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 3 | BU/WH | 0.5 | SN | X126-5 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | WH | 0.35 | SN | X732-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 5 | WH | 0.13 | SN | X732-2 | Sumitomo 8240-0182 | 1099530-00-A | ||
| 6 | WH | 0.13 | SN | X732-11 | Sumitomo 8240-0182 | 1099530-00-A | ||
| 7 | YE/WH | 0.35 | SN | X120A-5 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 9 | GY/WH | 0.35 | SN | X126-7 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 13 | GN | 0.5 | SN | X060-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 14 | BN | 0.35 | SN | X732-14 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 15 | BN | 0.13 | SN | X732-13 | Sumitomo 8240-0182 | 1099530-00-A | ||
| 16 | RD | 0.13 | SN | X732-22 | Sumitomo 8240-0182 | 1099530-00-A | ||
| 17 | YE | 0.35 | SN | X120A-6 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 18 | GY | 0.35 | SN | X126-6 | Sumitomo 8100-3624 | 1099530-00-A |
