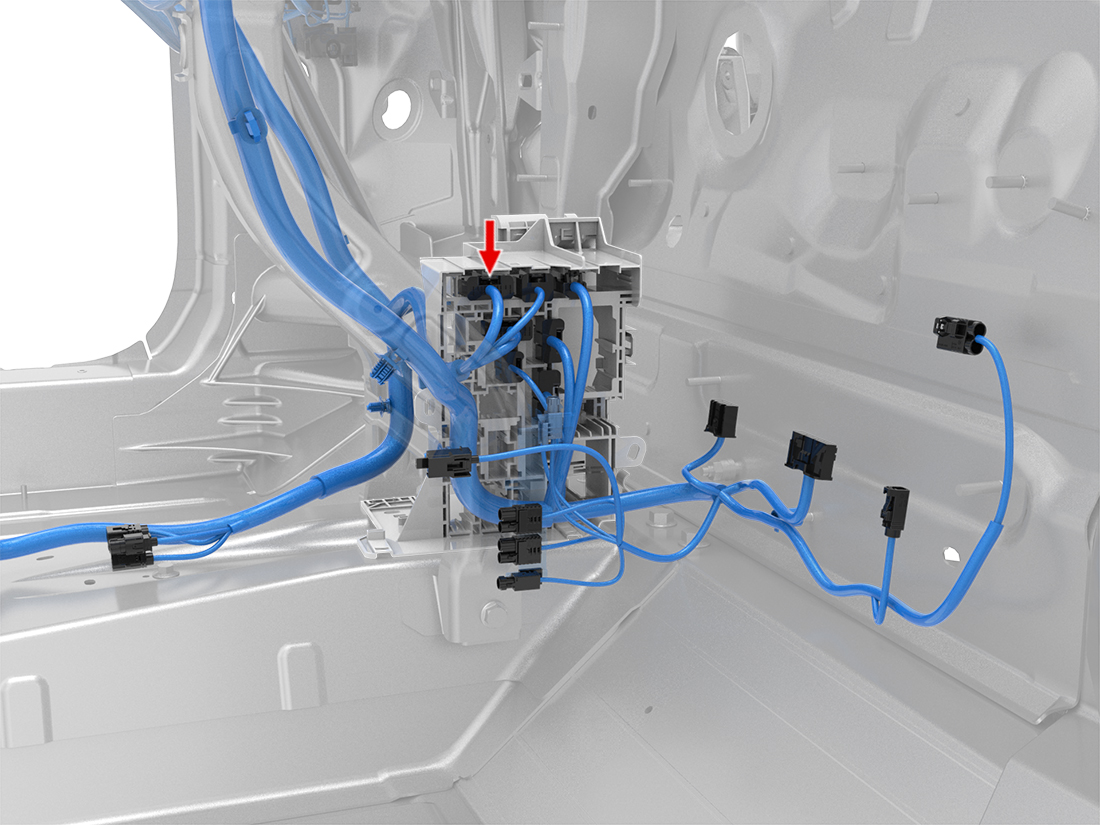

Location:
Connector Detail: Sumitomo 6098-5644
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.5 | SN | X126-4 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 2 | BN | 1.5 | SN | X164-4 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 3 | BU/WH | 0.35 | SN | X126-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 4 | WH | 0.13 | SN | X730-3 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 5 | BU | 0.35 | SN | X171-14 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 6 | YE | 0.35 | SN | X200-17 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | GN | 0.35 | SN | X171-2 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 8 | YE | 0.35 | SN | X200-16 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | VT | 0.5 | SN | X200-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | RD/VT | 0.5 | SN | X026-8 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 11 | RD/BK | 0.75 | SN | X173-14 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 13 | BU | 0.35 | SN | X126-8 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 14 | GN | 0.13 | SN | X730-14 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 15 | BU | 0.35 | SN | X200-18 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X200-15 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | GN | 0.5 | SN | X200-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | RD | 0.75 | SN | X173-18 | Sumitomo 8240-0213 | | 1099539-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD | 0.5 | SN | X126-4 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 2 | BN | 1.5 | SN | X164-4 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 3 | BU/WH | 0.35 | SN | X126-3 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 4 | WH | 0.13 | SN | X730-3 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 5 | BU | 0.35 | SN | X171-14 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 6 | YE | 0.35 | SN | X200-17 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | GN | 0.35 | SN | X171-2 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 8 | YE | 0.35 | SN | X200-16 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | VT | 0.5 | SN | X200-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 10 | RD/VT | 0.5 | SN | X026-8 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 11 | RD/BK | 0.75 | SN | X173-14 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 13 | BU | 0.35 | SN | X126-8 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 14 | GN | 0.13 | SN | X730-14 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 15 | BU | 0.35 | SN | X200-18 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 16 | GN | 0.35 | SN | X200-15 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | GN | 0.5 | SN | X200-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 18 | RD | 0.75 | SN | X173-18 | Sumitomo 8240-0213 | | 1099539-00-A | |
