X915M - s-rhd-sop10

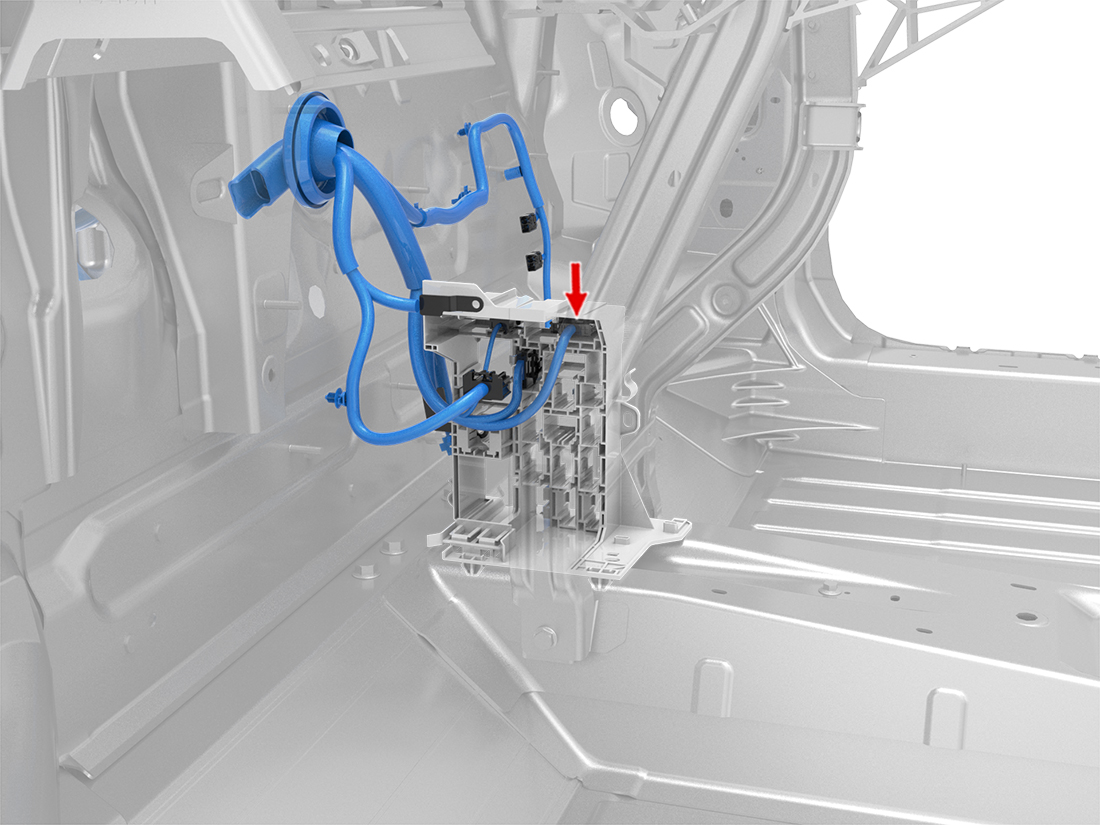

Location:
Location:
Connector Detail: Molex 34986-1601
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-5634
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 2 | SN | X570-7 | AMP 1326031-5 | Yazaki 7158-3113-40 | 1099435-00-B | |
| 2 | GN/WH | 0.35 | SN | X778-5 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 3 | GN | 0.35 | SN | X778-16 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | RD | 0.35 | SN | X571-8 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 5 | BK | 0.35 | SN | G660-1 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 6 | RD/GY | 0.35 | SN | Z44-CLN03-L | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 7 | BU/WH | 0.35 | SN | X571-7 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 8 | BK | 2 | SN | G720-1 | AMP 1326031-5 | Yazaki 7158-3113-40 | 1099435-00-B | |
| 9 | RD/VT | 0.75 | SN | X571-9 | AMP 1326031-3 | Yazaki 7158-3111-60 | 1099434-00-B | |
| 10 | RD/GN | 0.5 | SN | X200-2 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 11 | BN/WH | 0.5 | SN | X200-11 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 12 | GN/WH | 0.5 | SN | X201-9 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 13 | BN | 0.5 | SN | X201-10 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 14 | GY | 0.5 | SN | X201-29 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 15 | VT/WH | 0.5 | SN | X201-30 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 16 | BK | 0.75 | SN | G720-1 | AMP 1326031-3 | Yazaki 7158-3111-60 | 1099434-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | SN | X001-17 | Sumitomo 8230-4925 | 1099537-00-A | ||
| 2 | BN | 1.5 | SN | X002-17 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 3 | BU/WH | 0.5 | SN | X906F-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | WH | 0.13 | SN | X750-6 | Sumitomo 8230-4878 | 1099529-00-A | ||
| 5 | BU | 0.13 | SN | X080-2 | Sumitomo 8230-4878 | 1099529-00-A | ||
| 6 | YE | 0.35 | SN | X202-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 7 | GN | 0.5 | SN | X906F-12 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 8 | YE | 0.35 | SN | X203-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 9 | VT | 0.5 | SN | X259-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 10 | RD/VT | 1.5 | SN | X150-17 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 10 | RD/VT | 1.5 | SN | X150A-17 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 11 | RD/BK | 0.75 | SN | X597-1 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 13 | BU | 0.5 | SN | X906F-7 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 14 | GN | 0.13 | SN | X750-17 | Sumitomo 8230-4878 | 1099529-00-A | ||
| 15 | BU | 0.35 | SN | X202-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 16 | GN | 0.35 | SN | X203-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 17 | GN | 0.5 | SN | X259-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 18 | RD | 0.75 | SN | X597-2 | Sumitomo 8230-4924 | 1099536-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.5 | SN | X001-17 | Sumitomo 8230-4925 | 1099537-00-A | ||
| 2 | BN | 1.5 | SN | X002-17 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 3 | BU/WH | 0.5 | SN | X906F-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | WH | 0.13 | SN | X750-6 | Sumitomo 8230-4878 | 1099529-00-A | ||
| 5 | BU | 0.13 | SN | X080-2 | Sumitomo 8230-4878 | 1099529-00-A | ||
| 6 | YE | 0.35 | SN | X202-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 7 | GN | 0.5 | SN | X906F-12 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 8 | YE | 0.35 | SN | X203-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 9 | VT | 0.5 | SN | X259-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 10 | RD/VT | 1.5 | SN | X150-17 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 10 | RD/VT | 1.5 | SN | X150A-17 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 11 | RD/BK | 0.75 | SN | X597-1 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 13 | BU | 0.5 | SN | X906F-7 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 14 | GN | 0.13 | SN | X750-17 | Sumitomo 8230-4878 | 1099529-00-A | ||
| 15 | BU | 0.35 | SN | X202-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 16 | GN | 0.35 | SN | X203-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 17 | GN | 0.5 | SN | X259-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 18 | RD | 0.75 | SN | X597-2 | Sumitomo 8230-4924 | 1099536-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | OG | 2 | SN | X570-7 | AMP 1326031-5 | Yazaki 7158-3113-40 | 1099435-00-B | |
| 6 | RD/GY | 0.35 | SN | Z44-CLN03-R | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 7 | BU/WH | 0.35 | SN | X571-7 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 8 | BK | 2 | SN | G720-1 | AMP 1326031-5 | Yazaki 7158-3113-40 | 1099435-00-B | |
| 9 | RD/VT | 0.75 | SN | X571-9 | AMP 1326031-3 | Yazaki 7158-3111-60 | 1099434-00-B | |
| 10 | YE | 0.35 | SN | X024-4 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 11 | BK | 0.35 | SN | G660-1 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 12 | OG | 0.5 | SN | X201-19 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 13 | GN | 0.5 | SN | X201-20 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 14 | RD | 0.5 | SN | X201-39 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 15 | GY/WH | 0.5 | SN | X201-40 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 16 | BK | 0.75 | SN | G720-1 | AMP 1326031-3 | Yazaki 7158-3111-60 | 1099434-00-B |
