X916F - s-rhd-sop10

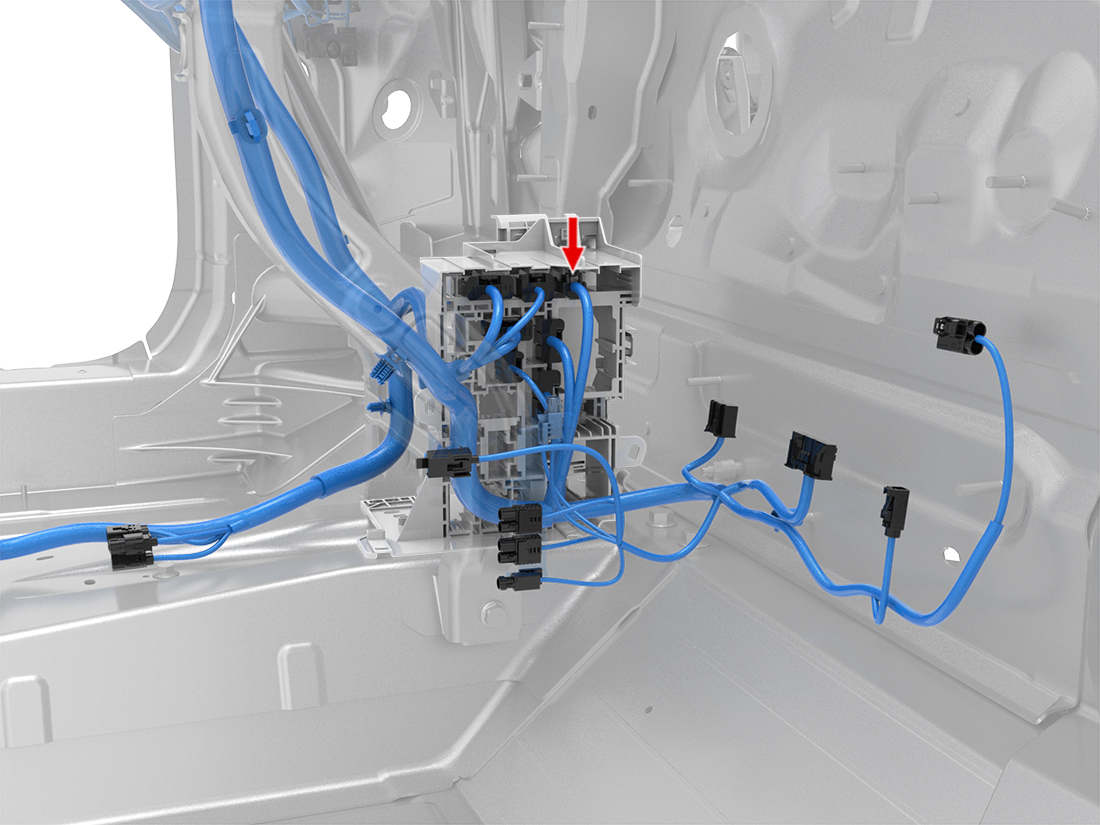

Location:
Connector Detail: Sumitomo 6098-0325
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/VT | 2 | SN | X921M-1 | Sumitomo 8240-4932 | 1099545-00-A | ||
| 2 | RD/WH | 2 | SN | X923M-1 | Sumitomo 8240-4932 | 1099545-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/VT | 2 | SN | X921M-1 | Sumitomo 8240-4932 | 1099545-00-A | ||
| 2 | RD/WH | 2 | SN | X923M-1 | Sumitomo 8240-4932 | 1099545-00-A |
