X916M - s-rhd-sop10

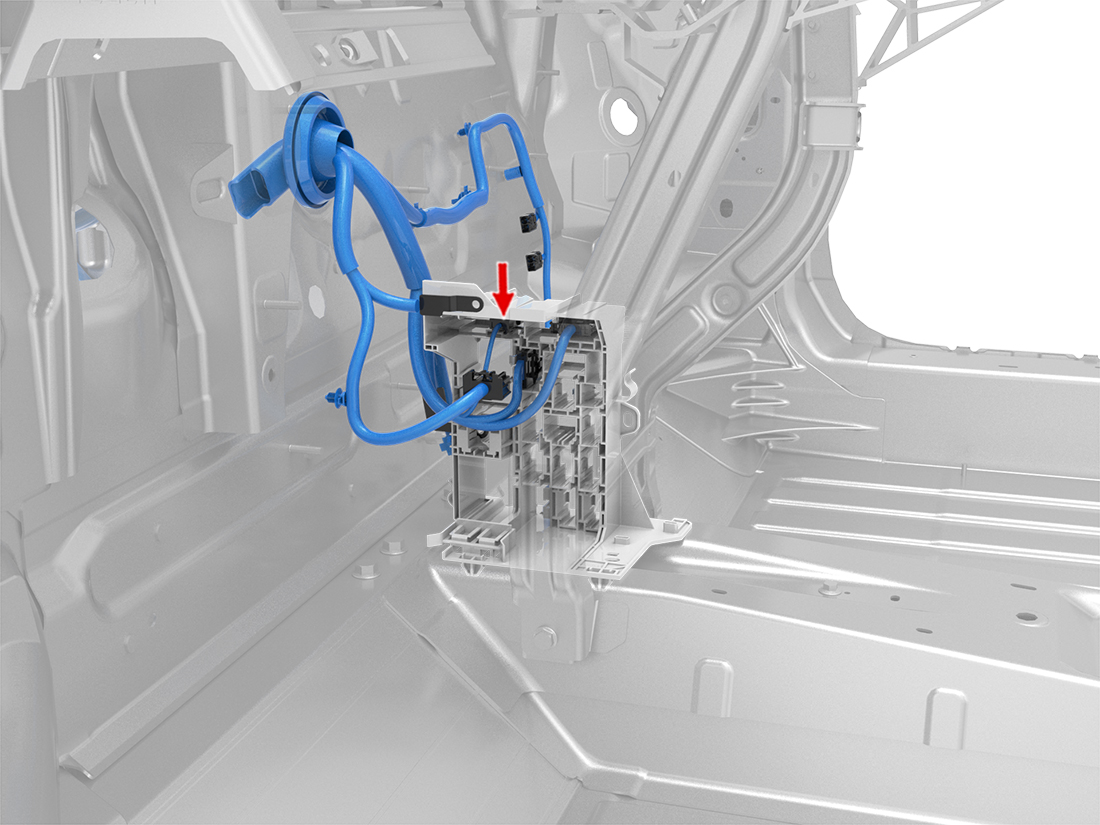

Location:
Location:
Connector Detail: Molex 33482-1202
Color: Gray
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-0323
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | RD/WH | 0.35 | SN | Z17-PRM21-L | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | BK | 0.35 | SN | G660-1 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 9 | VT/WH | 0.35 | SN | X778-11 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 10 | VT | 0.35 | SN | X778-22 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/VT | 2 | SN | X001-24 | Sumitomo 8230-4542 | 1102114-00-B | ||
| 2 | RD/WH | 2 | SN | X002-20 | Sumitomo 8230-4542 | 1102114-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/VT | 2 | SN | X001-24 | Sumitomo 8230-4542 | 1102114-00-B | ||
| 2 | RD/WH | 2 | SN | X002-20 | Sumitomo 8230-4542 | 1102114-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 3 | RD/WH | 0.35 | SN | Z17-PRM21-R | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 4 | BK | 0.35 | SN | G660-1 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 9 | VT/WH | 0.35 | SN | X778-11 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 10 | VT | 0.35 | SN | X778-22 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
