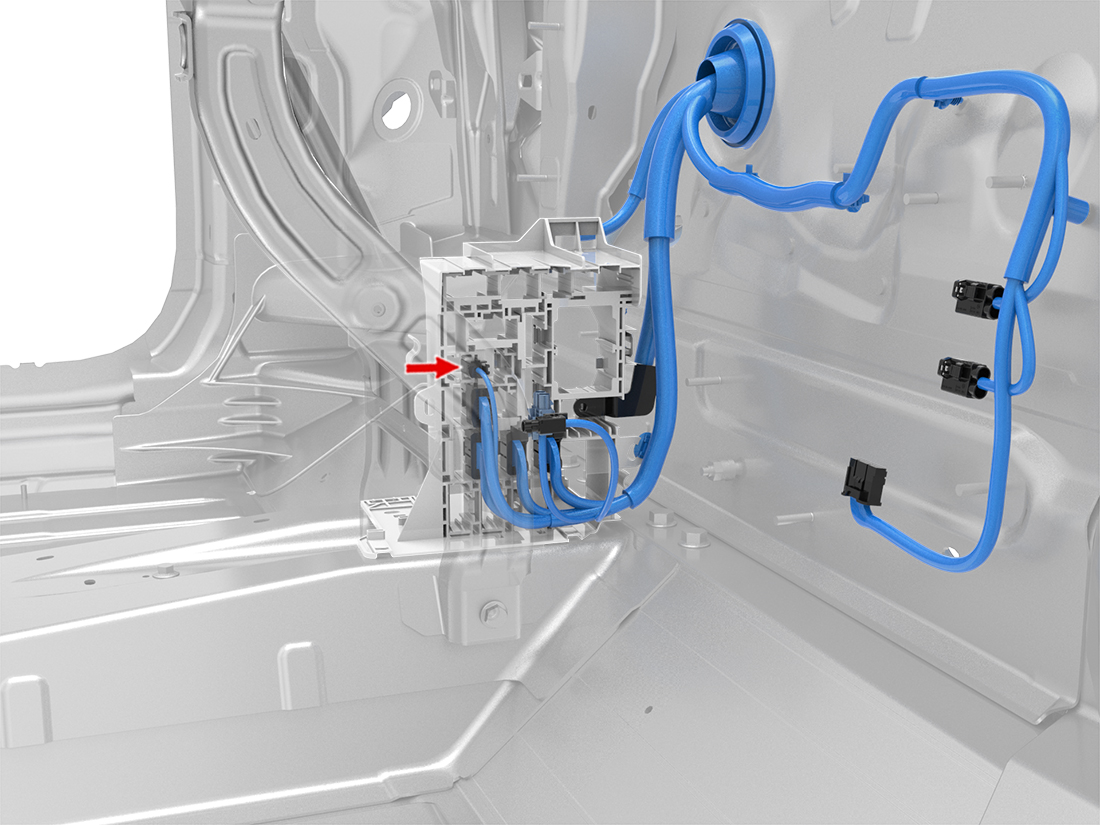

X917F - s-rhd-sop10
Location:
Location:
Connector Detail: Molex 33471-0492
Color: Yellow
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-0824
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK/VT | 0.5 | AU | X201-35 | Molex 33001-3005 | Tesla MAT-120-240 | 1099513-00-A | 1116485-00-A |
| 2 | BK/GY | 0.5 | AU | X201-36 | Molex 33001-3005 | Tesla MAT-120-240 | 1099513-00-A | 1116485-00-A |
| 3 | BK | 0.5 | AU | G660-1 | Molex 33001-3005 | Tesla MAT-120-240 | 1099513-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 2 | SN | X003-9 | Sumitomo 8240-4932 | 1099545-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 2 | SN | X003-9 | Sumitomo 8240-4932 | 1099545-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BK/VT | 0.5 | AU | X201-25 | Molex 33001-3005 | Tesla MAT-120-240 | 1099513-00-A | 1116485-00-A |
| 2 | BK/GY | 0.5 | AU | X201-26 | Molex 33001-3005 | Tesla MAT-120-240 | 1099513-00-A | 1116485-00-A |
| 3 | BK | 0.5 | AU | G660-1 | Molex 33001-3005 | Tesla MAT-120-240 | 1099513-00-A | 1116485-00-A |
