X917M - s-rhd-sop10

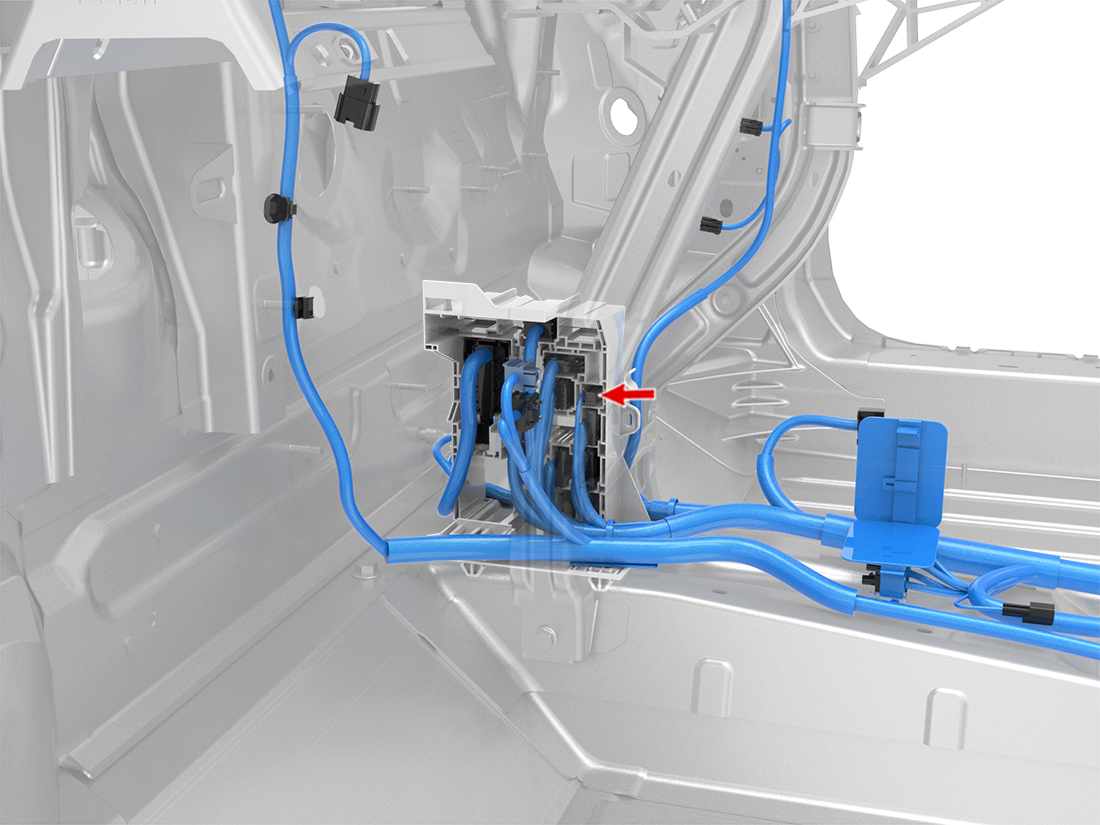

Location:

Connector Detail: SUMITOMO 6098-0822
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 2 | SN | X956M-1 | SUMITOMO 8230-4542 | 1102114-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/GN | 2 | SN | X956M-1 | SUMITOMO 8230-4542 | 1102114-00-B |
