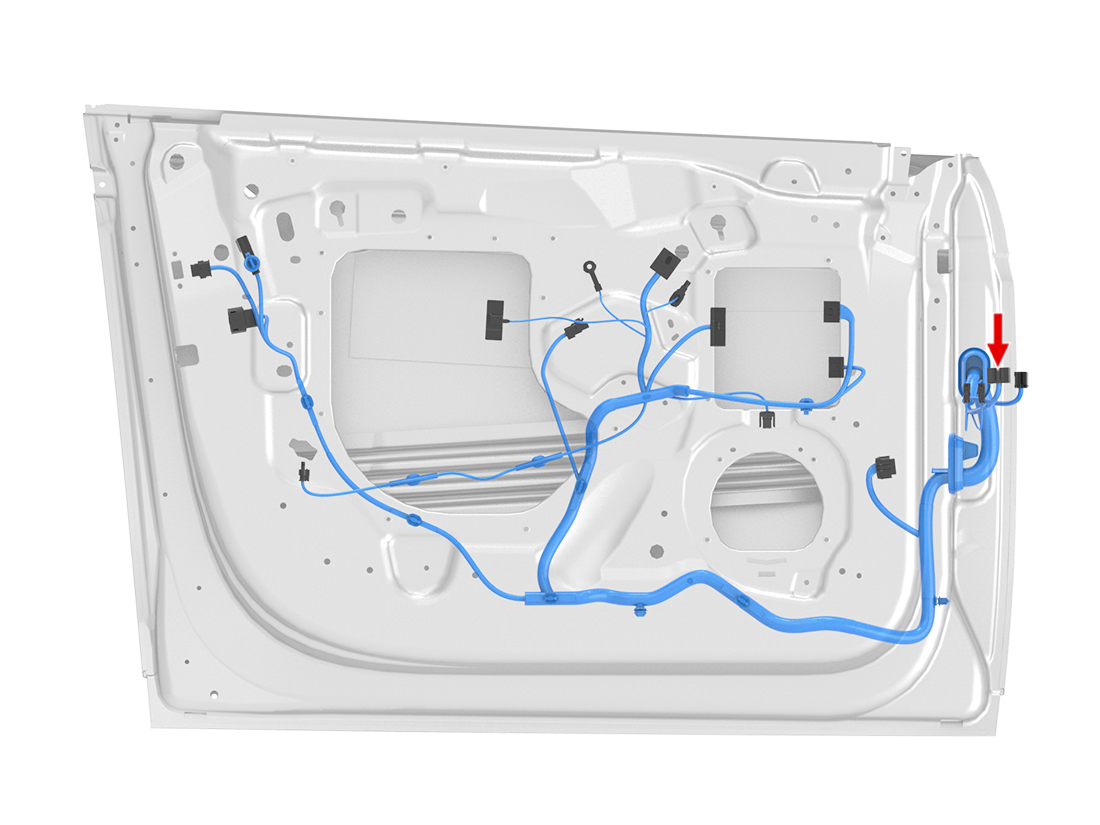

Location:
Connector Detail: Sumitomo 6098-5609
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 1.5 | SN | X373-3 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 5 | YE | 0.35 | SN | X204-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | BN/WH | 0.35 | SN | X361-31 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 8 | WH | 0.35 | SN | X361-39 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 9 | BK | 0.35 | SN | X361-13 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 10 | BU/WH | 1 | SN | X568-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 11 | BK | 1.5 | SN | X373-4 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 13 | BK | 0.35 | SN | X361-14 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 14 | VT | 0.35 | SN | X204-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | BN | 0.35 | SN | X361-30 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 16 | GY | 0.35 | SN | X361-38 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 17 | BK | 1.5 | SN | GND_A_LH_2-1 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 18 | BU | 1 | SN | X568-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 1.5 | SN | X373-3 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 5 | YE | 0.35 | SN | X204-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | BN/WH | 0.35 | SN | X361-31 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 8 | WH | 0.35 | SN | X361-39 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 9 | BK | 0.35 | SN | X361-13 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 10 | BU/WH | 1 | SN | X568-1 | Sumitomo 8240-0213 | | 1099539-00-A | |
| 11 | BK | 1.5 | SN | X373-4 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 13 | BK | 0.35 | SN | X361-14 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 14 | VT | 0.35 | SN | X204-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 15 | BN | 0.35 | SN | X361-30 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 16 | GY | 0.35 | SN | X361-38 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 17 | BK | 1.5 | SN | GND_A_LH_2-1 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 18 | BU | 1 | SN | X568-2 | Sumitomo 8240-0213 | | 1099539-00-A | |
