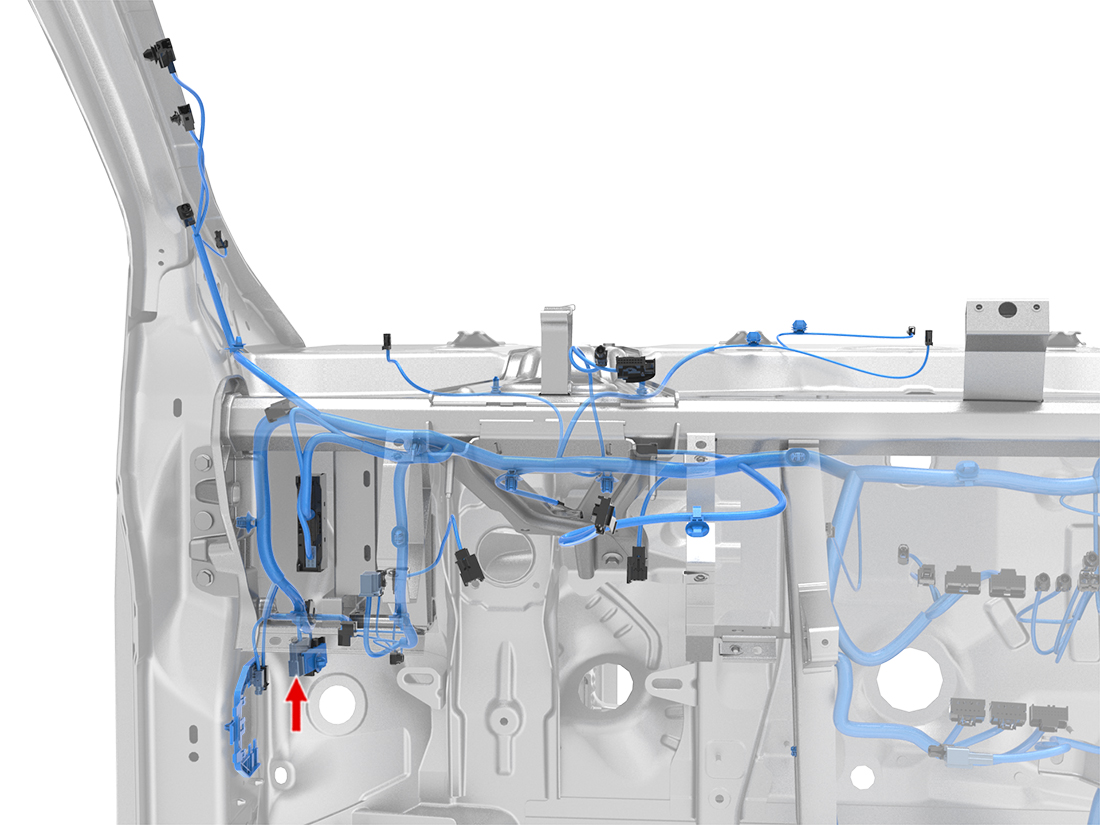

Location:
Connector Detail: Sumitomo 6098-5600
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 1.5 | SN | X926F-1 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 5 | YE | 0.35 | SN | X926F-5 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 6 | BN/WH | 0.35 | SN | X728-2 | Sumitomo 8100-3622 | | 1099529-00-A | |
| 8 | WH | 0.13 | SN | X925F-8 | Sumitomo 8230-4878 | | 1099529-00-A | |
| 10 | BU/WH | 0.75 | SN | X175-3 | Sumitomo 8230-4924 | | 1099536-00-A | |
| 10 | BU/WH | 1 | SN | X560-3 | Sumitomo 8230-4924 | | 1099536-00-A | |
| 11 | BK | 1.5 | SN | GND_IP_L-1 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 13 | BK | 0.35 | SN | GND_IP_L-1 | Sumitomo 8100-3622 | | 1099529-00-A | |
| 14 | VT | 0.35 | SN | X926F-14 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 15 | BN | 0.35 | SN | X728-13 | Sumitomo 8100-3622 | | 1099529-00-A | |
| 16 | GY | 0.13 | SN | X925F-14 | Sumitomo 8230-4878 | | 1099529-00-A | |
| 17 | BK | 1.5 | SN | GND_IP_L-1 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 18 | BU | 0.75 | SN | X175-4 | Sumitomo 8230-4924 | | 1099536-00-A | |
| 18 | BU | 1 | SN | X560-15 | Sumitomo 8230-4924 | | 1099536-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | GY | 1.5 | SN | X926F-1 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 5 | YE | 0.35 | SN | X926F-5 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 6 | BN/WH | 0.35 | SN | X728-2 | Sumitomo 8100-3622 | | 1099529-00-A | |
| 8 | WH | 0.13 | SN | X925F-8 | Sumitomo 8230-4878 | | 1099529-00-A | |
| 9 | BK | 0.35 | SN | GND_IP_L-1 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 10 | BU/WH | 0.75 | SN | X175-3 | Sumitomo 8230-4924 | | 1099536-00-A | |
| 10 | BU/WH | 1 | SN | X560-3 | Sumitomo 8230-4924 | | 1099536-00-A | |
| 11 | BK | 1.5 | SN | GND_IP_L-1 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 14 | VT | 0.35 | SN | X926F-14 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 15 | BN | 0.35 | SN | X728-13 | Sumitomo 8100-3622 | | 1099529-00-A | |
| 16 | GY | 0.13 | SN | X925F-14 | Sumitomo 8230-4878 | | 1099529-00-A | |
| 17 | BK | 1.5 | SN | GND_IP_L-1 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 18 | BU | 0.75 | SN | X175-4 | Sumitomo 8230-4924 | | 1099536-00-A | |
| 18 | BU | 1 | SN | X560-15 | Sumitomo 8230-4924 | | 1099536-00-A | |
