X921F - s-rhd-sop10

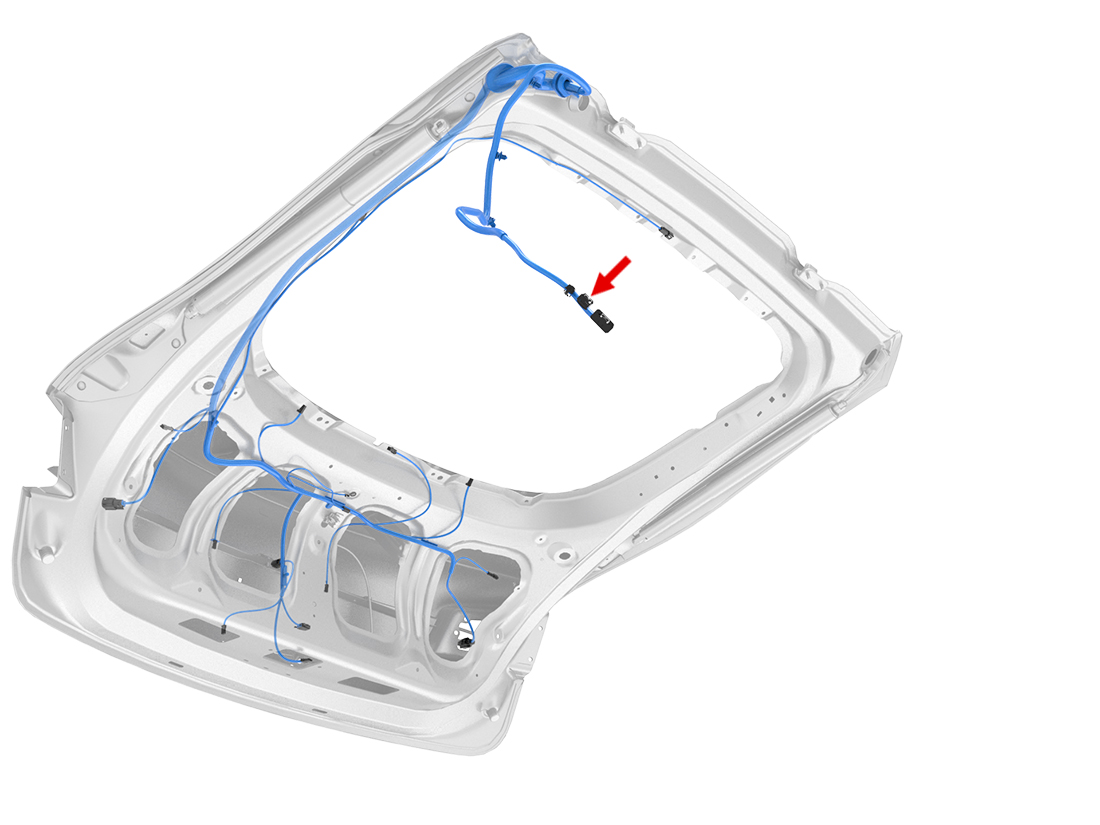

Location:

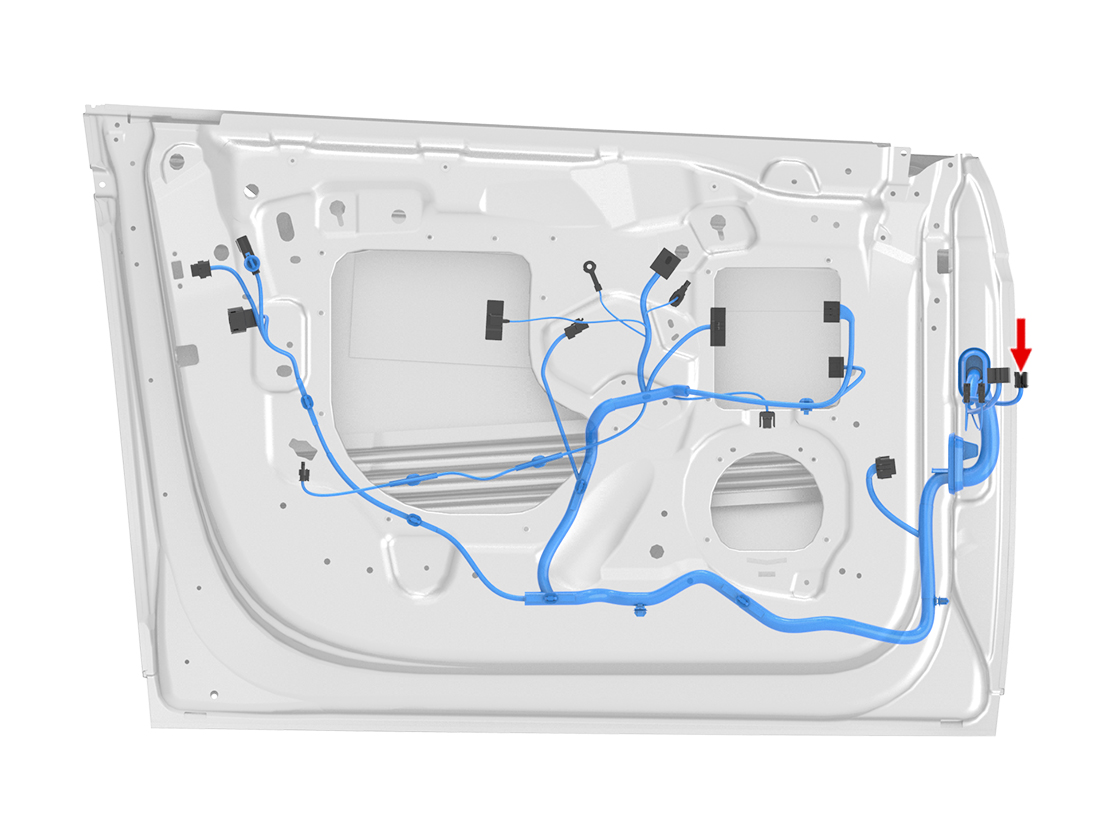

Location:
Connector Detail: Sumitomo 6098-0325
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-3917
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/RD | 0.35 | SN | X292-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 2 | WH/BU | 0.35 | SN | X385-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | BN | 0.35 | SN | X385-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | OG | 0.35 | SN | Z41-EXL30-L | Sumitomo 8100-3625 | 1099530-00-A | ||
| 5 | RD/GY | 0.5 | SN | X271-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | RD/BK | 0.5 | SN | X271-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 8 | GY/WH | 0.35 | SN | X387-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 9 | BU | 0.35 | SN | X385-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | WH/BK | 0.5 | SN | X269-A | Sumitomo 8100-3625 | 1099530-00-A | ||
| 12 | BN/WH | 0.5 | SN | X273-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 13 | VT | 0.5 | SN | X273-3 | Sumitomo 8100-3625 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/VT | 2 | SN | X362-1 | Sumitomo 8240-4932 | 1099545-00-A | ||
| 2 | BK | 2 | SN | X362-5 | Sumitomo 8240-4932 | 1099545-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/VT | 2 | SN | X362-1 | Sumitomo 8240-4932 | 1099545-00-A | ||
| 2 | BK | 2 | SN | X362-5 | Sumitomo 8240-4932 | 1099545-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/RD | 0.35 | SN | X292-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 2 | WH/BU | 0.35 | SN | X385-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 3 | BN | 0.35 | SN | X385-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | OG | 0.35 | SN | Z41-EXL30-L | Sumitomo 8100-3625 | 1099530-00-A | ||
| 5 | RD/GY | 0.5 | SN | X271-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | RD/BK | 0.5 | SN | X271-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 8 | GY/WH | 0.35 | SN | X387-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 9 | BU | 0.35 | SN | X385-4 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | WH/BK | 0.5 | SN | X269-A | Sumitomo 8100-3625 | 1099530-00-A | ||
| 12 | BN/WH | 0.5 | SN | X273-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 13 | VT | 0.5 | SN | X273-3 | Sumitomo 8100-3625 | 1099530-00-A |
