X921M - s-rhd-sop10

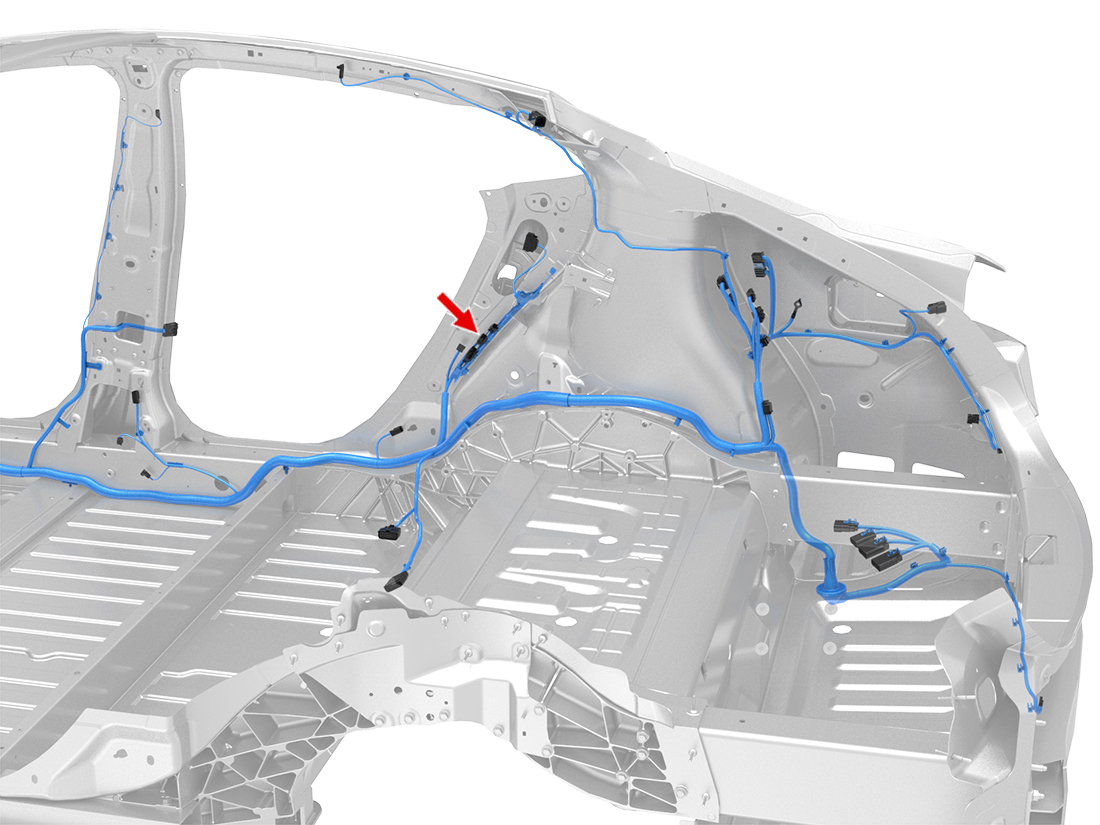

Location:

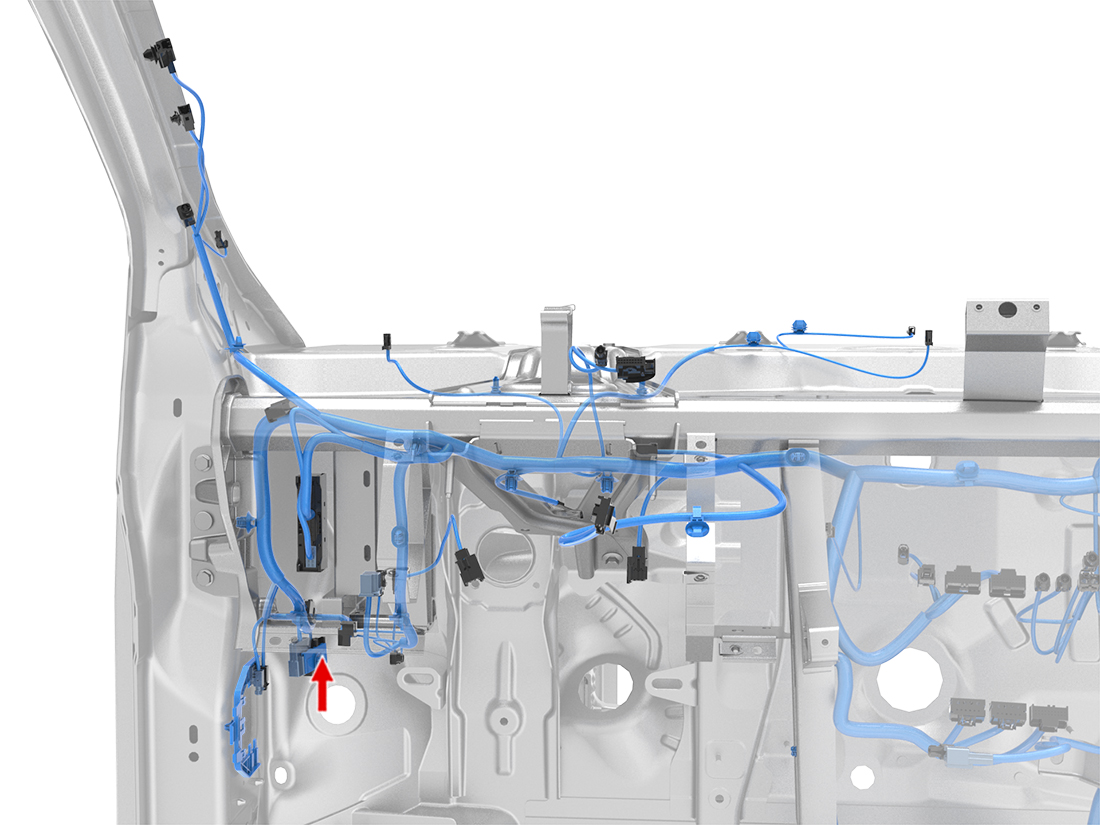

Location:
Connector Detail: Sumitomo 6098-0323
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-3877
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/RD | 0.35 | SN | X988F-11 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 2 | WH/BU | 0.35 | SN | X774-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 3 | BN | 0.35 | SN | X988F-12 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | OG | 0.35 | SN | X988F-25 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 5 | RD/GY | 0.35 | SN | X988F-20 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 6 | RD/BK | 0.35 | SN | X977F-7 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 8 | GY/WH | 0.35 | SN | X988F-13 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 9 | BU | 0.35 | SN | X774-17 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 11 | WH/BK | 0.35 | SN | X977F-15 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 12 | BN/WH | 0.35 | SN | Z48-EXL25-R | Sumitomo 8100-3623 | 1099529-00-A | ||
| 13 | VT | 0.35 | SN | X977F-16 | Sumitomo 8100-3623 | 1099529-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/VT | 2 | SN | X916F-1 | Sumitomo 8230-4542 | 1102114-00-B | ||
| 2 | BK | 2 | SN | GND_IP_L-1 | Sumitomo 8230-4542 | 1102114-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD/VT | 2 | SN | X916F-1 | Sumitomo 8230-4542 | 1102114-00-B | ||
| 2 | BK | 2 | SN | GND_IP_L-1 | Sumitomo 8230-4542 | 1102114-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | WH/RD | 0.35 | SN | X988F-11 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 2 | WH/BU | 0.35 | SN | X774-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 3 | BN | 0.35 | SN | X988F-12 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | OG | 0.35 | SN | X988F-25 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 5 | RD/GY | 0.35 | SN | X988F-20 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 6 | RD/BK | 0.35 | SN | X977F-7 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 8 | GY/WH | 0.35 | SN | X988F-13 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 9 | BU | 0.35 | SN | X774-17 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 11 | WH/BK | 0.35 | SN | X977F-15 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 12 | BN/WH | 0.35 | SN | Z48-EXL25-R | Sumitomo 8100-3623 | 1099529-00-A | ||
| 13 | VT | 0.35 | SN | X977F-16 | Sumitomo 8100-3623 | 1099529-00-A |
