X922F - s-rhd-sop10

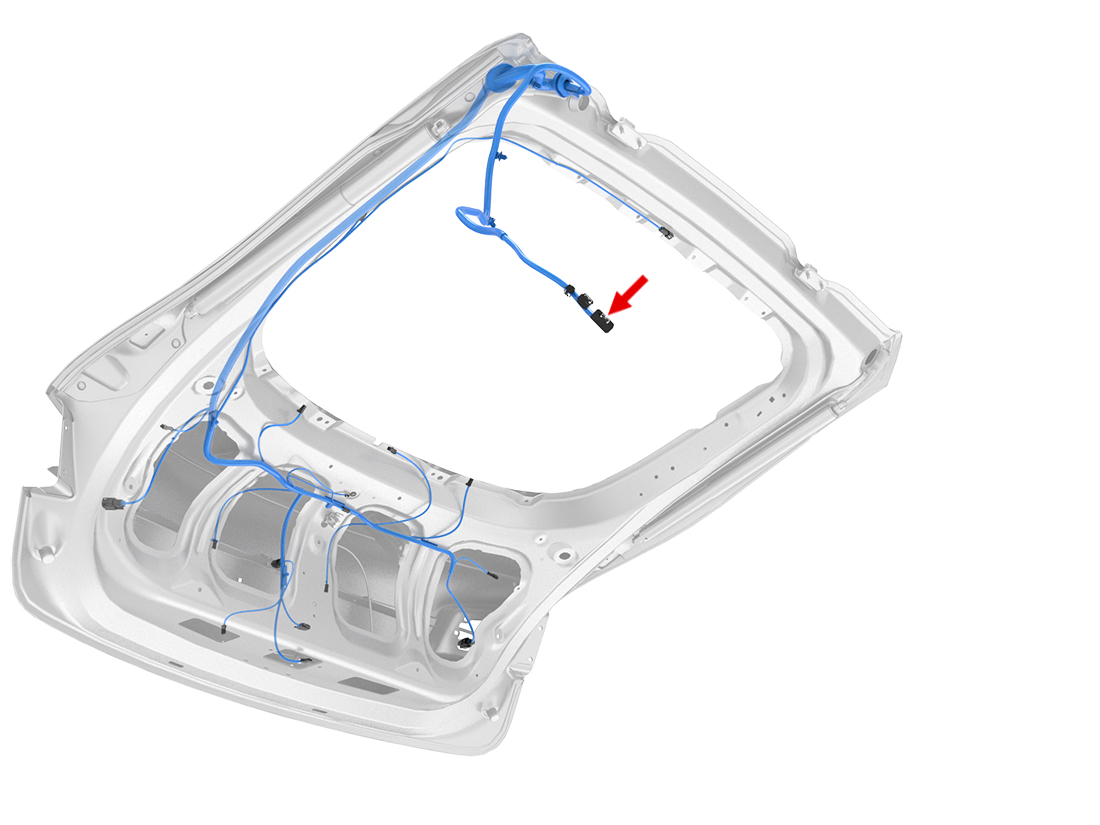

Location:

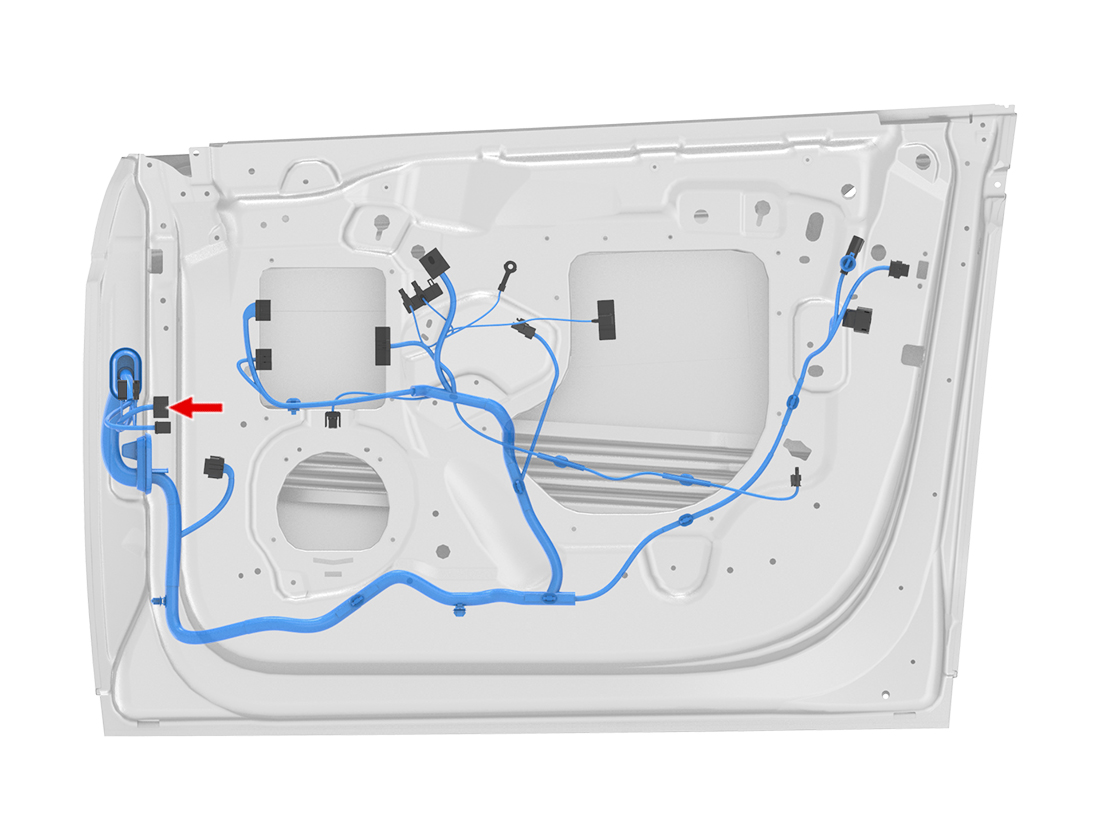

Location:
Connector Detail: Sumitomo 6098-5604
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-5609
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.75 | SN | X420-1 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 2 | VT | 0.75 | SN | X420-2 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 3 | GY/WH | 0.35 | SN | X389-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | WH/BK | 0.35 | SN | Z53-PLG18-L | Sumitomo 8100-3625 | 1099530-00-A | ||
| 5 | BN | 0.35 | SN | X396-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | OG/BK | 0.35 | SN | X394-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 8 | VT/WH | 0.35 | SN | X398-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | GN | 0.75 | SN | X421-1 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 12 | BK | 0.75 | SN | X421-2 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 13 | GY | 0.35 | SN | X390-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 14 | BN/WH | 0.35 | SN | X396-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 15 | OG | 0.35 | SN | X394-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 16 | WH | 0.35 | SN | X398-2 | Sumitomo 8100-3625 | 1099530-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 1.5 | SN | X403-3 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 2 | RD/GN | 0.75 | SN | Z128-PRM26-R | Sumitomo 8240-0213 | 1099539-00-A | ||
| 5 | YE | 0.35 | SN | X205-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | BN/WH | 0.35 | SN | X391-31 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 8 | WH | 0.35 | SN | X391-39 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 9 | BK | 0.35 | SN | X391-14 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 10 | GN/WH | 1 | SN | X578-1 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 11 | BK | 1.5 | SN | X403-4 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 13 | BK | 0.35 | SN | X391-13 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 14 | WH | 0.35 | SN | X205-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 15 | BN | 0.35 | SN | X391-30 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 16 | GY | 0.35 | SN | X391-38 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 17 | BK | 1.5 | SN | GND_A_RH_2-1 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 18 | GN | 1 | SN | X578-2 | Sumitomo 8240-0213 | 1099539-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 1.5 | SN | X403-3 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 2 | RD/GN | 0.75 | SN | Z128-PRM26-R | Sumitomo 8240-0213 | 1099539-00-A | ||
| 5 | YE | 0.35 | SN | X205-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | BN/WH | 0.35 | SN | X391-31 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 8 | WH | 0.35 | SN | X391-39 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 9 | BK | 0.35 | SN | X391-14 | Sumitomo 8240-0215 | 1099541-00-A | ||
| 10 | GN/WH | 1 | SN | X578-1 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 11 | BK | 1.5 | SN | X403-4 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 13 | BK | 0.35 | SN | X391-13 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 14 | WH | 0.35 | SN | X205-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 15 | BN | 0.35 | SN | X391-30 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 16 | GY | 0.35 | SN | X391-38 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 17 | BK | 1.5 | SN | GND_A_RH_2-1 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 18 | GN | 1 | SN | X578-2 | Sumitomo 8240-0213 | 1099539-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.75 | SN | X420-1 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 2 | VT | 0.75 | SN | X420-2 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 3 | GY/WH | 0.35 | SN | X389-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 4 | WH/BK | 0.35 | SN | Z53-PLG18-L | Sumitomo 8100-3625 | 1099530-00-A | ||
| 5 | BN | 0.35 | SN | X396-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 6 | OG/BK | 0.35 | SN | X394-3 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 8 | VT/WH | 0.35 | SN | X398-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 11 | GN | 0.75 | SN | X421-1 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 12 | BK | 0.75 | SN | X421-2 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 13 | GY | 0.35 | SN | X390-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 14 | BN/WH | 0.35 | SN | X396-2 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 15 | OG | 0.35 | SN | X394-1 | Sumitomo 8100-3625 | 1099530-00-A | ||
| 16 | WH | 0.35 | SN | X398-2 | Sumitomo 8100-3625 | 1099530-00-A |
