X922M - s-rhd-sop10

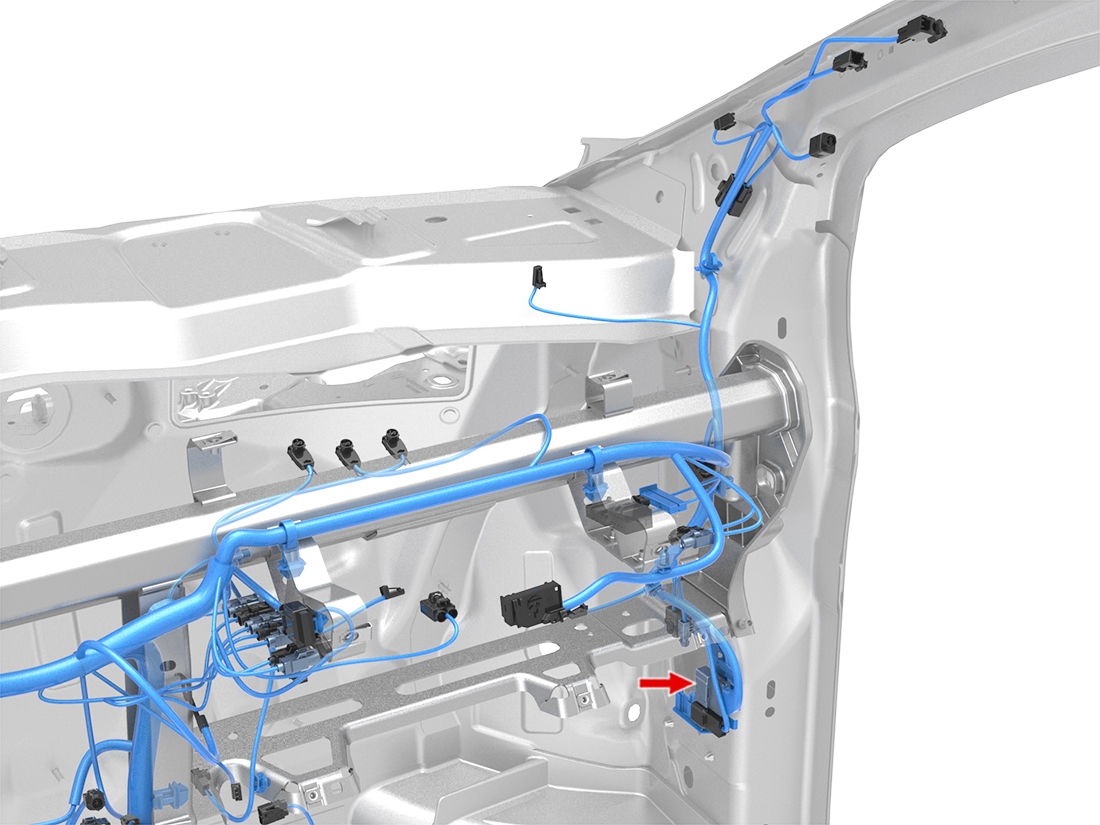

Location:

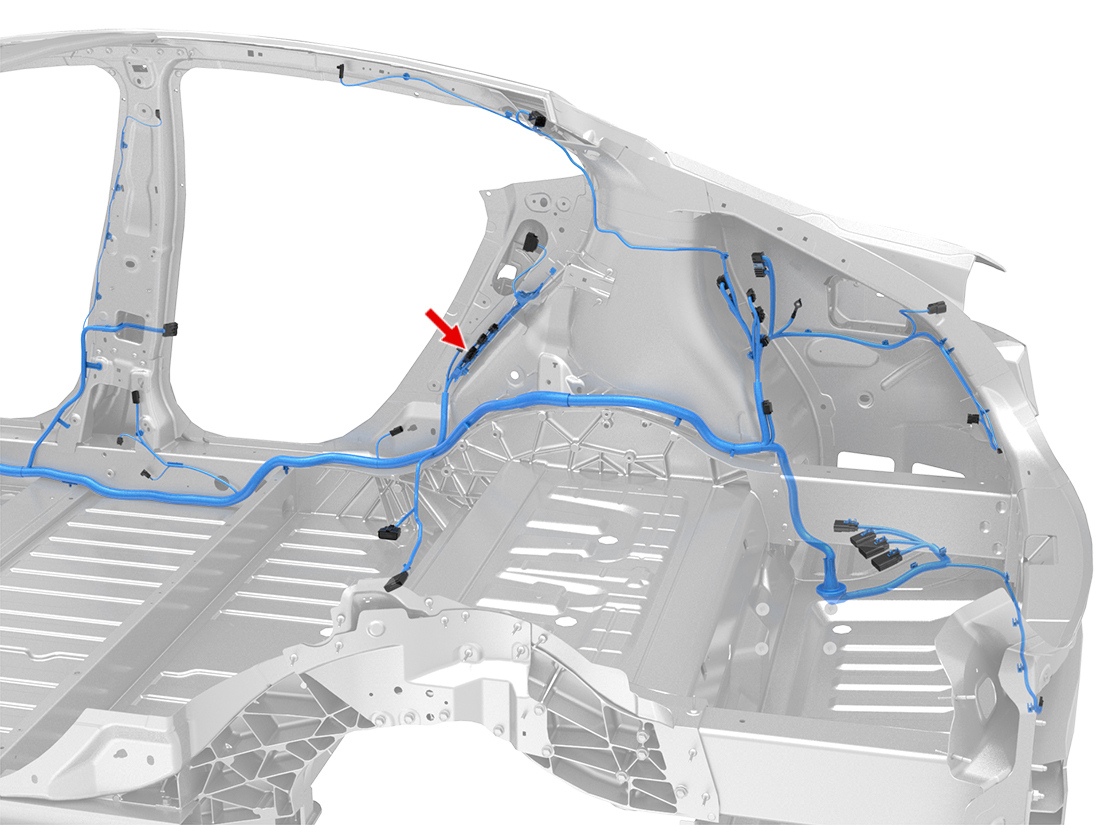

Location:
Connector Detail: Sumitomo 6098-5594
Color: WH
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-5600
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.75 | SN | X970M-6 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 2 | VT | 0.75 | SN | X970M-11 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 3 | GY/WH | 0.35 | SN | X393-17 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | WH/BK | 0.35 | SN | X397-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 5 | BN | 0.35 | SN | X397-5 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 6 | OG/BK | 0.35 | SN | X393-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 8 | VT/WH | 0.35 | SN | X393-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 11 | GN | 0.75 | SN | X970M-7 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 12 | BK | 0.75 | SN | X970M-12 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 13 | GY | 0.35 | SN | X393-18 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 14 | BN/WH | 0.35 | SN | X397-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 15 | OG | 0.35 | SN | X393-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 16 | WH | 0.35 | SN | X393-11 | Sumitomo 8100-3623 | 1099529-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 1.5 | SN | X924F-1 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 5 | YE | 0.35 | SN | X926F-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 6 | BN/WH | 0.35 | SN | X734-3 | Sumitomo 8100-3622 | 1099529-00-A | ||
| 8 | WH | 0.13 | SN | X927F-2 | Sumitomo 8230-4878 | 1099529-00-A | ||
| 10 | GN/WH | 0.75 | SN | X175-1 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 10 | GN/WH | 1 | SN | X560-4 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 11 | BK | 1.5 | SN | GND_IP_R-1 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 13 | BK | 0.35 | SN | GND_IP_R-1 | Sumitomo 8100-3622 | 1099529-00-A | ||
| 14 | WH | 0.35 | SN | X926F-15 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 15 | BN | 0.35 | SN | X734-14 | Sumitomo 8100-3622 | 1099529-00-A | ||
| 16 | GY | 0.13 | SN | X927F-9 | Sumitomo 8230-4878 | 1099529-00-A | ||
| 17 | BK | 1.5 | SN | GND_IP_R-1 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 18 | GN | 0.75 | SN | X175-2 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 18 | GN | 1 | SN | X560-16 | Sumitomo 8230-4924 | 1099536-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 1.5 | SN | X924F-1 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 5 | YE | 0.35 | SN | X926F-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 6 | BN/WH | 0.35 | SN | X734-3 | Sumitomo 8100-3622 | 1099529-00-A | ||
| 8 | WH | 0.13 | SN | X927F-2 | Sumitomo 8230-4878 | 1099529-00-A | ||
| 9 | BK | 0.35 | SN | GND_IP_R-1 | Sumitomo 8230-4925 | 1099537-00-A | ||
| 10 | GN/WH | 0.75 | SN | X175-1 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 10 | GN/WH | 1 | SN | X560-4 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 11 | BK | 1.5 | SN | GND_IP_R-1 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 14 | WH | 0.35 | SN | X926F-15 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 15 | BN | 0.35 | SN | X734-14 | Sumitomo 8100-3622 | 1099529-00-A | ||
| 16 | GY | 0.13 | SN | X927F-9 | Sumitomo 8230-4878 | 1099529-00-A | ||
| 17 | BK | 1.5 | SN | GND_IP_R-1 | Sumitomo 8230-4923 | 1099534-00-A | ||
| 18 | GN | 0.75 | SN | X175-2 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 18 | GN | 1 | SN | X560-16 | Sumitomo 8230-4924 | 1099536-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 0.75 | SN | X970M-6 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 2 | VT | 0.75 | SN | X970M-11 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 3 | GY/WH | 0.35 | SN | X393-17 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | WH/BK | 0.35 | SN | X397-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 5 | BN | 0.35 | SN | X397-5 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 6 | OG/BK | 0.35 | SN | X393-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 8 | VT/WH | 0.35 | SN | X393-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 11 | GN | 0.75 | SN | X970M-7 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 12 | BK | 0.75 | SN | X970M-12 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 13 | GY | 0.35 | SN | X393-18 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 14 | BN/WH | 0.35 | SN | X397-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 15 | OG | 0.35 | SN | X393-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 16 | WH | 0.35 | SN | X393-11 | Sumitomo 8100-3623 | 1099529-00-A |
