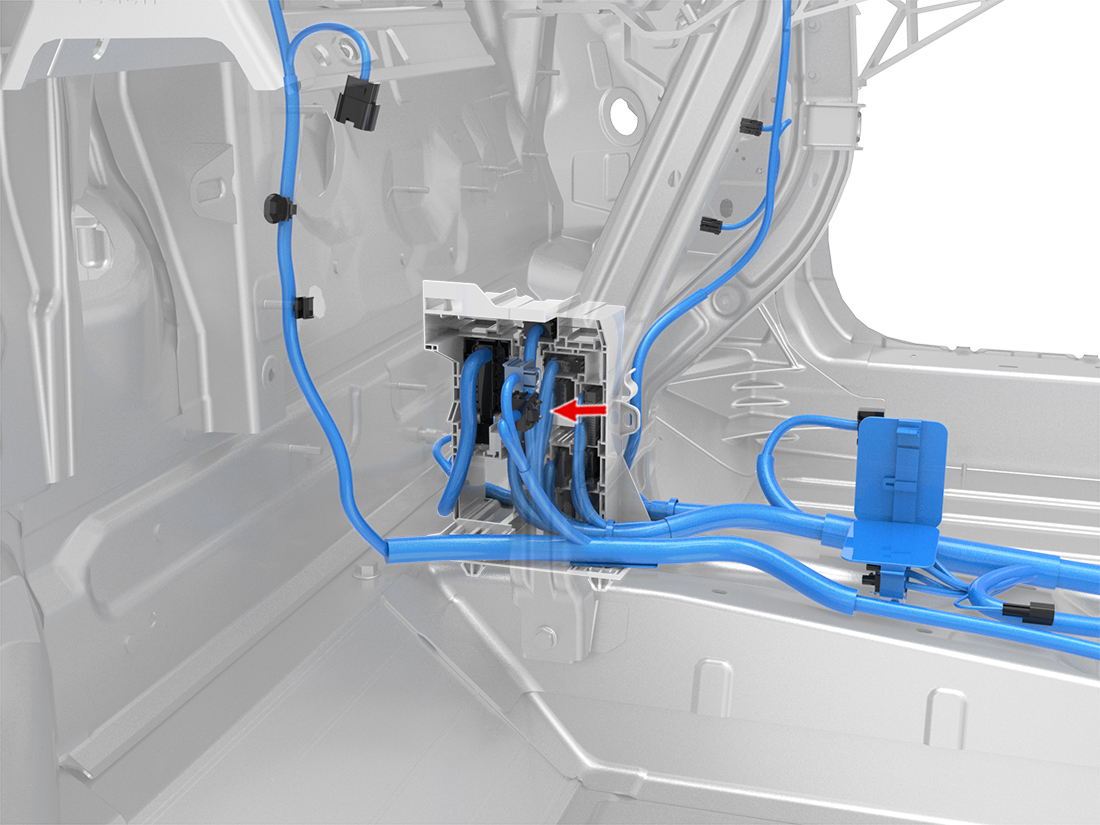

Location:
Connector Detail: YAZAKI 7286-1918-40
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 1.5 | SN | X027-7 | SUMITOMO 8230-4923 | | 1099534-00-A | |
| 2 | BK | 0.13 | SN | X684-8 | SUMITOMO 8230-4878 | | 1099529-00-A | |
| 3 | RD | 0.13 | SN | X980M-4 | SUMITOMO 8230-4878 | | 1099529-00-A | |
| 4 | GN | 0.13 | SN | X980M-2 | SUMITOMO 8230-4878 | | 1099529-00-A | |
| 5 | RD | 0.5 | SN | X930F-3 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 6 | SI | 0.35 | SN | X930F-5 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 8 | WH | 0.13 | SN | X708-1 | SUMITOMO 8230-4878 | | 1099529-00-A | |
| 10 | BU/WH | 0.35 | SN | X700-3 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 12 | GN/WH | 0.5 | SN | X099-7 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 13 | BU | 0.35 | SN | X940-10 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 14 | RD/WH | 1.5 | SN | X027-5 | SUMITOMO 8230-4923 | | 1099534-00-A | |
| 16 | BK | 0.13 | SN | X685-8 | SUMITOMO 8230-4878 | | 1099529-00-A | |
| 17 | BU | 0.35 | SN | X708-20 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 18 | GY | 0.13 | SN | X980M-3 | SUMITOMO 8230-4878 | | 1099529-00-A | |
| 19 | BK | 0.5 | SN | X930F-4 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 21 | BN | 0.13 | SN | X708-12 | SUMITOMO 8230-4878 | | 1099529-00-A | |
| 22 | BU | 0.35 | SN | X700-9 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 24 | BN | 0.5 | SN | X980M-1 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 25 | GN | 0.35 | SN | X981M-7 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | BU | 1.5 | SN | X027-7 | SUMITOMO 8230-4923 | | 1099534-00-A | |
| 2 | BK | 0.13 | SN | X684-8 | SUMITOMO 8230-4878 | | 1099529-00-A | |
| 3 | RD | 0.13 | SN | X980M-4 | SUMITOMO 8230-4878 | | 1099529-00-A | |
| 4 | GN | 0.13 | SN | X980M-2 | SUMITOMO 8230-4878 | | 1099529-00-A | |
| 5 | RD | 0.5 | SN | X930F-3 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 6 | SI | 0.35 | SN | X930F-5 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 8 | WH | 0.13 | SN | X708-1 | SUMITOMO 8230-4878 | | 1099529-00-A | |
| 10 | BU/WH | 0.35 | SN | X700-3 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 12 | GN/WH | 0.5 | SN | X099-7 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 13 | BU | 0.35 | SN | X940-10 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 14 | RD/WH | 1.5 | SN | X027-5 | SUMITOMO 8230-4923 | | 1099534-00-A | |
| 16 | BK | 0.13 | SN | X685-8 | SUMITOMO 8230-4878 | | 1099529-00-A | |
| 17 | BU | 0.35 | SN | X708-20 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 18 | GY | 0.13 | SN | X980M-3 | SUMITOMO 8230-4878 | | 1099529-00-A | |
| 19 | BK | 0.5 | SN | X930F-4 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 21 | BN | 0.13 | SN | X708-12 | SUMITOMO 8230-4878 | | 1099529-00-A | |
| 22 | BU | 0.35 | SN | X700-9 | SUMITOMO 8100-3622 | | 1099529-00-A | |
| 24 | BN | 0.5 | SN | X980M-1 | SUMITOMO 8100-3623 | | 1099529-00-A | |
| 25 | GN | 0.35 | SN | X981M-7 | SUMITOMO 8100-3622 | | 1099529-00-A | |
