X925F - s-rhd-sop10

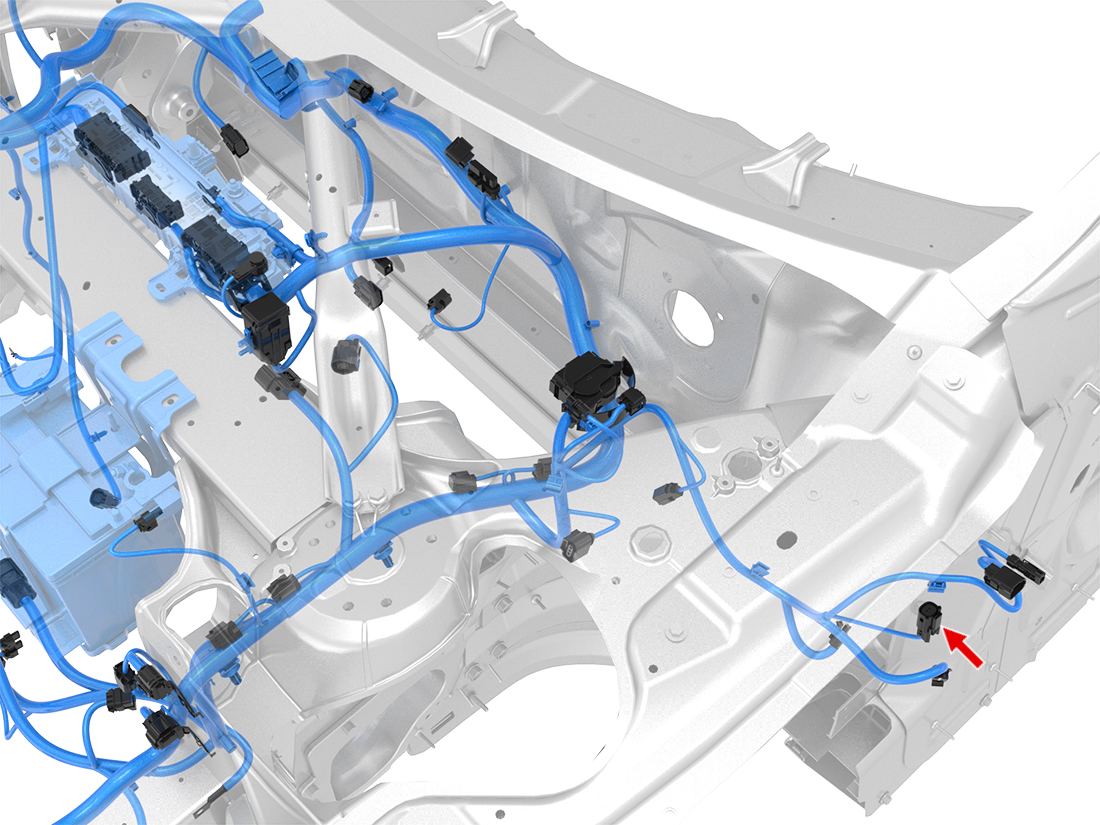

Location:
Location:
Connector Detail: Molex 33471-0201
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-5664
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.5 | SN | X955F-10 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | BK | 0.5 | SN | G500-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 1.5 | SN | X560-5 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 2 | BK | 1.5 | SN | X560-17 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 3 | BU | 0.75 | SN | X560-6 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 4 | VT | 0.75 | SN | X560-18 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 5 | GN | 0.75 | SN | X560-19 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 6 | BK | 0.75 | SN | X560-7 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 7 | RD | 1.5 | SN | X174-9 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 8 | WH | 0.13 | SN | X920M-8 | Sumitomo 8240-0182 | 1099530-00-A | ||
| 9 | WH | 0.35 | SN | X728-22 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 10 | RD/BU | 0.35 | SN | X728-8 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 12 | RD | 1.5 | SN | X174-5 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 13 | GY | 1.5 | SN | X174-10 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 14 | GY | 0.13 | SN | X920M-16 | Sumitomo 8240-0182 | 1099530-00-A | ||
| 15 | GN | 0.35 | SN | X171-11 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 16 | VT | 0.35 | SN | X728-16 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 18 | BU | 1.5 | SN | X174-6 | Sumitomo 8240-0214 | 1099540-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | BU | 1.5 | SN | X560-5 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 2 | BK | 1.5 | SN | X560-17 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 3 | BU | 0.75 | SN | X560-6 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 4 | VT | 0.75 | SN | X560-18 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 5 | GN | 0.75 | SN | X560-19 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 6 | BK | 0.75 | SN | X560-7 | Sumitomo 8240-0213 | 1099539-00-A | ||
| 7 | RD | 1.5 | SN | X174-9 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 8 | WH | 0.13 | SN | X920M-8 | Sumitomo 8240-0182 | 1099530-00-A | ||
| 9 | WH | 0.35 | SN | X728-22 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 10 | RD/BU | 0.35 | SN | X728-8 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 12 | RD | 1.5 | SN | X174-5 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 13 | GY | 1.5 | SN | X174-10 | Sumitomo 8240-0214 | 1099540-00-A | ||
| 14 | GY | 0.13 | SN | X920M-16 | Sumitomo 8240-0182 | 1099530-00-A | ||
| 15 | GN | 0.35 | SN | X171-11 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 16 | VT | 0.35 | SN | X728-16 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 17 | BK | 0.35 | SN | GND_IP_L-1 | Sumitomo 8100-3624 | 1099530-00-A | ||
| 18 | BU | 1.5 | SN | X174-6 | Sumitomo 8240-0214 | 1099540-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | VT | 0.5 | SN | X955F-10 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
| 2 | BK | 0.5 | SN | G500-1 | Molex 33012-3003 | Tesla MAT-120-240 | 1099518-00-A | 1116485-00-A |
