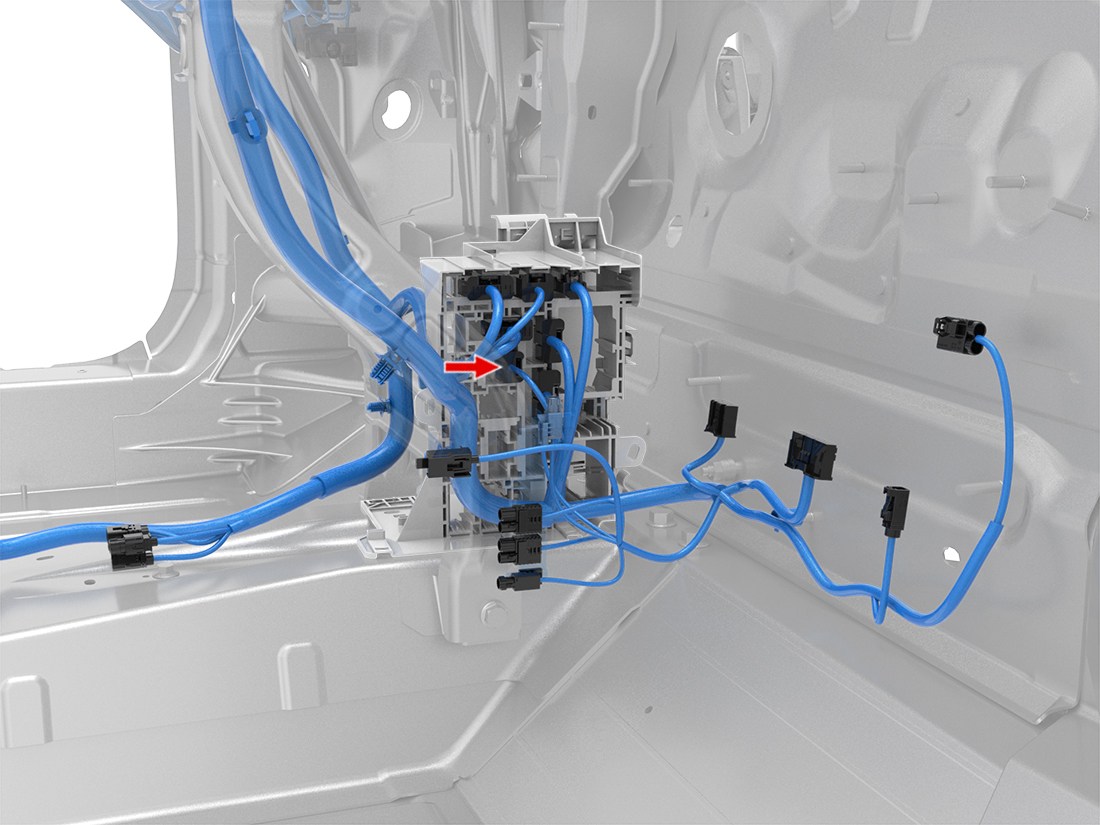

Location:
Connector Detail: Sumitomo 6098-6097
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | WH | 0.13 | SN | X922M-8 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 3 | BK | 0.35 | SN | GND_IP_R-1 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 4 | VT/WH | 0.35 | SN | X734-5 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 6 | GY/WH | 0.35 | SN | X179-7 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 9 | GY | 0.13 | SN | X922M-16 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 10 | VT | 0.35 | SN | X734-16 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 11 | GY | 0.35 | SN | X179-8 | Sumitomo 8100-3624 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 2 | WH | 0.13 | SN | X922M-8 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 4 | VT/WH | 0.35 | SN | X734-5 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 5 | BK | 0.35 | SN | GND_IP_R-1 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 6 | GY/WH | 0.35 | SN | X179-7 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 9 | GY | 0.13 | SN | X922M-16 | Sumitomo 8240-0182 | | 1099530-00-A | |
| 10 | VT | 0.35 | SN | X734-16 | Sumitomo 8100-3624 | | 1099530-00-A | |
| 11 | GY | 0.35 | SN | X179-8 | Sumitomo 8100-3624 | | 1099530-00-A | |
