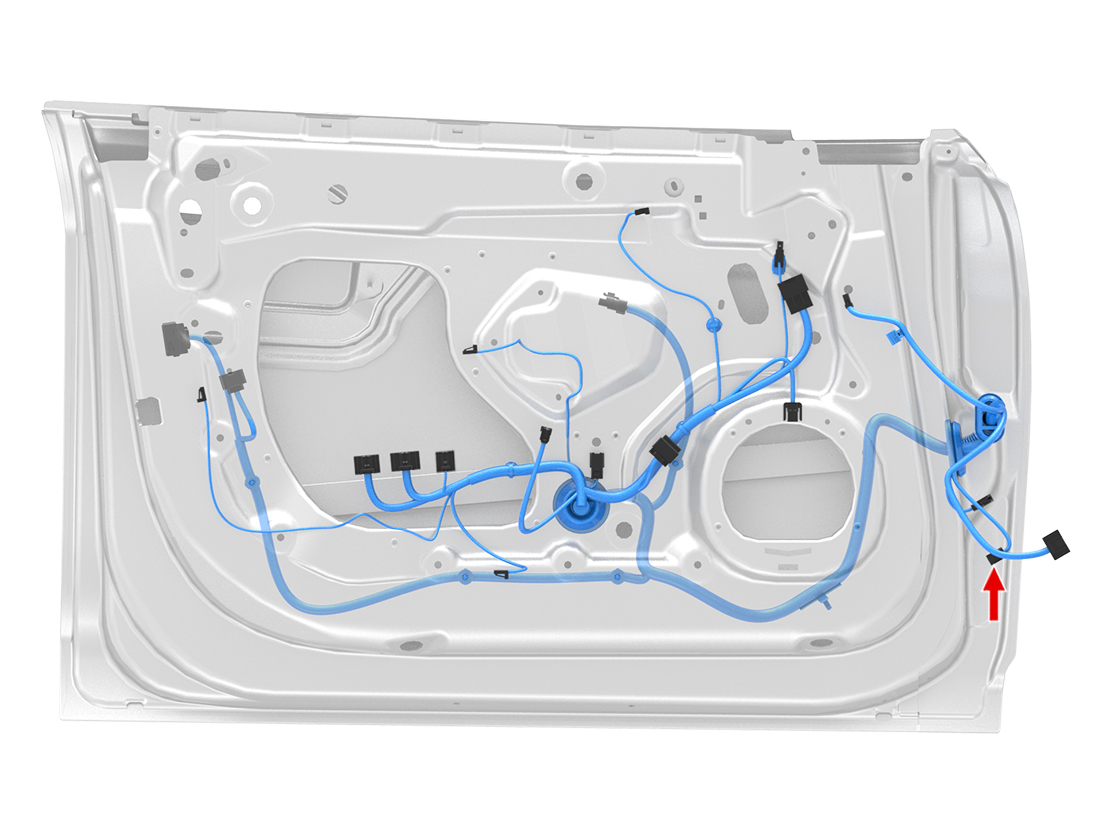

Location:
Connector Detail: Sumitomo 6098-3909
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | WH | 0.35 | SN | X301-16 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 2 | BN/WH | 0.35 | SN | X301-15 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | OG | 0.35 | SN | X302-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | BK/GY | 0.35 | SN | X301-22 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | VT | 0.35 | SN | Z6-DCL14-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | GY/WH | 0.35 | SN | X302-23 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | GY | 0.35 | SN | Z4-DCL15-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | GN/WH | 0.35 | SN | X301-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | WH | 0.35 | SN | X301-16 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 2 | BN/WH | 0.35 | SN | X301-15 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | OG | 0.35 | SN | X302-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | BK/GY | 0.35 | SN | X301-22 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | VT | 0.35 | SN | Z6-DCL14-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | GY/WH | 0.35 | SN | X302-23 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | GY | 0.35 | SN | Z4-DCL15-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | GN/WH | 0.35 | SN | X301-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
