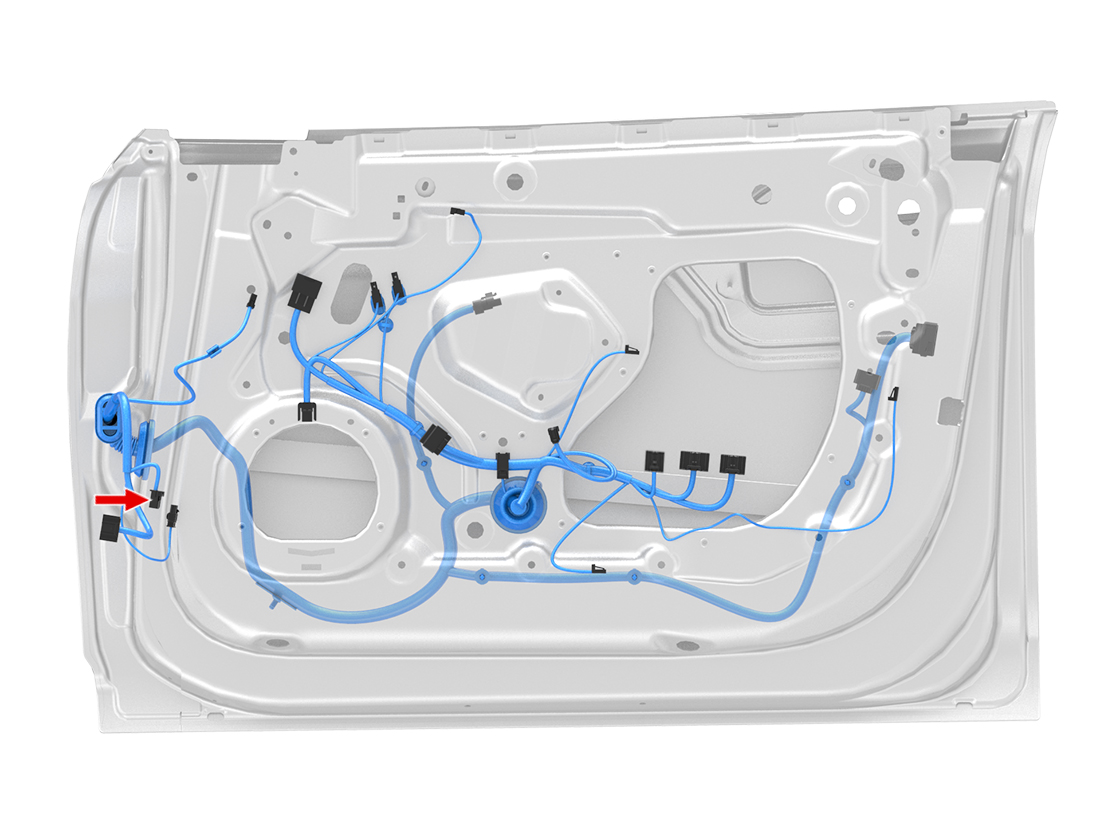

Location:
Connector Detail: Sumitomo 6098-3909
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | YE | 0.35 | SN | X331-16 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 2 | BN/WH | 0.35 | SN | X331-15 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | OG | 0.35 | SN | X332-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | BK/GY | 0.35 | SN | X331-22 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | VT | 0.35 | SN | Z12-DCR14-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | GY/WH | 0.35 | SN | X332-23 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | GY | 0.35 | SN | Z10-DCR15-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | GN/WH | 0.35 | SN | X331-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | YE | 0.35 | SN | X331-16 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 2 | BN/WH | 0.35 | SN | X331-15 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 3 | OG | 0.35 | SN | X332-2 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 4 | BK/GY | 0.35 | SN | X331-22 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 6 | VT | 0.35 | SN | Z12-DCR14-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | GY/WH | 0.35 | SN | X332-23 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | GY | 0.35 | SN | Z10-DCR15-L | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | GN/WH | 0.35 | SN | X331-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
