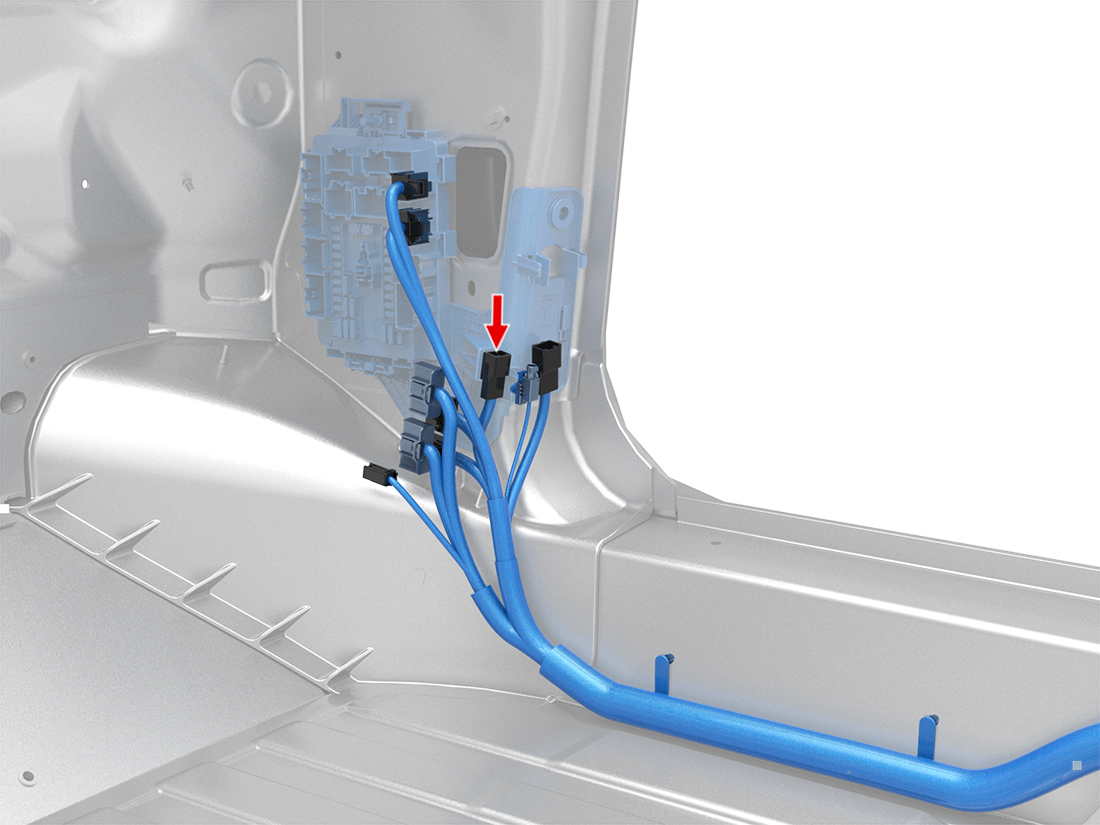

Location:
Connector Detail: Sumitomo 6098-3869
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | YE | 0.35 | SN | X946M-8 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 2 | BN/WH | 0.35 | SN | X946M-7 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 3 | OG | 0.35 | SN | X372-8 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 4 | BK/GY | 0.35 | SN | X372-9 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 6 | VT | 0.35 | SN | X946M-9 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 7 | GY/WH | 0.35 | SN | X372-2 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 8 | GY | 0.35 | SN | X946M-16 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 9 | GN/WH | 0.35 | SN | X946M-12 | Sumitomo 8100-3623 | | 1099529-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | YE | 0.35 | SN | X946M-8 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 2 | BN/WH | 0.35 | SN | X946M-7 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 3 | OG | 0.35 | SN | X372-8 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 4 | BK/GY | 0.35 | SN | X372-9 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 6 | VT | 0.35 | SN | X946M-9 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 7 | GY/WH | 0.35 | SN | X372-2 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 8 | GY | 0.35 | SN | X946M-16 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 9 | GN/WH | 0.35 | SN | X946M-12 | Sumitomo 8100-3623 | | 1099529-00-A | |
