X930F - s-rhd-sop10

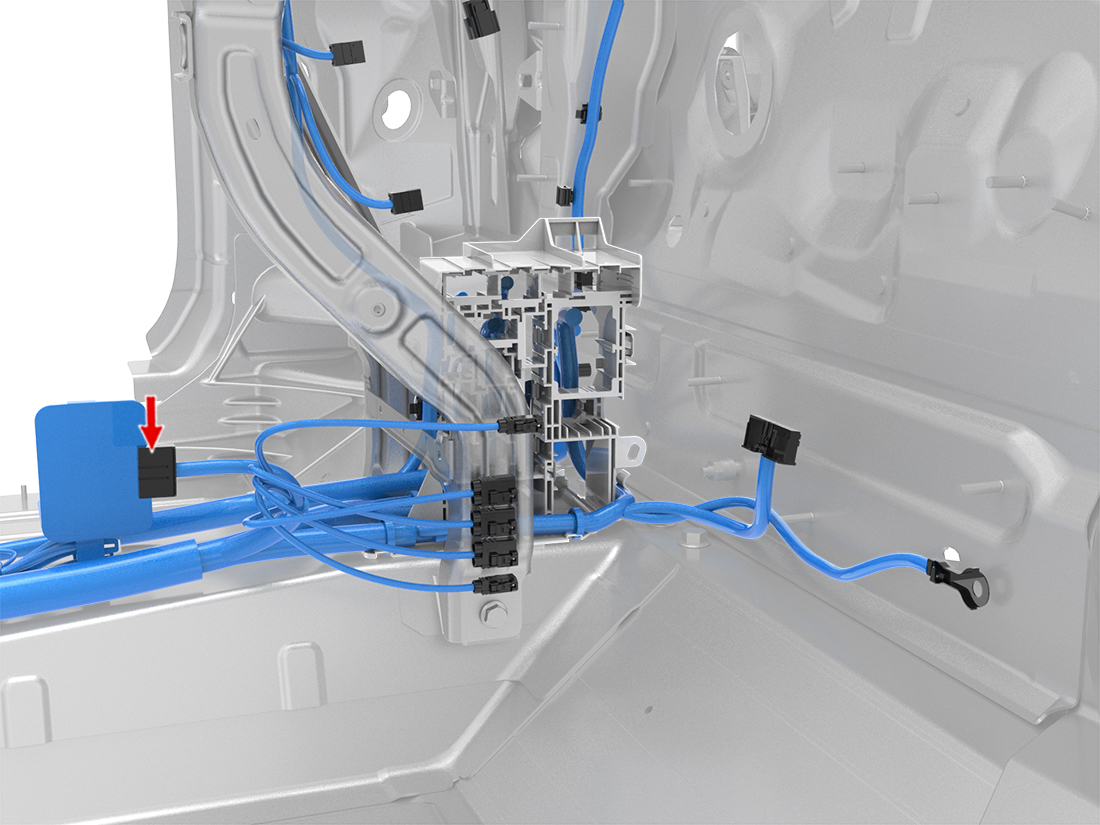

Location:

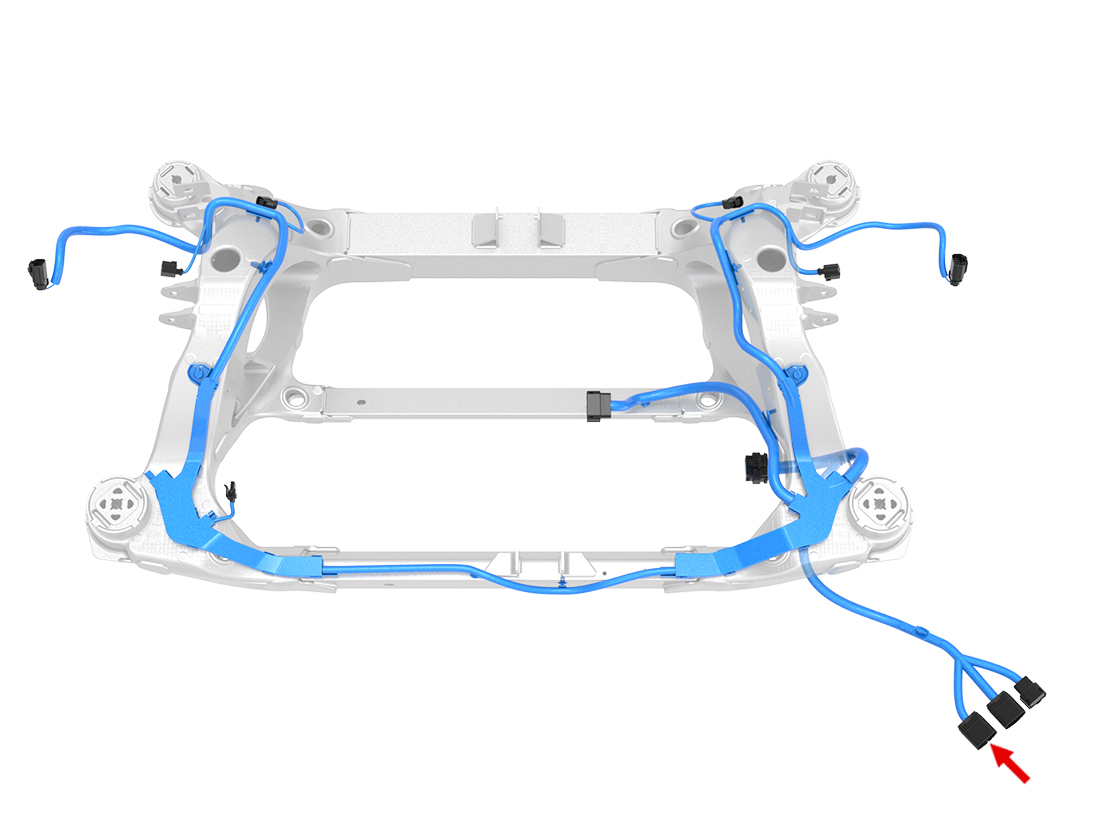

Location:
Connector Detail: FCI 55251400
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: SUMITOMO 6098-5604
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 2 | SN | X103-4 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 1 | GY | 2 | SN | X103A-1 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 2 | WH | 0.75 | SN | X103-2 | FCI 54001625 | Tesla MAT-140-240 | 1102109-00-B | |
| 6 | BU/WH | 0.75 | SN | X104-2 | FCI 54001625 | Tesla MAT-140-240 | 1102109-00-B | |
| 7 | RD/WH | 2 | SN | X104-4 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 7 | RD/WH | 2 | SN | X104A-1 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 8 | BK/WH | 2 | SN | X103-1 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 8 | BK/WH | 2 | SN | X103A-2 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 9 | OG | 0.75 | SN | X103-3 | FCI 54001625 | Tesla MAT-140-240 | 1102109-00-B | |
| 13 | VT/WH | 0.75 | SN | X104-3 | FCI 54001625 | Tesla MAT-140-240 | 1102109-00-B | |
| 14 | RD/VT | 2 | SN | X104-1 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 14 | RD/VT | 2 | SN | X104A-2 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.75 | SN | X021-14 | SUMITOMO 8240-0213 | 1099539-00-A | ||
| 2 | RD/WH | 1 | SN | X021-10 | SUMITOMO 8240-0213 | 1099539-00-A | ||
| 3 | RD | 0.5 | SN | X924M-5 | SUMITOMO 8100-3625 | 1099530-00-A | ||
| 4 | BK | 0.5 | SN | X924M-19 | SUMITOMO 8100-3625 | 1099530-00-A | ||
| 5 | SI | 0.35 | SN | X924M-6 | SUMITOMO 8100-3625 | 1099530-00-A | ||
| 10 | BK/WH | 0.75 | SN | GND_C-1 | SUMITOMO 8240-0213 | 1099539-00-A | ||
| 11 | RD | 1 | SN | X912M-12 | SUMITOMO 8240-0213 | 1099539-00-A | ||
| 18 | BK | 1 | SN | GND_C-1 | SUMITOMO 8240-0213 | 1099539-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.75 | SN | X021-14 | SUMITOMO 8240-0213 | 1099539-00-A | ||
| 2 | RD/WH | 1 | SN | X021-10 | SUMITOMO 8240-0213 | 1099539-00-A | ||
| 3 | RD | 0.5 | SN | X924M-5 | SUMITOMO 8100-3625 | 1099530-00-A | ||
| 4 | BK | 0.5 | SN | X924M-19 | SUMITOMO 8100-3625 | 1099530-00-A | ||
| 5 | SI | 0.35 | SN | X924M-6 | SUMITOMO 8100-3625 | 1099530-00-A | ||
| 10 | BK/WH | 0.75 | SN | GND_C-1 | SUMITOMO 8240-0213 | 1099539-00-A | ||
| 11 | RD | 1 | SN | X912M-12 | SUMITOMO 8240-0213 | 1099539-00-A | ||
| 18 | BK | 1 | SN | GND_C-1 | SUMITOMO 8240-0213 | 1099539-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 2 | SN | X103-4 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 1 | GY | 2 | SN | X103A-1 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 2 | WH | 0.75 | SN | X103-2 | FCI 54001625 | Tesla MAT-140-240 | 1102109-00-B | |
| 6 | BU/WH | 0.75 | SN | X104-2 | FCI 54001625 | Tesla MAT-140-240 | 1102109-00-B | |
| 7 | RD/WH | 2 | SN | X104-4 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 7 | RD/WH | 2 | SN | X104A-1 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 8 | BK/WH | 2 | SN | X103-1 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 8 | BK/WH | 2 | SN | X103A-2 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 9 | OG | 0.75 | SN | X103-3 | FCI 54001625 | Tesla MAT-140-240 | 1102109-00-B | |
| 13 | VT/WH | 0.75 | SN | X104-3 | FCI 54001625 | Tesla MAT-140-240 | 1102109-00-B | |
| 14 | RD/VT | 2 | SN | X104-1 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B | |
| 14 | RD/VT | 2 | SN | X104A-2 | FCI 54001400 | Tesla MAT-170-409 | 1102108-00-B |
