X930M - s-rhd-sop10

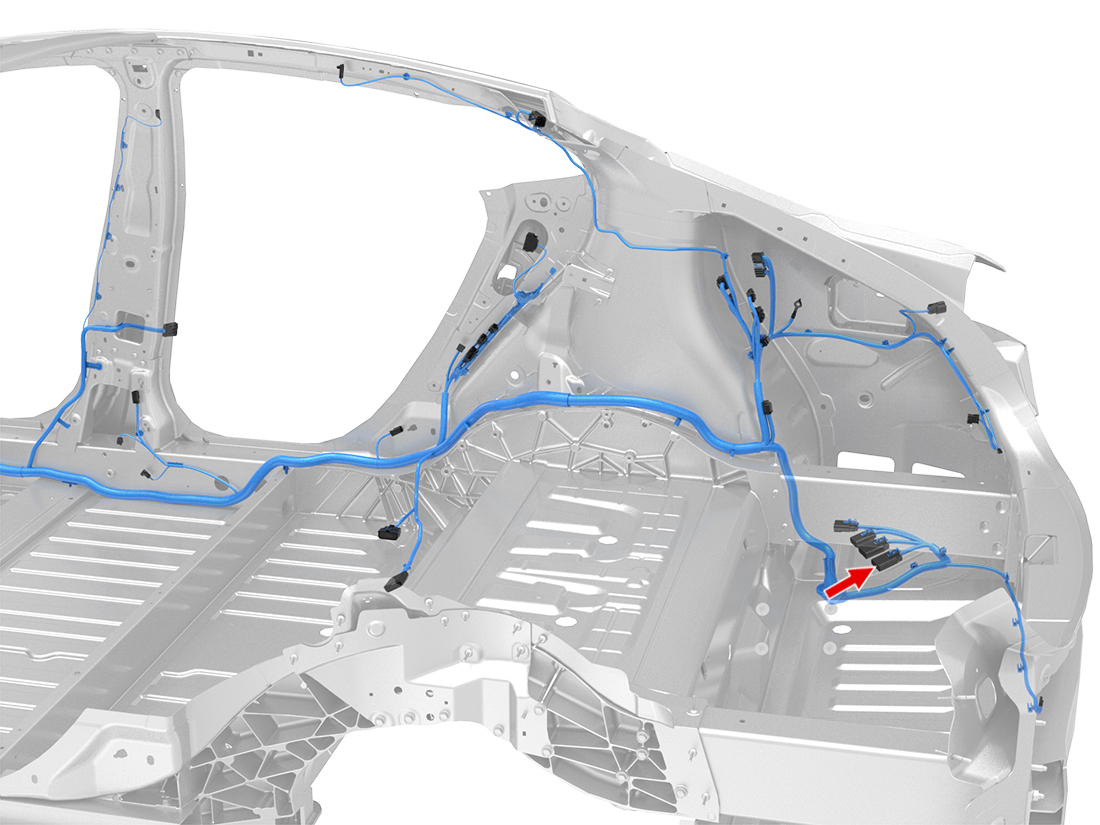

Location:
Location:
Connector Detail: FCI 54251400
Color: BK
Serviceability: Terminal Pigtail
Connector Detail: Sumitomo 6098-5594
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 2 | SN | X101-4 | FCI 54001401 | Tesla MAT-170-409 | 1116845-00-A | |
| 2 | WH | 0.5 | SN | X102-6 | FCI 54002001 | Tesla MAT-140-240 | 1099498-00-A | |
| 6 | BU/WH | 0.5 | SN | X102-5 | FCI 54002001 | Tesla MAT-140-240 | 1099498-00-A | |
| 7 | RD/WH | 2 | SN | X101-5 | FCI 54001401 | Tesla MAT-170-409 | 1116845-00-A | |
| 8 | BK/WH | 2 | SN | X101-3 | FCI 54001401 | Tesla MAT-170-409 | 1116845-00-A | |
| 9 | OG | 0.5 | SN | X102-8 | FCI 54002001 | Tesla MAT-140-240 | 1099498-00-A | |
| 13 | VT/WH | 0.5 | SN | X102-7 | FCI 54002001 | Tesla MAT-140-240 | 1099498-00-A | |
| 14 | RD/VT | 2 | SN | X101-6 | FCI 54001401 | Tesla MAT-170-409 | 1116845-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.75 | SN | X192-4 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 1 | RD | 0.75 | SN | X192S-1 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 3 | RD | 0.35 | SN | X481S-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 3 | RD | 0.5 | SN | X496-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | BK | 0.35 | SN | X481S-3 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | BK | 0.5 | SN | X496-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 5 | SI | 0.35 | SN | X481S-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 5 | SI | 0.35 | SN | Z64-SEC39-L | Sumitomo 8100-3623 | 1099529-00-A | ||
| 10 | BK/WH | 0.75 | SN | X192-3 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 10 | BK/WH | 0.75 | SN | X192S-4 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 11 | RD | 1 | SN | X193-2 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 13 | OR | 0.35 | SN | X059-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 14 | VT | 0.35 | SN | X059-4 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 15 | GY | 0.35 | SN | X059-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 16 | RD/WH | 0.35 | SN | X059-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 18 | BK | 1 | SN | X193-1 | Sumitomo 8230-4924 | 1099536-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | RD | 0.75 | SN | X192-4 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 1 | RD | 0.75 | SN | X192S-1 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 3 | RD | 0.35 | SN | X481S-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 3 | RD | 0.5 | SN | X496-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | BK | 0.35 | SN | X481S-3 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 4 | BK | 0.5 | SN | X496-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 5 | SI | 0.35 | SN | X481S-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 5 | SI | 0.35 | SN | Z64-SEC39-L | Sumitomo 8100-3623 | 1099529-00-A | ||
| 10 | BK/WH | 0.75 | SN | X192-3 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 10 | BK/WH | 0.75 | SN | X192S-4 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 11 | RD | 1 | SN | X193-2 | Sumitomo 8230-4924 | 1099536-00-A | ||
| 13 | OR | 0.35 | SN | X059-6 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 14 | VT | 0.35 | SN | X059-4 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 15 | GY | 0.35 | SN | X059-2 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 16 | RD/WH | 0.35 | SN | X059-1 | Sumitomo 8100-3623 | 1099529-00-A | ||
| 18 | BK | 1 | SN | X193-1 | Sumitomo 8230-4924 | 1099536-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 1 | GY | 2 | SN | X101-4 | FCI 54001401 | Tesla MAT-170-409 | 1116845-00-A | |
| 2 | WH | 0.5 | SN | X102-6 | FCI 54002001 | Tesla MAT-140-240 | 1099498-00-A | |
| 6 | BU/WH | 0.5 | SN | X102-5 | FCI 54002001 | Tesla MAT-140-240 | 1099498-00-A | |
| 7 | RD/WH | 2 | SN | X101-5 | FCI 54001401 | Tesla MAT-170-409 | 1116845-00-A | |
| 8 | BK/WH | 2 | SN | X101-3 | FCI 54001401 | Tesla MAT-170-409 | 1116845-00-A | |
| 9 | OG | 0.5 | SN | X102-8 | FCI 54002001 | Tesla MAT-140-240 | 1099498-00-A | |
| 13 | VT/WH | 0.5 | SN | X102-7 | FCI 54002001 | Tesla MAT-140-240 | 1099498-00-A | |
| 14 | RD/VT | 2 | SN | X101-6 | FCI 54001401 | Tesla MAT-170-409 | 1116845-00-A |
