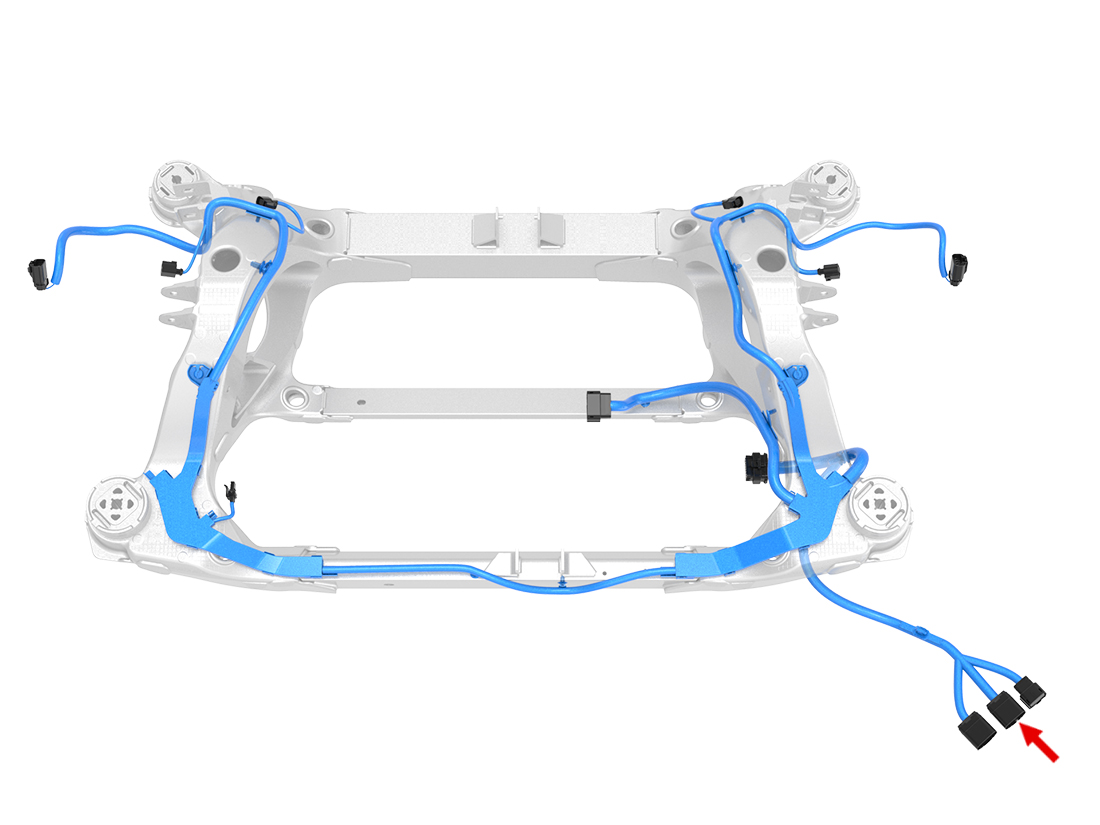

X931F - s-rhd-sop10

Location:

Connector Detail: FCI 55251403

Color: GN

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal	Seal	Service Part
1	RD/BK	0.75	SN	X250-1	FCI 54001800	Tesla MAT-170-409	1102111-00-B
1	RD/BK	0.75	SN	X251-10	FCI 54001800	Tesla MAT-170-409	1102111-00-B
2	OG	0.75	SN	X250-12	FCI 54001625	Tesla MAT-140-240	1102109-00-B
2	OG	0.5	SN	X251-5	FCI 54002000	Tesla MAT-140-240	1099497-00-A
3	GY	0.75	SN	X250-13	FCI 54001625	Tesla MAT-140-240	1102109-00-B
3	GY	0.5	SN	X251-4	FCI 54002000	Tesla MAT-140-240	1099497-00-A
4	GN	0.75	SN	X250-15	FCI 54001625	Tesla MAT-140-240	1102109-00-B
4	GN	0.5	SN	X251-7	FCI 54002000	Tesla MAT-140-240	1099497-00-A
5	RD/YE	0.75	SN	X250-7	FCI 54001625	Tesla MAT-140-240	1102109-00-B
5	RD/YE	0.5	SN	X251-3	FCI 54002000	Tesla MAT-140-240	1099497-00-A
6	YE	0.75	SN	X250-8	FCI 54001625	Tesla MAT-140-240	1102109-00-B
6	YE	0.5	SN	X251-11	FCI 54002000	Tesla MAT-140-240	1099497-00-A
7	BK	0.75	SN	X250-11	FCI 54001800	Tesla MAT-170-409	1102111-00-B
7	BK	0.75	SN	X251-19	FCI 54001800	Tesla MAT-170-409	1102111-00-B
8	RD/BU	0.75	SN	X250-23	FCI 54001800	Tesla MAT-170-409	1102111-00-B
8	RD/BU	0.75	SN	X251-13	FCI 54001800	Tesla MAT-170-409	1102111-00-B
9	BU/WH	0.75	SN	X250-21	FCI 54001625	Tesla MAT-140-240	1102109-00-B
9	BU/WH	0.5	SN	X251-14	FCI 54002000	Tesla MAT-140-240	1099497-00-A
10	BU	0.75	SN	X250-14	FCI 54001625	Tesla MAT-140-240	1102109-00-B
10	BU	0.5	SN	X251-12	FCI 54002000	Tesla MAT-140-240	1099497-00-A
11	BK/VT	0.75	SN	X250-22	FCI 54001625	Tesla MAT-140-240	1102109-00-B
11	BK/VT	0.5	SN	X251-6	FCI 54002000	Tesla MAT-140-240	1099497-00-A
12	GN/WH	0.75	SN	X250-3	FCI 54001625	Tesla MAT-140-240	1102109-00-B
12	GN/WH	0.5	SN	X251-20	FCI 54002000	Tesla MAT-140-240	1099497-00-A
13	WH	0.75	SN	X250-2	FCI 54001625	Tesla MAT-140-240	1102109-00-B
13	WH	0.5	SN	X251-17	FCI 54002000	Tesla MAT-140-240	1099497-00-A
14	VT/WH	0.75	SN	X250-6	FCI 54001800	Tesla MAT-170-409	1102111-00-B
14	VT/WH	0.75	SN	X251-18	FCI 54001800	Tesla MAT-170-409	1102111-00-B

Cavity	Color	Size	Plate	Destination	Terminal	Seal	Service Part
1	RD/BK	0.75	SN	X250-1	FCI 54001800	Tesla MAT-170-409	1102111-00-B
1	RD/BK	0.75	SN	X251-10	FCI 54001800	Tesla MAT-170-409	1102111-00-B
2	OG	0.75	SN	X250-12	FCI 54001625	Tesla MAT-140-240	1102109-00-B
2	OG	0.5	SN	X251-5	FCI 54002000	Tesla MAT-140-240	1099497-00-A
3	GY	0.75	SN	X250-13	FCI 54001625	Tesla MAT-140-240	1102109-00-B
3	GY	0.5	SN	X251-4	FCI 54002000	Tesla MAT-140-240	1099497-00-A
4	GN	0.75	SN	X250-15	FCI 54001625	Tesla MAT-140-240	1102109-00-B
4	GN	0.5	SN	X251-7	FCI 54002000	Tesla MAT-140-240	1099497-00-A
5	RD/YE	0.75	SN	X250-7	FCI 54001625	Tesla MAT-140-240	1102109-00-B
5	RD/YE	0.5	SN	X251-3	FCI 54002000	Tesla MAT-140-240	1099497-00-A
6	YE	0.75	SN	X250-8	FCI 54001625	Tesla MAT-140-240	1102109-00-B
6	YE	0.5	SN	X251-11	FCI 54002000	Tesla MAT-140-240	1099497-00-A
7	BK	0.75	SN	X250-11	FCI 54001800	Tesla MAT-170-409	1102111-00-B
7	BK	0.75	SN	X251-19	FCI 54001800	Tesla MAT-170-409	1102111-00-B
8	RD/BU	0.75	SN	X250-23	FCI 54001800	Tesla MAT-170-409	1102111-00-B
8	RD/BU	0.75	SN	X251-13	FCI 54001800	Tesla MAT-170-409	1102111-00-B
9	BU/WH	0.75	SN	X250-21	FCI 54001625	Tesla MAT-140-240	1102109-00-B
9	BU/WH	0.5	SN	X251-14	FCI 54002000	Tesla MAT-140-240	1099497-00-A
10	BU	0.75	SN	X250-14	FCI 54001625	Tesla MAT-140-240	1102109-00-B
10	BU	0.5	SN	X251-12	FCI 54002000	Tesla MAT-140-240	1099497-00-A
11	BK/VT	0.75	SN	X250-22	FCI 54001625	Tesla MAT-140-240	1102109-00-B
11	BK/VT	0.5	SN	X251-6	FCI 54002000	Tesla MAT-140-240	1099497-00-A
12	GN/WH	0.75	SN	X250-3	FCI 54001625	Tesla MAT-140-240	1102109-00-B
12	GN/WH	0.5	SN	X251-20	FCI 54002000	Tesla MAT-140-240	1099497-00-A
13	WH	0.75	SN	X250-2	FCI 54001625	Tesla MAT-140-240	1102109-00-B
13	WH	0.5	SN	X251-17	FCI 54002000	Tesla MAT-140-240	1099497-00-A
14	VT/WH	0.75	SN	X250-6	FCI 54001800	Tesla MAT-170-409	1102111-00-B
14	VT/WH	0.75	SN	X251-18	FCI 54001800	Tesla MAT-170-409	1102111-00-B
