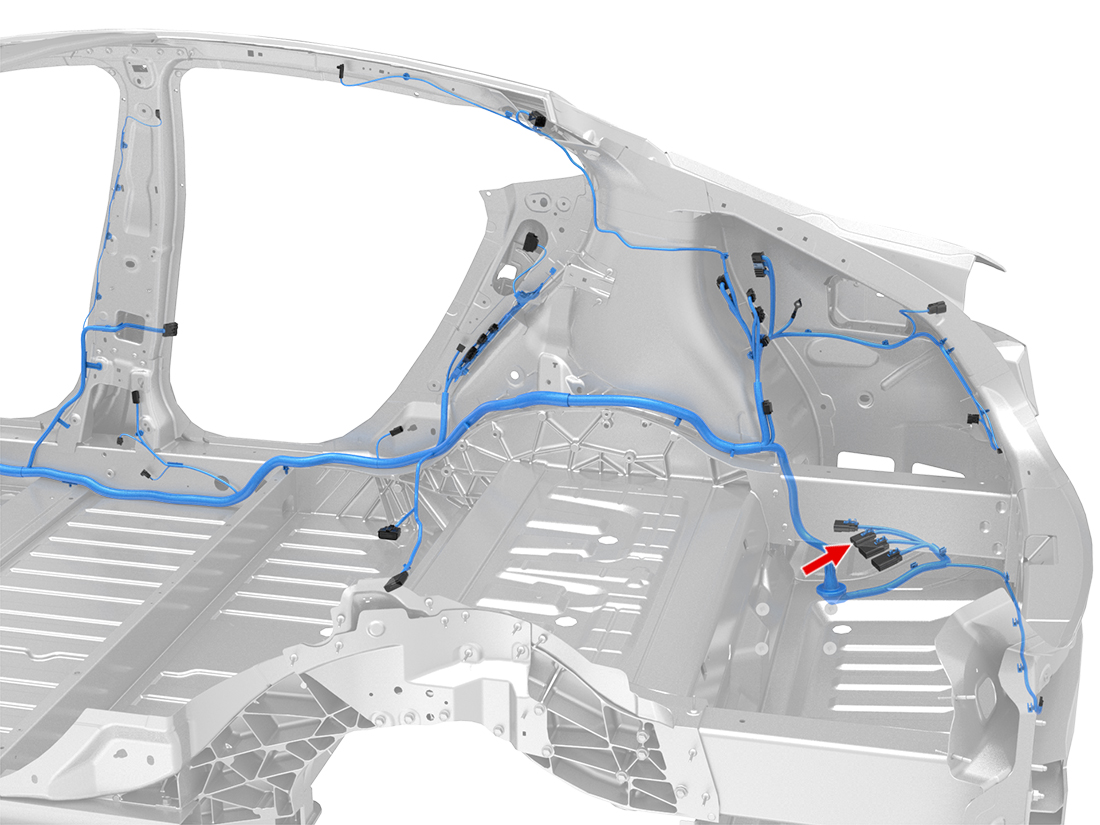

Location:
Connector Detail: Molex 33482-1261
Color: Dark Gray
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GN | 0.5 | AU | X979F-2 | Molex 33011-0008 | Tesla MAT-120-240 | 1099514-00-A | 1116485-00-A |
| 2 | VT | 0.5 | AU | X979F-3 | Molex 33011-0008 | Tesla MAT-120-240 | 1099514-00-A | 1116485-00-A |
| 3 | BK | 0.5 | AU | X979F-9 | Molex 33011-0008 | Tesla MAT-120-240 | 1099514-00-A | 1116485-00-A |
| 4 | RD/WH | 0.5 | SN | X779-2 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 5 | GN/WH | 0.5 | SN | X979F-1 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 6 | GN | 0.5 | SN | X979F-8 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 7 | RD/VT | 0.5 | SN | X979F-4 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 7 | RD/VT | 0.5 | SN | X989F-23 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 8 | BN | 0.5 | SN | X979F-5 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 8 | BN | 0.5 | SN | X989F-24 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 9 | GY/WH | 0.5 | SN | X979F-10 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 9 | GY/WH | 0.5 | SN | X989F-25 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 10 | RD | 0.5 | SN | X779-13 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 11 | BK/WH | 0.5 | SN | X979F-6 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 12 | WH | 0.5 | SN | X979F-11 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GN | 0.5 | AU | X979F-2 | Molex 33011-0008 | Tesla MAT-120-240 | 1099514-00-A | 1116485-00-A |
| 2 | VT | 0.5 | AU | X979F-3 | Molex 33011-0008 | Tesla MAT-120-240 | 1099514-00-A | 1116485-00-A |
| 3 | BK | 0.5 | AU | X979F-9 | Molex 33011-0008 | Tesla MAT-120-240 | 1099514-00-A | 1116485-00-A |
| 4 | RD/WH | 0.5 | SN | X779-2 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 5 | GN/WH | 0.5 | SN | X979F-1 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 6 | GN | 0.5 | SN | X979F-8 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 7 | RD/VT | 0.5 | SN | X979F-4 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 7 | RD/VT | 0.5 | SN | X989F-23 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 8 | BN | 0.5 | SN | X979F-5 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 8 | BN | 0.5 | SN | X989F-24 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 9 | GY/WH | 0.5 | SN | X979F-10 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 9 | GY/WH | 0.5 | SN | X989F-25 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 10 | RD | 0.5 | SN | X779-13 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 11 | BK/WH | 0.5 | SN | X979F-6 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
| 12 | WH | 0.5 | SN | X979F-11 | Molex 33000-0004 | Tesla MAT-120-240 | 1099511-00-A | 1116485-00-A |
