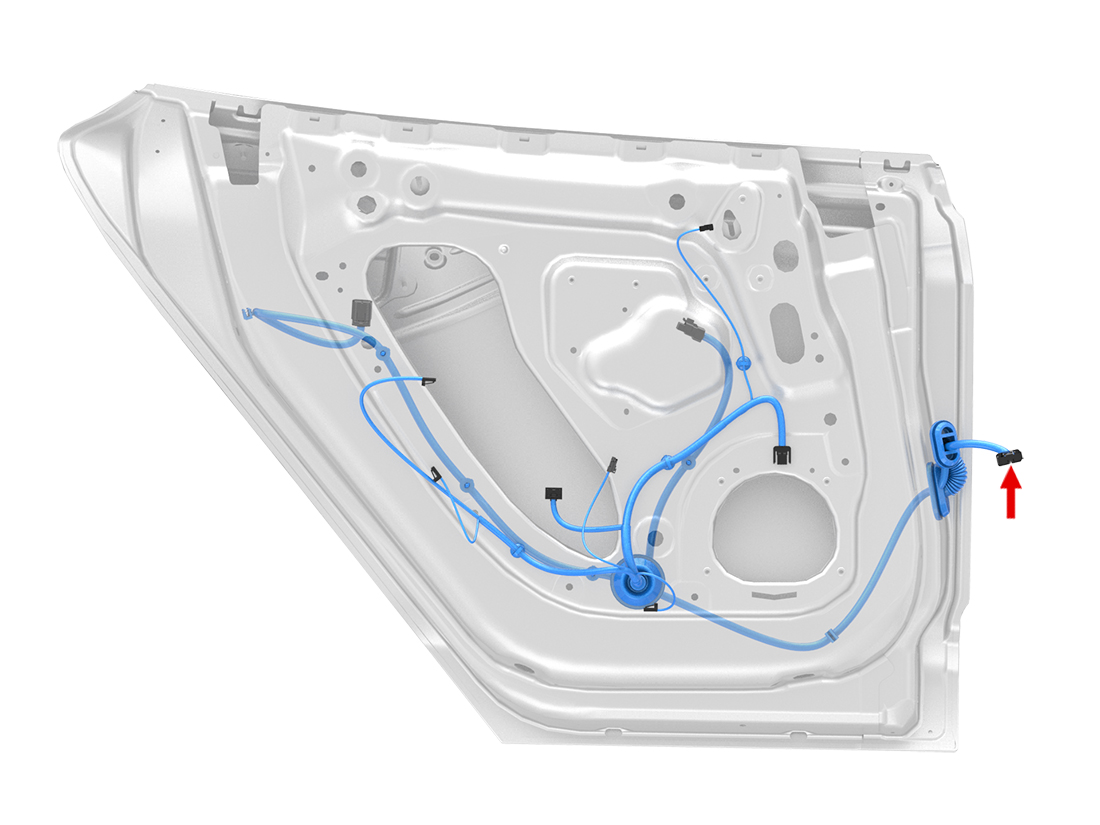

Location:
Connector Detail: Sumitomo 6098-5609
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GN | 1.5 | SN | X366-3 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 2 | BU | 0.35 | SN | X359-11 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 4 | WH | 0.5 | SN | Z68-DCL12-R | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | RD/BU | 0.35 | SN | X359-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | RD/WH | 0.35 | SN | X361-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | VT | 0.35 | SN | X364-1 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 10 | RD/WH | 1.5 | SN | X411-1 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 11 | BK | 2 | SN | Z75-GDH14-R | Sumitomo 8240-0214 | | 1099540-00-A | |
| 12 | GN/WH | 0.35 | SN | Z71-DCL24-R | Sumitomo 8240-0215 | | 1099541-00-A | |
| 16 | GY | 0.35 | SN | X365-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | VT/WH | 0.5 | SN | X366-2 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 18 | GY | 1.5 | SN | X411-2 | Sumitomo 8240-0214 | | 1099540-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GN | 1.5 | SN | X366-3 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 2 | BU | 0.35 | SN | X359-11 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 4 | WH | 0.5 | SN | Z68-DCL12-R | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | RD/BU | 0.35 | SN | X359-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | RD/WH | 0.35 | SN | X361-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | VT | 0.35 | SN | X364-1 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 10 | RD/WH | 1.5 | SN | X411-1 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 11 | BK | 2 | SN | Z75-GDH14-R | Sumitomo 8240-0214 | | 1099540-00-A | |
| 12 | GN/WH | 0.35 | SN | Z71-DCL24-R | Sumitomo 8240-0215 | | 1099541-00-A | |
| 16 | GY | 0.35 | SN | X365-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | VT/WH | 0.5 | SN | X366-2 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 18 | GY | 1.5 | SN | X411-2 | Sumitomo 8240-0214 | | 1099540-00-A | |
