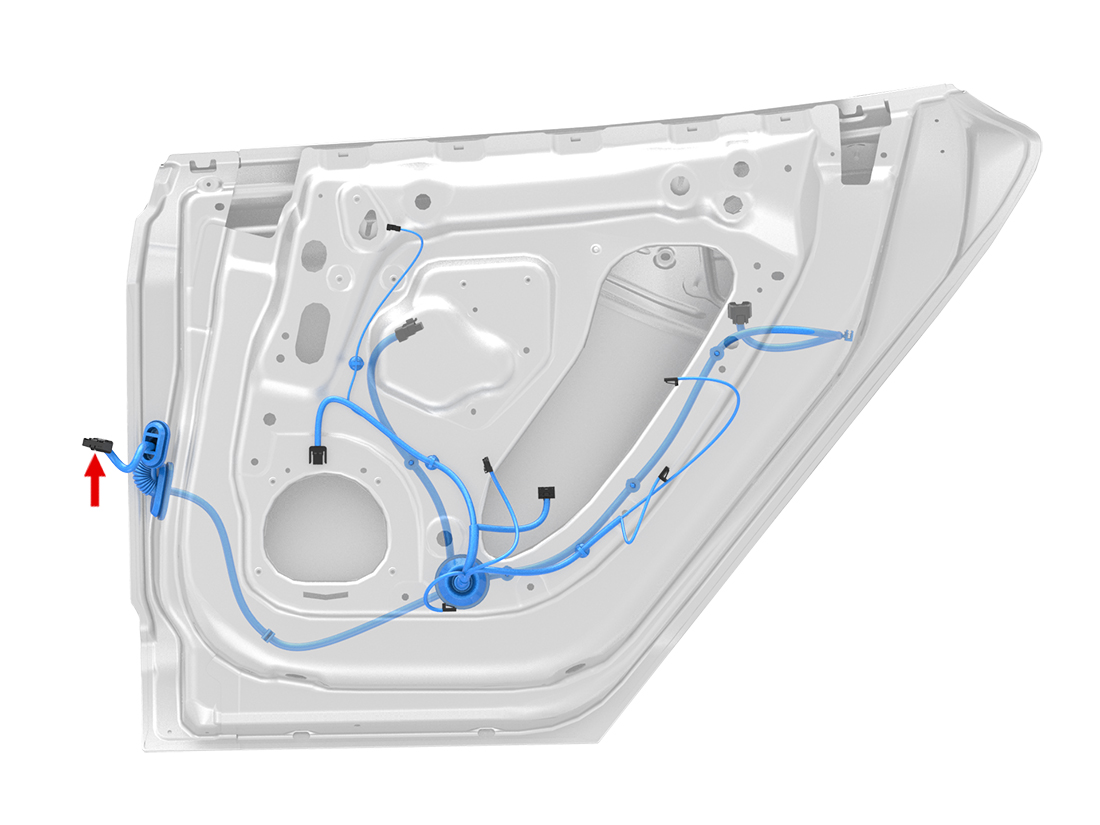

Location:
Connector Detail: Sumitomo 6098-5609
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GN | 1.5 | SN | X377-3 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 2 | BU | 0.35 | SN | X369-11 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 4 | WH | 0.5 | SN | Z88-DCR12-R | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | RD/BU | 0.35 | SN | X369-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | RD/WH | 0.35 | SN | X371-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | VT | 0.35 | SN | X375-1 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 10 | RD | 1.5 | SN | X412-1 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 11 | BK | 2 | SN | Z95-GDG01-R | Sumitomo 8240-0214 | | 1099540-00-A | |
| 12 | GN/WH | 0.35 | SN | Z91-DCR24-R | Sumitomo 8240-0215 | | 1099541-00-A | |
| 16 | GY | 0.35 | SN | X376-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | YE | 0.5 | SN | X377-2 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 18 | RD/BK | 1.5 | SN | X412-2 | Sumitomo 8240-0214 | | 1099540-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GN | 1.5 | SN | X377-3 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 2 | BU | 0.35 | SN | X369-11 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 4 | WH | 0.5 | SN | Z88-DCR12-R | Sumitomo 8100-3625 | | 1099530-00-A | |
| 7 | RD/BU | 0.35 | SN | X369-4 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 8 | RD/WH | 0.35 | SN | X371-1 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 9 | VT | 0.35 | SN | X375-1 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 10 | RD | 1.5 | SN | X412-1 | Sumitomo 8240-0214 | | 1099540-00-A | |
| 11 | BK | 2 | SN | Z95-GDG01-R | Sumitomo 8240-0214 | | 1099540-00-A | |
| 12 | GN/WH | 0.35 | SN | Z91-DCR24-R | Sumitomo 8240-0215 | | 1099541-00-A | |
| 16 | GY | 0.35 | SN | X376-3 | Sumitomo 8100-3625 | | 1099530-00-A | |
| 17 | YE | 0.5 | SN | X377-2 | Sumitomo 8240-0215 | | 1099541-00-A | |
| 18 | RD/BK | 1.5 | SN | X412-2 | Sumitomo 8240-0214 | | 1099540-00-A | |
