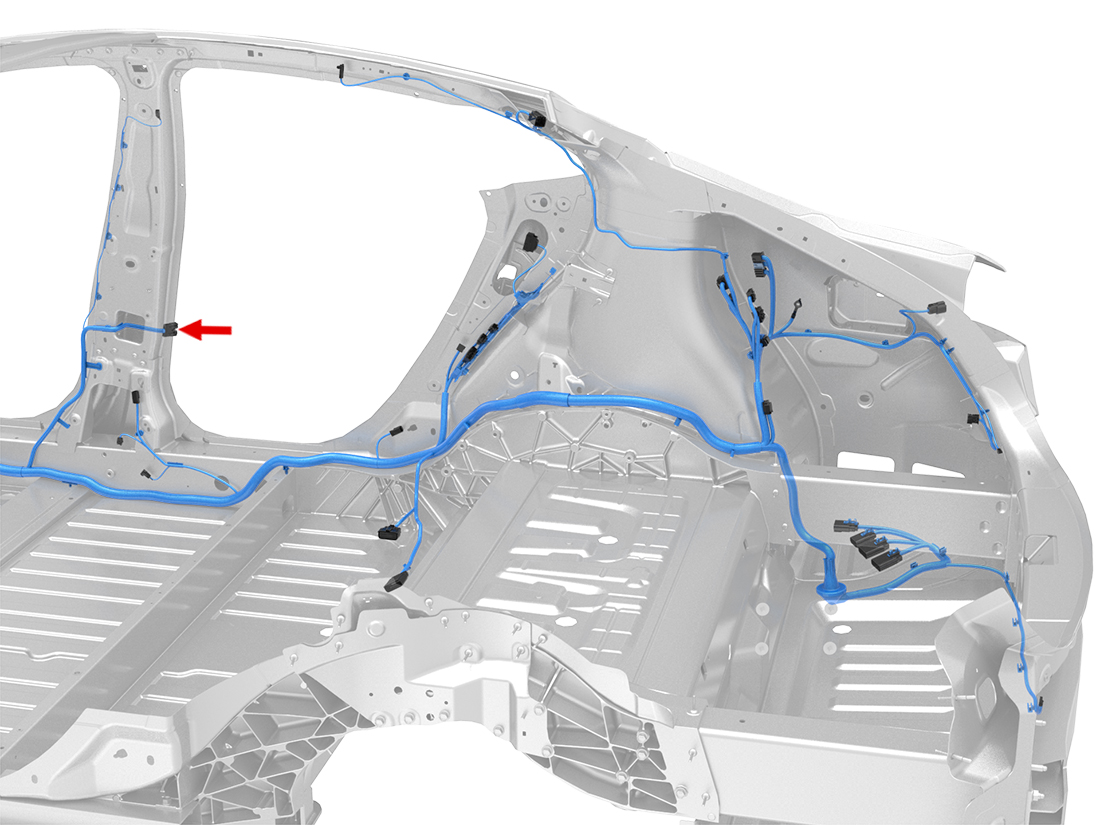

Location:
Connector Detail: Sumitomo 6098-5600
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GN | 1.5 | SN | X574-7 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 2 | BU | 0.35 | SN | X573-3 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 4 | WH | 0.35 | SN | X989F-9 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 7 | BN/WH | 0.35 | SN | X929M-2 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 8 | YE | 0.35 | SN | X929M-1 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 9 | VT | 0.35 | SN | X929M-6 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 10 | RD | 1.5 | SN | X970M-2 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 11 | BK | 2 | SN | G700-1 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 12 | GN/WH | 0.35 | SN | X929M-9 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 16 | GY | 0.35 | SN | X929M-8 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 17 | YE | 0.35 | SN | Z84-SEC14-L | Sumitomo 8230-4925 | | 1099537-00-A | |
| 18 | RD/BK | 1.5 | SN | X970M-9 | Sumitomo 8230-4923 | | 1099534-00-A | |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|
| 1 | RD/GN | 1.5 | SN | X574-7 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 2 | BU | 0.35 | SN | X573-3 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 4 | WH | 0.35 | SN | X989F-9 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 7 | BN/WH | 0.35 | SN | X929M-2 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 8 | YE | 0.35 | SN | X929M-1 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 9 | VT | 0.35 | SN | X929M-6 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 10 | RD | 1.5 | SN | X970M-2 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 11 | BK | 2 | SN | G700-1 | Sumitomo 8230-4923 | | 1099534-00-A | |
| 12 | GN/WH | 0.35 | SN | X929M-9 | Sumitomo 8230-4925 | | 1099537-00-A | |
| 16 | GY | 0.35 | SN | X929M-8 | Sumitomo 8100-3623 | | 1099529-00-A | |
| 17 | YE | 0.35 | SN | Z84-SEC14-L | Sumitomo 8230-4925 | | 1099537-00-A | |
| 18 | RD/BK | 1.5 | SN | X970M-9 | Sumitomo 8230-4923 | | 1099534-00-A | |
